Installing a Fan Module
Procedure
Step 1 Pinch the fan module release handle and slide the module out.
You should replace the fan module within 5 minutes to avoid overheating the switch.
Caution
Step 2 Install the fan module in the fan slot, and firmly push it into the slot, applying pressure to the end of the
module, not the extraction handles. When correctly inserted, the fan module is flush with the switch rear panel.
When the fan is operating, a green LED is on in the top left corner of the fan.
Do not reach into a vacant slot when installing or removing a module. Exposed circuitry is an
energy hazard. Statement 206
Warning

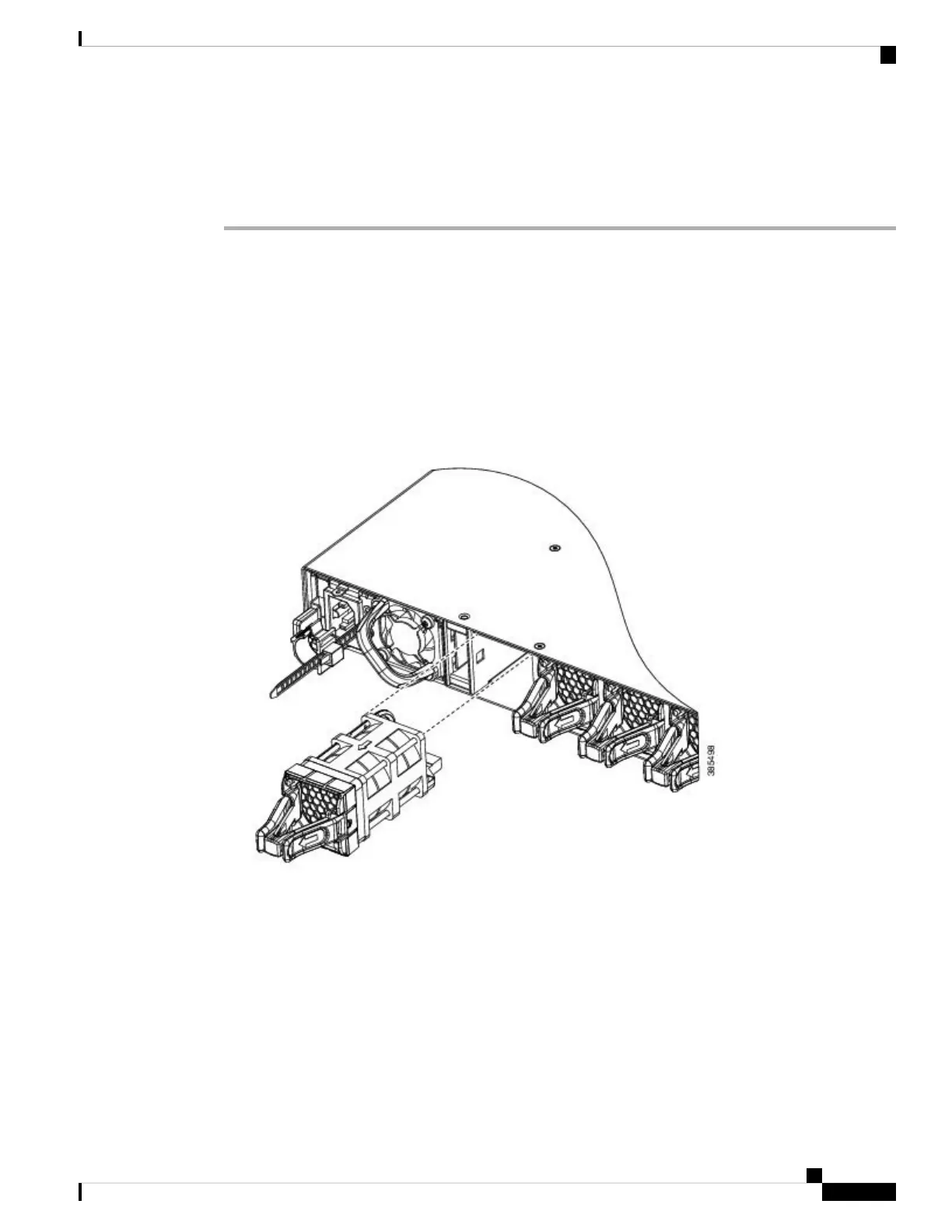

Figure 57: Installing the Fan Module on a Cisco Catalyst 9500 Series Switch
Cisco Catalyst 9500 Series Switches Hardware Installation Guide
83
Installing Field Replaceable Units
Installing a Fan Module
