Front Panel

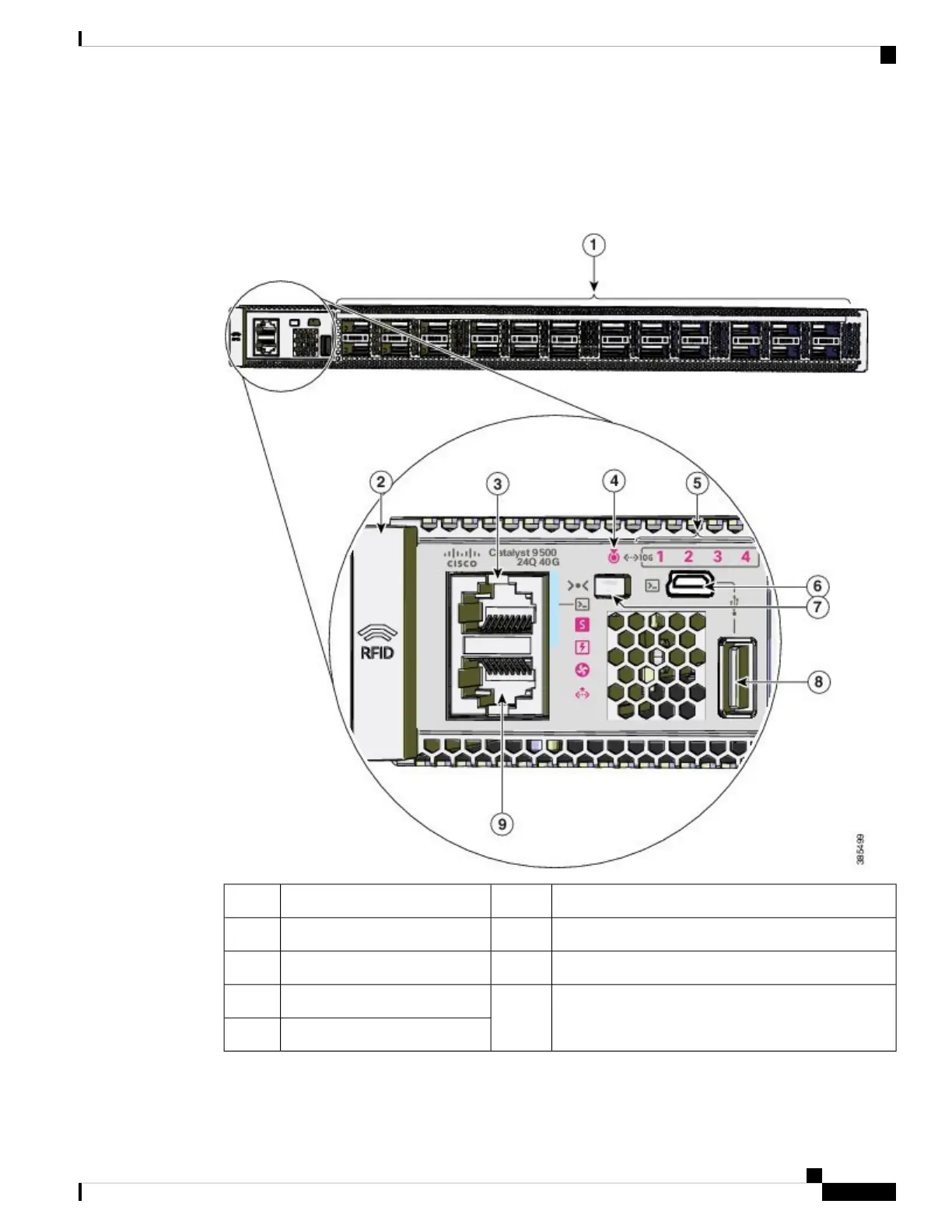

Figure 1: Front Panel of a 24-Port Cisco Catalyst 9500 Switch
USB mini Type B console port624 40G QSFP ports1
Mode button7RFID2
USB 2.0 host port8Console port (RJ-45 Serial)3
Ethernet management RJ-45 port9Blue beacon LED4
10G Status LEDs5
Cisco Catalyst 9500 Series Switches Hardware Installation Guide
7
Product Overview
Front Panel
