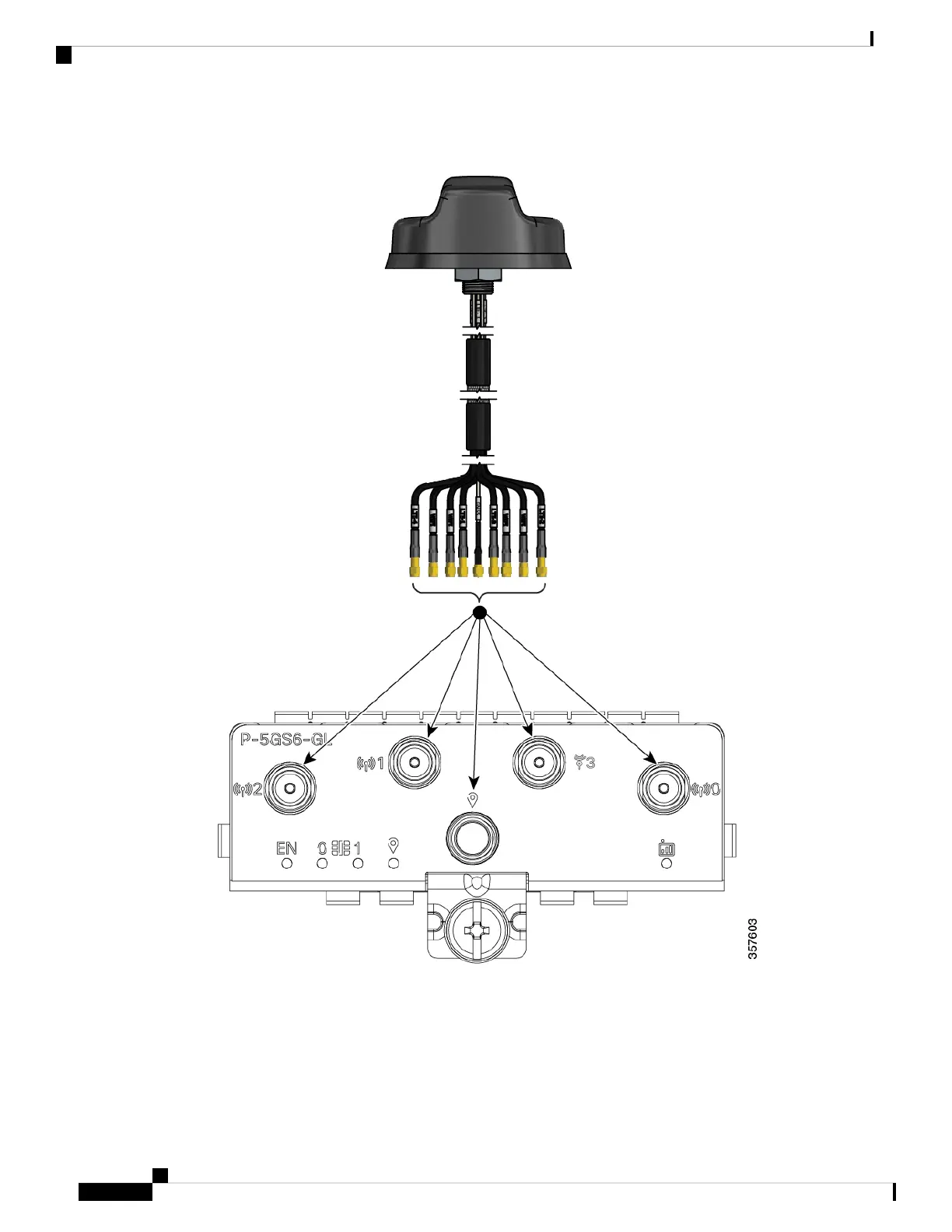

Figure 19: Attaching 5G NR Antenna (5G-ANTM-O4-B) to P-5GS6-GL PIM
1. Attach each SMA cable to the ports as indicated in the table mappings.
2. Ensure that you tighten and secure each SMA cable into the SMA connector on the PIM.
Cisco Catalyst IR1800 Rugged Series Router Hardware Installation Guide
56
5G Sub-6 GHz Pluggable Interface Module
Attaching an Antenna
