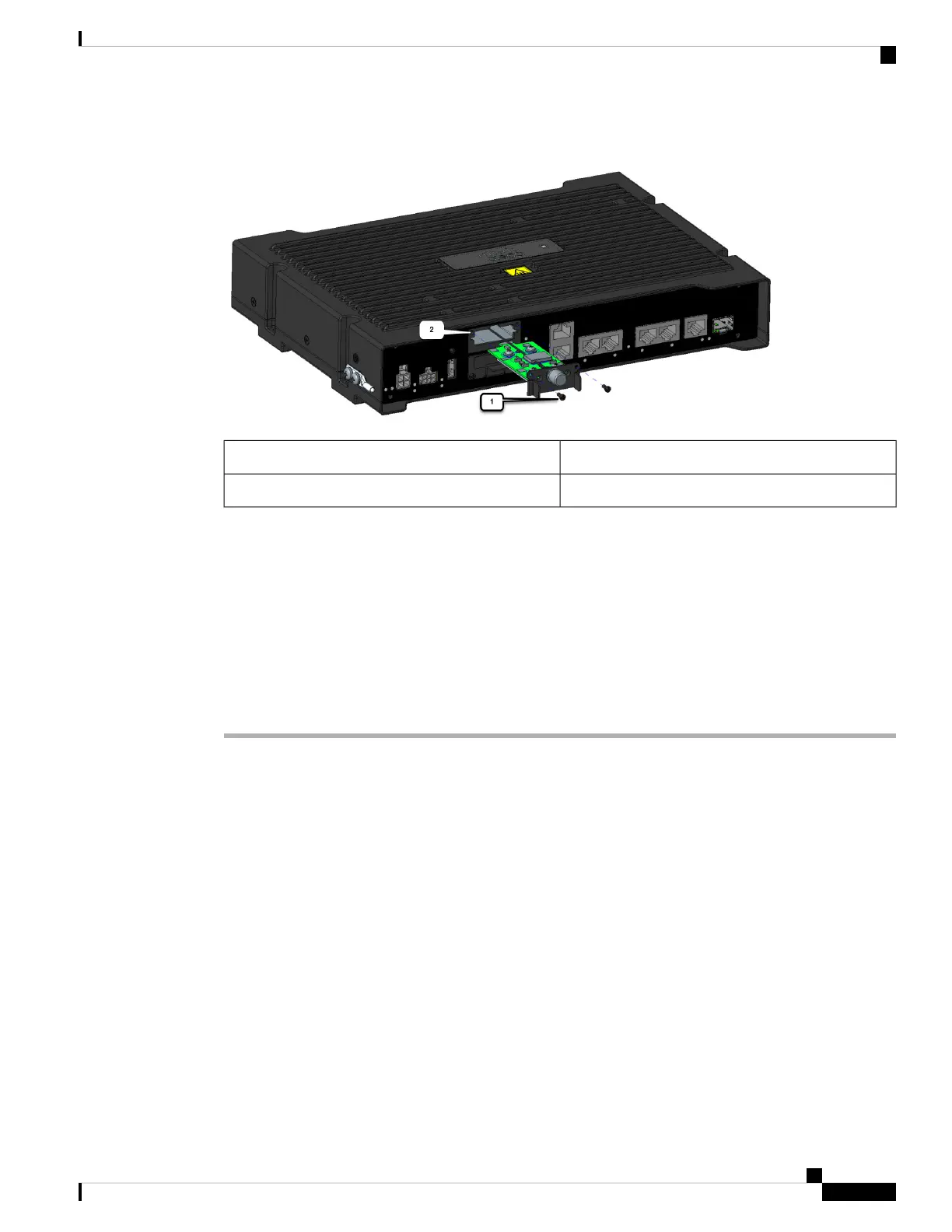

Figure 28: GPS Module Insertion
Screws1
Screw holes2
Step 3 Align the previously removed screws (1), with the screw holes (2), and tighten to 2-3 in-lb (0.2-0.3 Newton
meter).
Step 4 The installation is now complete.
Step 5 To remove the module, reverse the steps:
a. Power off the device.
b. Remove the screws.
c. Pull out the module.
