CHAPTER 5
Pluggable Interface Modules
This chapter contains the following sections
• Introduction to Installing Pluggable Interface Modules, on page 45
• Installing a PIM, on page 46
Introduction to Installing Pluggable Interface Modules
This section describes the equipment and the procedures for successfully installing the Cisco Pluggable
Interface Modules (PIM).
The highlights of the LTE PIM are:
• All cellular interfaces are supported through a PIM
• We recommend that you use Industrial Temp micro SIMs, 3FF size, that are rated from -40C to +105C
• To ensure a reliable contact to the SIM socket, gold-plated SIM cards must be used.

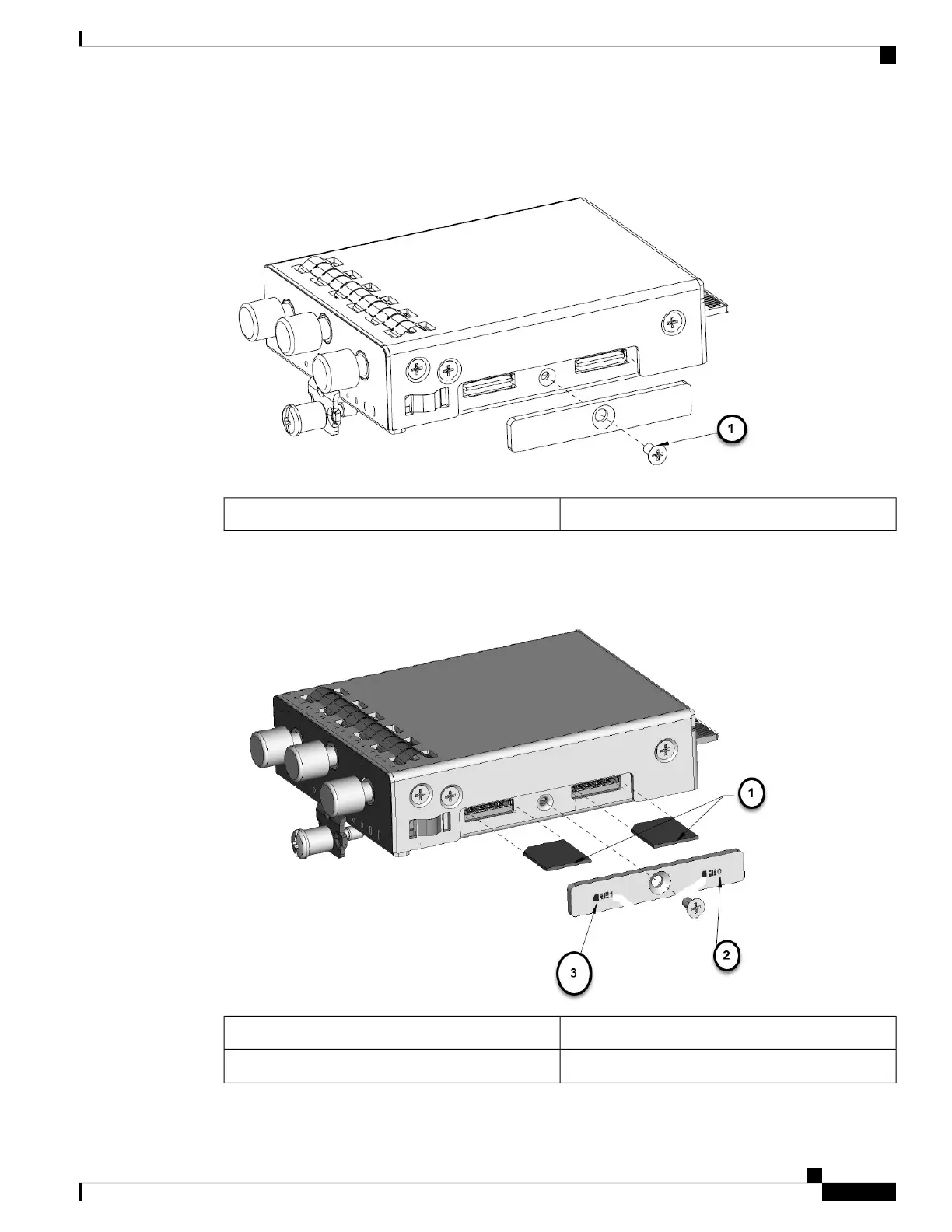

The following images show examples of a pluggable module. In this case, the LTE pluggable module.
Figure 11: LTE Pluggable Module (Front)
LTE-Main SMA1
GNSS SMA2
Micro USB Debug Port3
LTE-Div SMA4
Cisco Catalyst IR1800 Rugged Series Router Hardware Installation Guide
45
