Cisco Catalyst Wireless 9166D1 User Manual

Tightening ValuesQuantityMounting Bracket KitItem
#
—1M8 x 40 mm Hex bolt1
—1Pole or wall mounting flange2
—1M8 Washer (external-tooth)3
5.6 to 5.9 lb-ft (7.6 to 8.0 Nm)1M8 Flanged lock nut4
—1Access point bracket plate5
—1AIR-AP-BRACKET-2
Not included in this kit.
6
Snug, hand tight4M4 X 10 mm screw with washer7

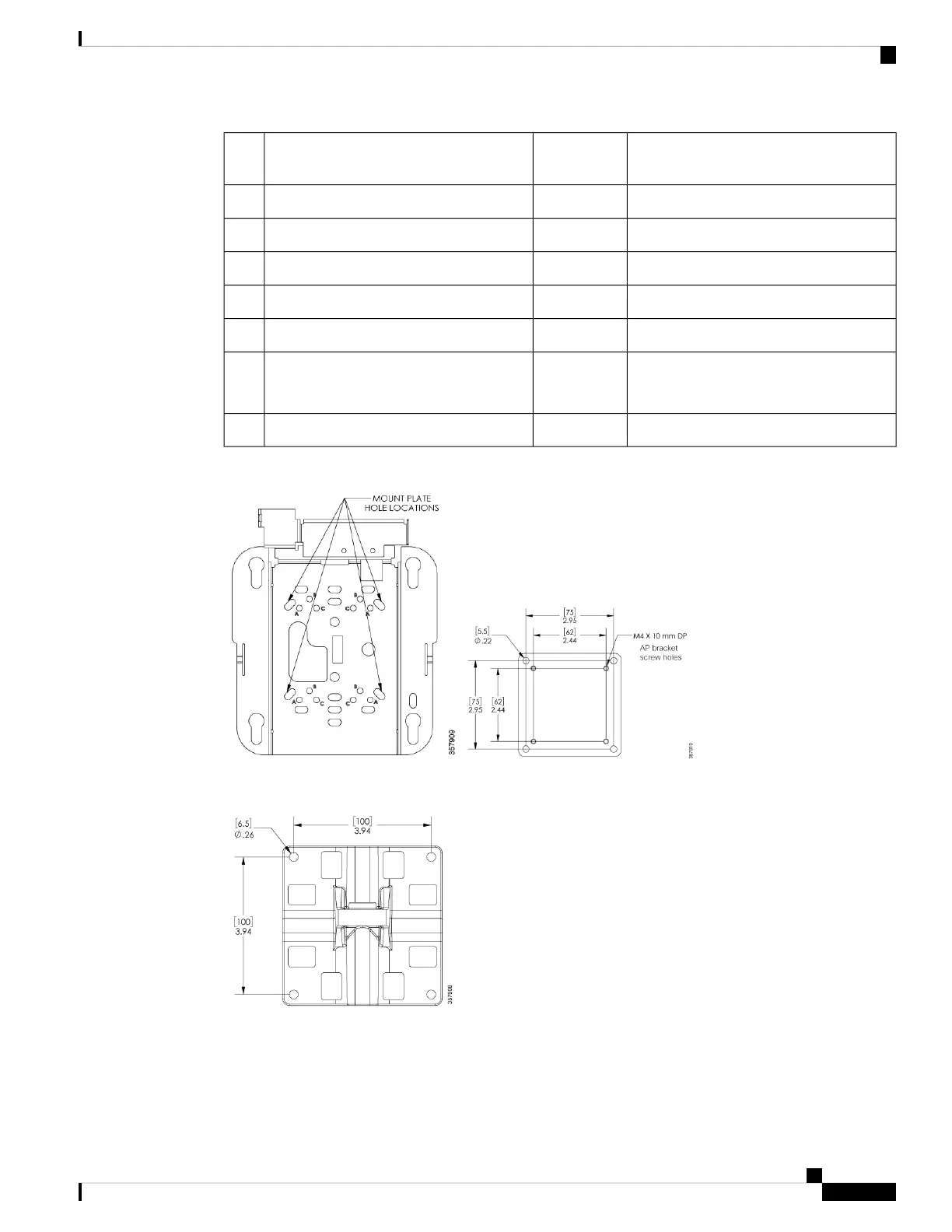

Figure 24: AIR-AP-BRACKET-2 Attachment to Access Point Bracket Plate
Figure 25: Wall Flange Mounting Holes
Cisco Catalyst Wireless 9166D1 Wi-Fi 6E Access Point Hardware Installation Guide
27
Installation Overview
Mounting the Access Point Using Single Axis Articulating Bracket
