Procedure
Step 1
Remove the rack-mount brackets installed at the front of the chassis by unscrewing the M5 undercut flat-head screws using
a #2 Phillips torque screwdriver.
Step 2
Locate the threaded holes at the middle on the side of the chassis that align with the holes in the rack-mount bracket.
Step 3
Install the 10 M5 undercut flat-head screws to secure each rack-mounting bracket to the chassis. Five screws must be
installed on each end of the rack-mounting bracket.
Step 4
Repeat the above steps on the other side of the chassis.

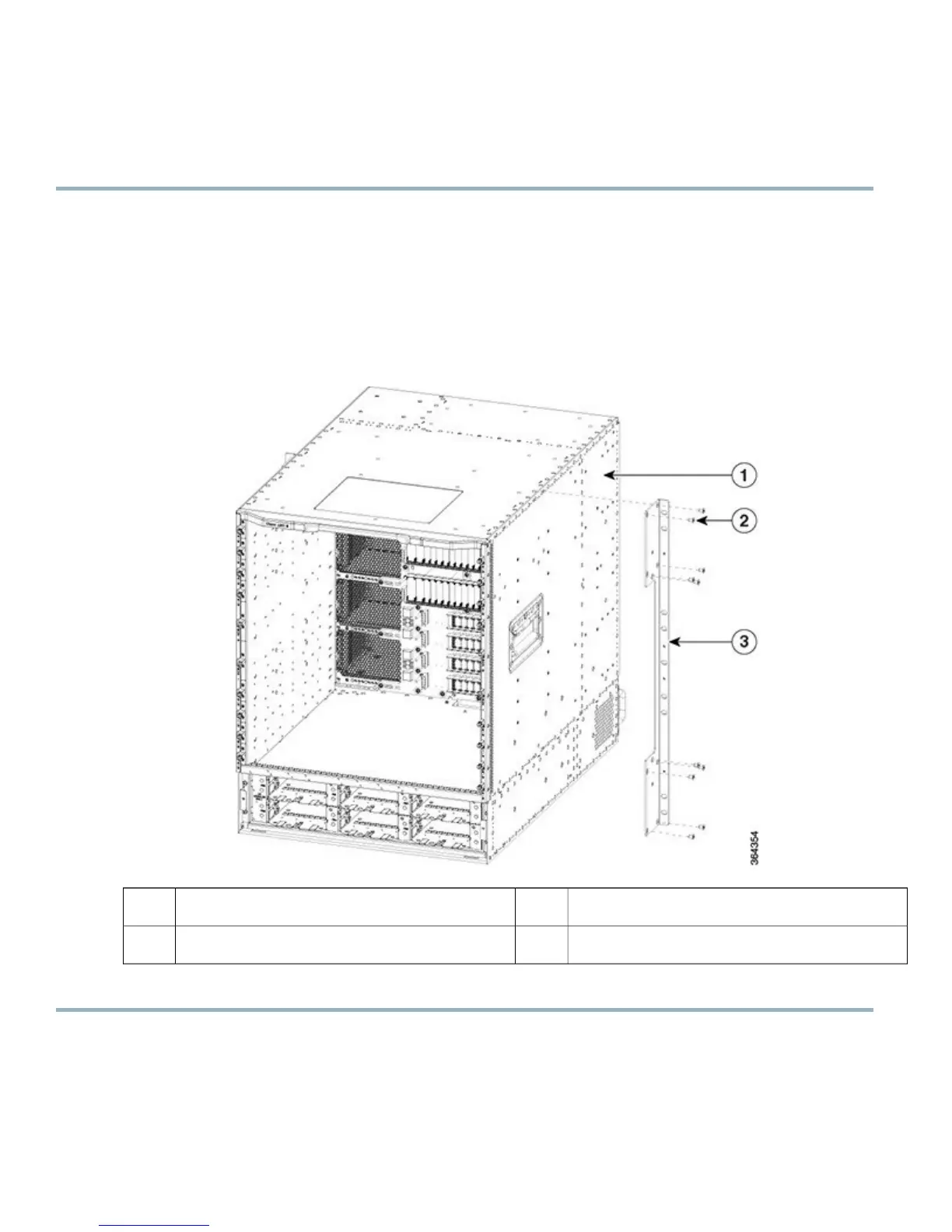

Figure 3: Installing Rack-Mount Bracket
Rack-Mount Bracket3Chassis1
M5 undercut flat-head screws2
What to Do Next
Install the chassis installation handle.
