• Remove the Power Modules.
• If you are replacing the entire power system, remove the Power Cassette Module.
• Be aware of the weight and size of the equipment. Handle it with care.
Required Tools and Equipment
• ESD-preventive wrist strap
• T10 Torx screwdriver
• Antistatic bag
Procedure
Step 1 Loosen and remove the four #6-32 Torx-head screws on the mounting flanges of the FPEM using a T10 Torx screwdriver.

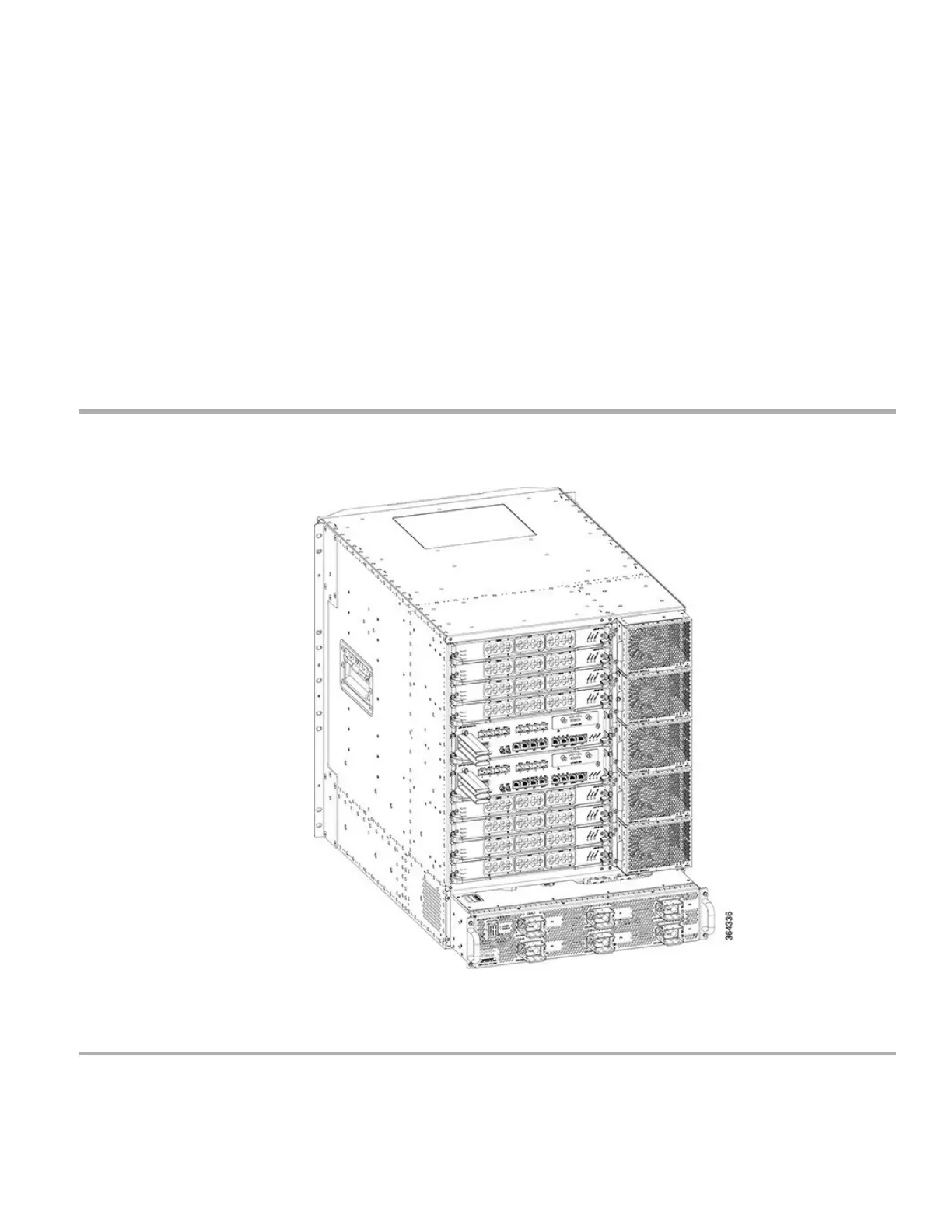

Figure 5: Removing the FPEM from the Chassis
Step 2 Slide the FPEM out of the chassis using the handles on either side applying even pressure to both handles.
Step 3 Place the removed FPEM in an antistatic bag.
