3/16" flat-blade torque screwdriver
Step 1
Loosen the captive screws on the appropriate slot using a 3/16" flat-blade torque screwdriver until the red bands are
visible on the captive screws.

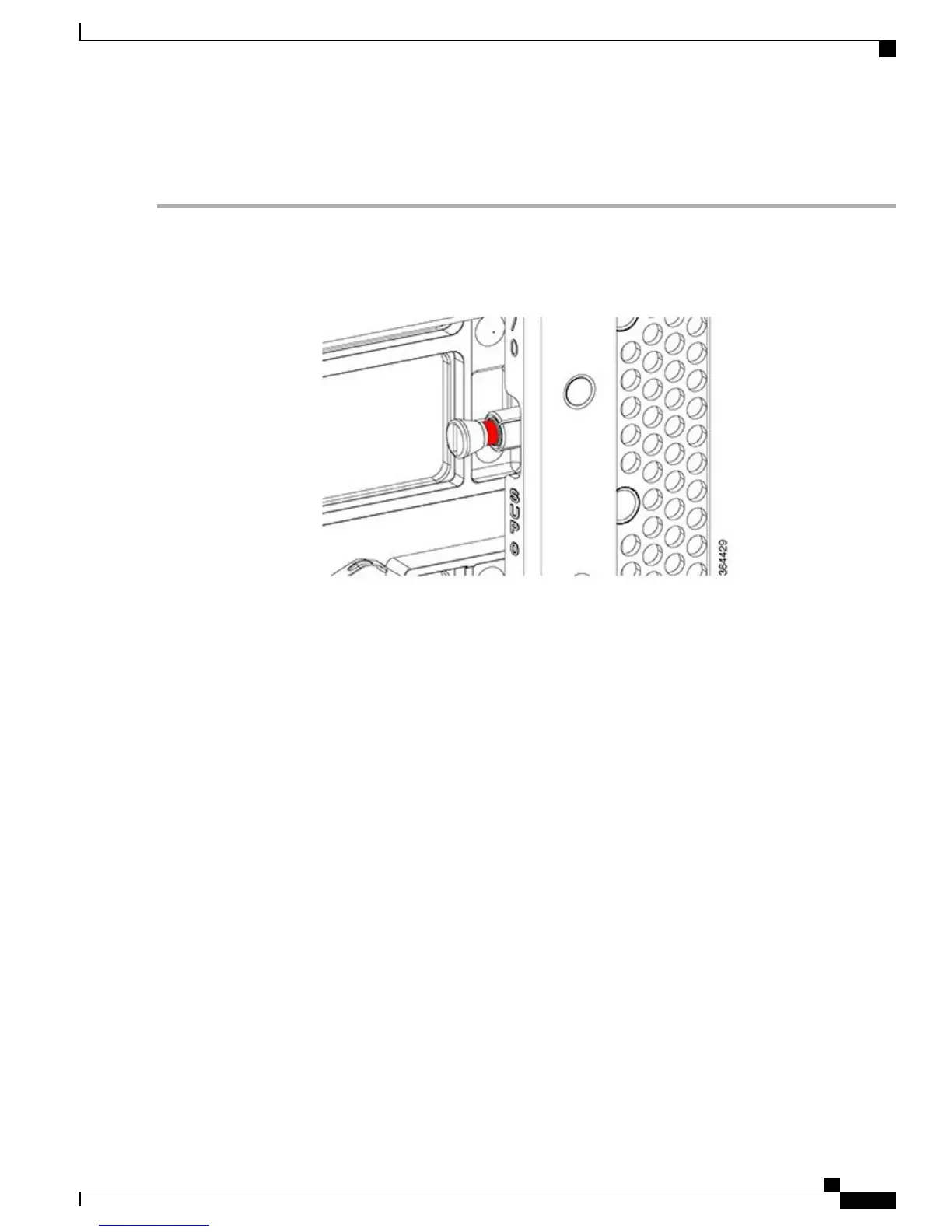

Figure 7: Loosening the Captive Screws on the Supervisor Card
Step 2
Pull the spring-loaded ejectors on the card until they release and are perpendicular to the faceplate.
Step 3
Grasp the faceplate of the card with one hand and place your other hand under the card to support its weight.
Step 4
Carefully align the support rails on the card with the rails in the appropriate slot.
Step 5
Slide and push the card into the slot applying even pressure using both your hands until it mates with its midplane
connectors.
Cisco Converged Broadband Routers Hardware Installation Guide
11
Installing the Supervisor in the Cisco cBR Chassis
Installing the Supervisor Card in the Cisco cBR Chassis

Cisco cBR Specifications

General

Category	Network Router
Redundancy	Yes
Remote PHY Support	Yes
Remote MACPHY Support	Yes
Operating System	Cisco IOS XE
Interface	RF
Supported Interfaces	Ethernet, RF
Management	SNMP, CLI, Web UI
Product Name	Cisco cBR-8 Converged Broadband Router
Form Factor	Rack-mountable
