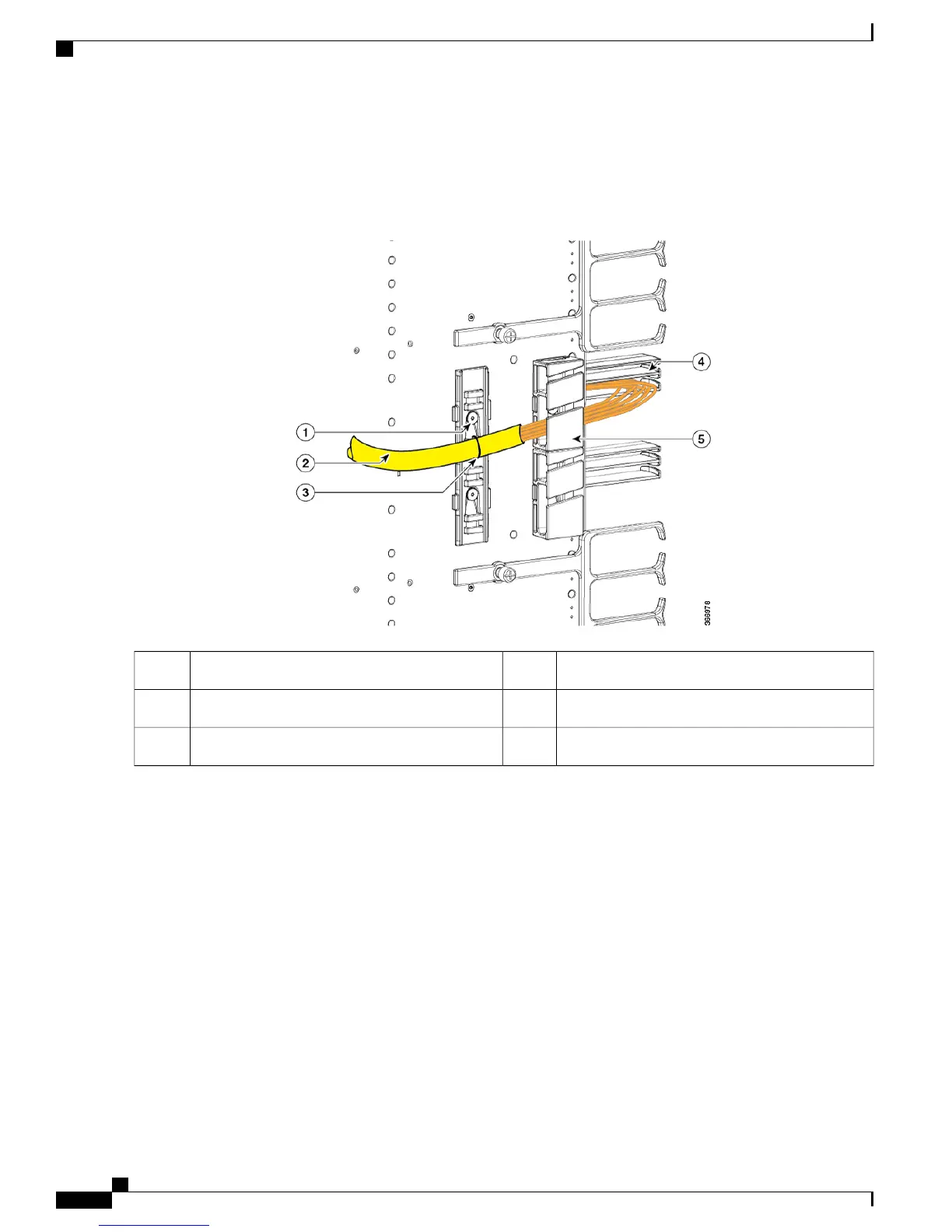

Figure 19: Routing the Fiber-Optic Cables Connected to the Supervisor PIC — Option 2
Supervisor PIC cable management bracket4Strap-down clips1
Snap-on plastic fiber/cable routing guides5Fiber-optic cable bundle in flexible conduit2
—
Cable tie3
