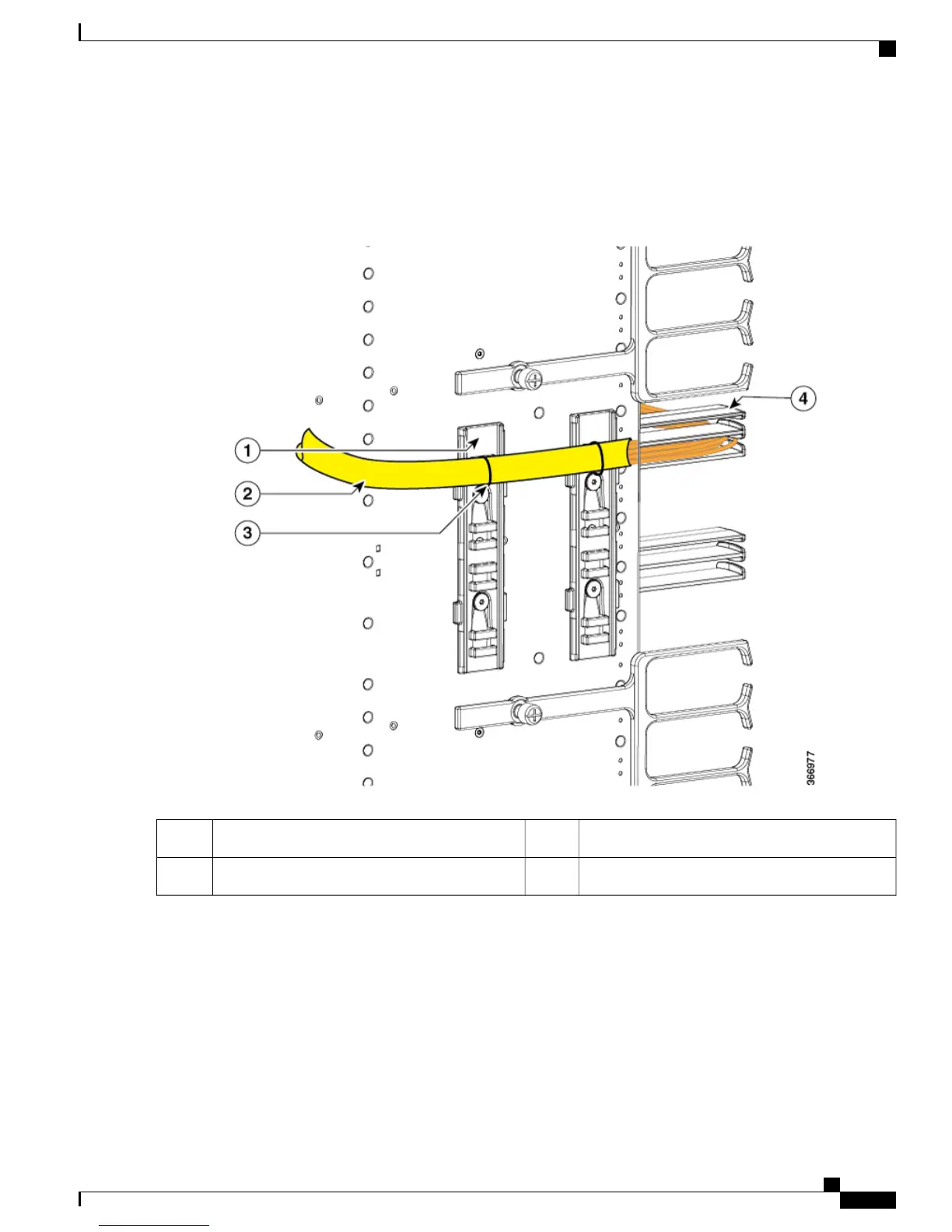

Figure 20: Routing the Fiber-Optic Cables Connected to the Supervisor PIC — Option 3
Cable tie3Strap-down clip1
Supervisor PIC cable management bracket4Fiber-optic cable bundle in flexible conduit2
Step 2
Perform the following for the RJ-45 cables connected to the Supervisor PIC:
•
If you are using a chassis-mounted snap-on plastic fiber/cable routing guide, route the RJ-45 cables through the
lower slot of the snap-on plastic fiber/cable routing guide and then through the lower slot of the Supervisor PIC
cable management bracket. Secure the cable bundle using cable ties.
•
If you are using a chassis-mounted cable strap-down clip without the snap-on plastic fiber/cable routing guide,
route the RJ-45 cables through the lower slot of the Supervisor PIC cable management bracket. Secure the cable
bundle to the lower tie down point on the strap-down clip using a cable tie.
Cisco Converged Broadband Routers Hardware Installation Guide
23
Installing the Supervisor in the Cisco cBR Chassis
Cable Management for the Supervisor PIC in the Cisco cBR Chassis

Cisco cBR Specifications

General

Category	Network Router
Redundancy	Yes
Remote PHY Support	Yes
Remote MACPHY Support	Yes
Operating System	Cisco IOS XE
Interface	RF
Supported Interfaces	Ethernet, RF
Management	SNMP, CLI, Web UI
Product Name	Cisco cBR-8 Converged Broadband Router
Form Factor	Rack-mountable
