We recommend that you use two people to install the troughs, one person to hold the troughs in place while the
other person inserts and tightens the screws.
Note

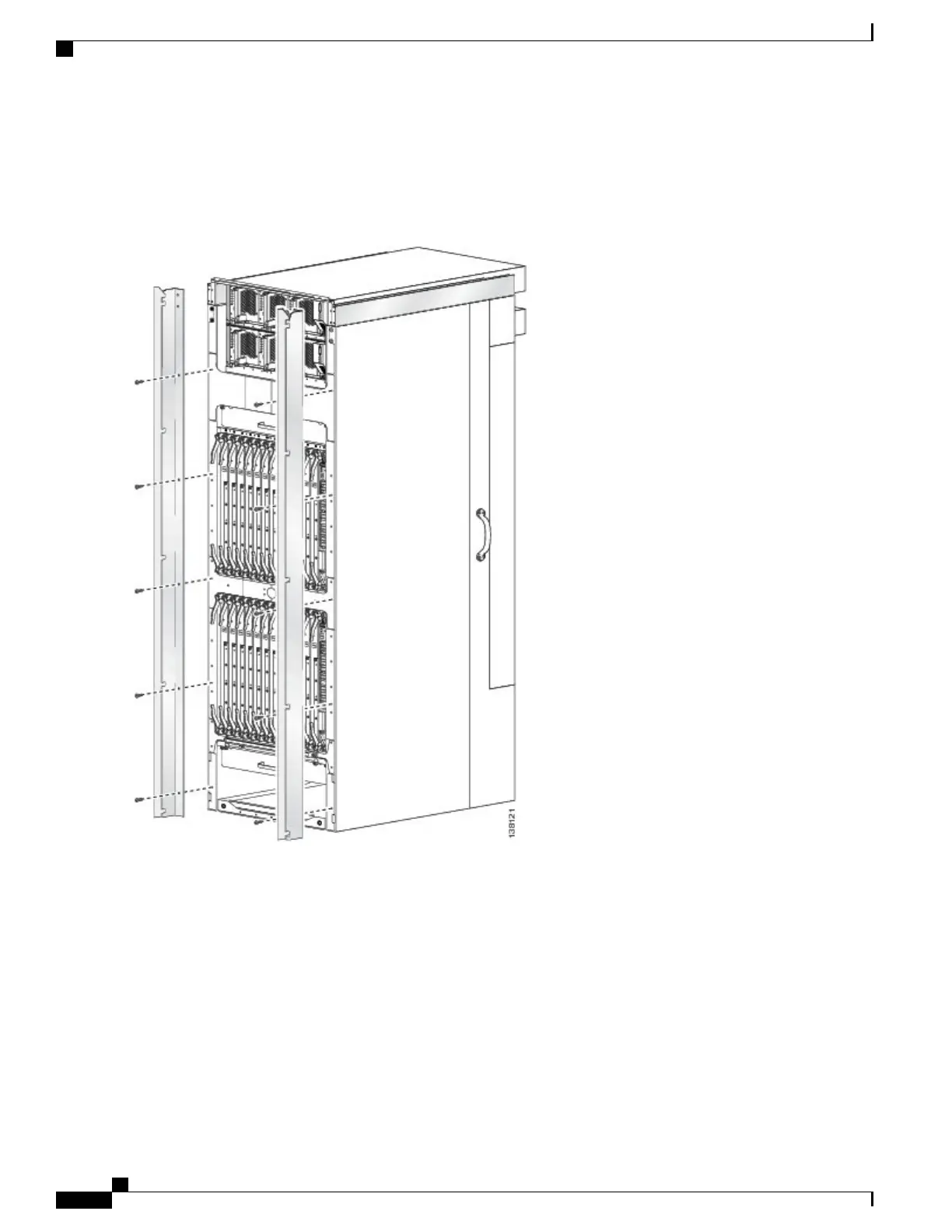

Figure 5: Attaching the Front (SFC) Side Vertical Cable Troughs — Fixed Configuration Power Shown
Step 5
Attach the front upper grille (optional) by carefully inserting the tabs on the grille into the hook hanger brackets on the
top of the upper grille support (see the figure below).
Step 6
Press the grille firmly against the grille support until it snaps onto the ball stud snaps on the front (SFC) side of the
chassis.
Before you attach the upper grille, you must have the power shutoff extenders installed (fixed configuration
power only). See Step 3.
Note
Cisco CRS Carrier Routing System Fabric Card Chassis Installation Guide
8
Installing and Removing Exterior Cosmetic Components
Steps
