Getting Started Guide for Cisco Digital Media Players
78-19212-02
Connect Equipment
Connect to a Power Source
DMPs use electrical power to run. Your DMP model and geographic locale might both affect which
power plug your DMP uses.
• DMP Power Cord Options, page 14
• Connect to a 100V–240V AC Socket, page 16
• Use 802.3af Power over Ethernet (PoE), page 16
DMP Power Cord Options
.
Human
Power On/Off Button • Power 0 1 0
Device Reset Recessed button
• Reset 1 1 1
1. IEEE 802.3af interface with integrated switching regulator.
2. Category 5 or better. Maximum length: 328 ft (100 m). For any distance greater than 165 ft (50 m), we recommend that you use Category 5e or Category 6
certified Ethernet cabling. For installation behind walls, we recommend plenum-rated cabling unless it does not satisfy the requirements set forth in your
regional building code. We do not ship any Ethernet cable with any DMP model. You must obtain this cable separately.
3. Wake-on-LAN.
4. For maximum supported media signal cable lengths, see the “Understand How to Choose Media Signal Cables” section on page 23. Each video and audio
signal cable that we ship with DMPs is 6 ft (approximately 1.83 m) long.
5. Backward-compatible to HDMI 1.1.
6. Use an S-Video signal cable with a YPbPr-to-S-Video adapter to transmit and receive YPbPr data signals.
7. See the “Understand How to Work Around the Low Signal Quality of Composite Video Cables” section on page 25.
8. Although there is no Composite CVBS connector on a DMP 4310G, its YPbPr/S-Video connector supports Composite CVBS when you use an
S-Video-to-Composite adapter.
9. Stereo audio output, irrespective of the cable type for video output.
10. Maximum USB cable length is 15 ft (approximately 5 m).
Table 2 DMP Interfaces (continued)
Category and Subcategory Chassis Label
DMP 4305G
DMP 4310G
DMP 4400G

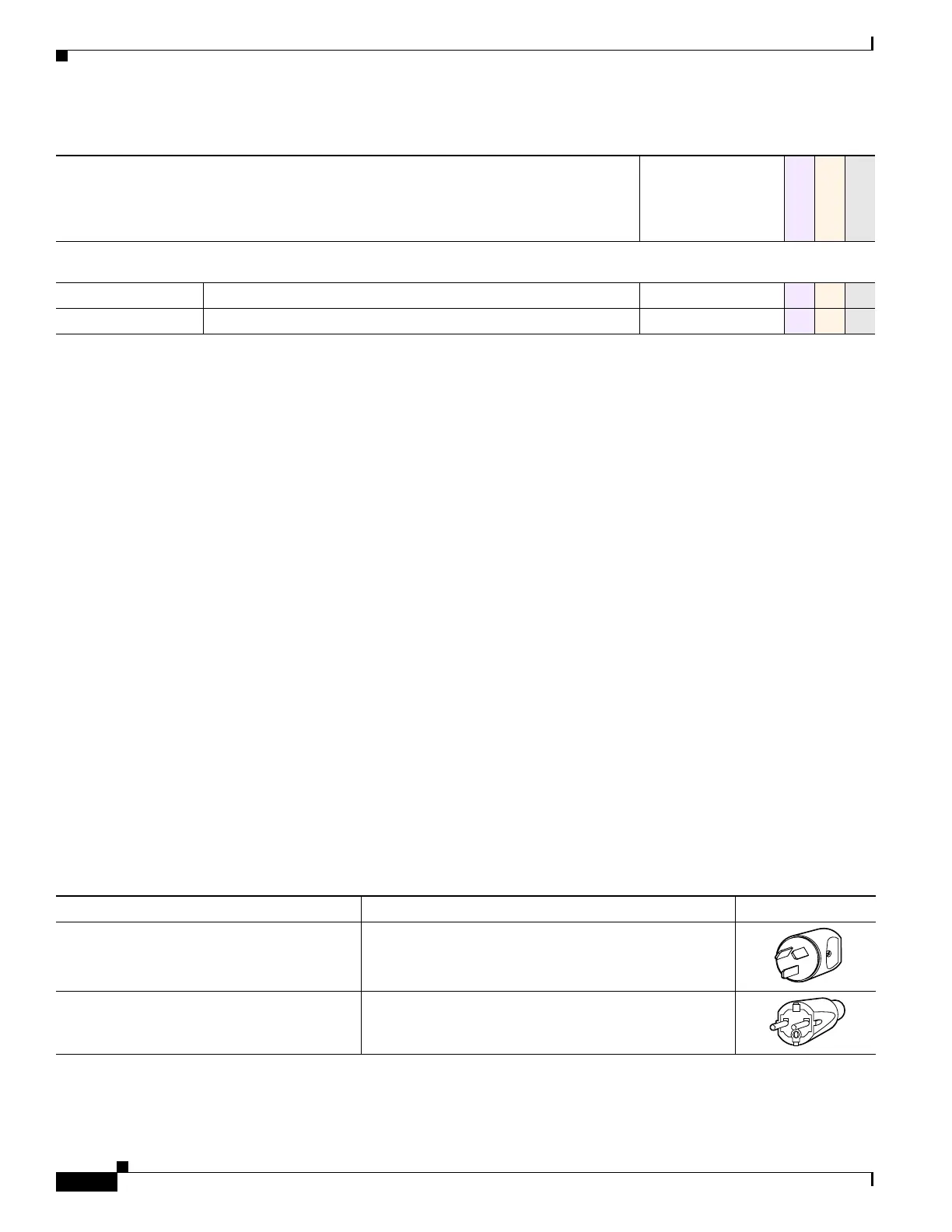

Table 3 International Power Cord Standards
Locale Standard Plug Type
• Australia
• New Zealand
•
SAA/3
• AS/NZS 3112-1993
• European Union (except Italy)
• Argentina
• Brazil
•
CEE 7/7
• VIIG
120356
120357
