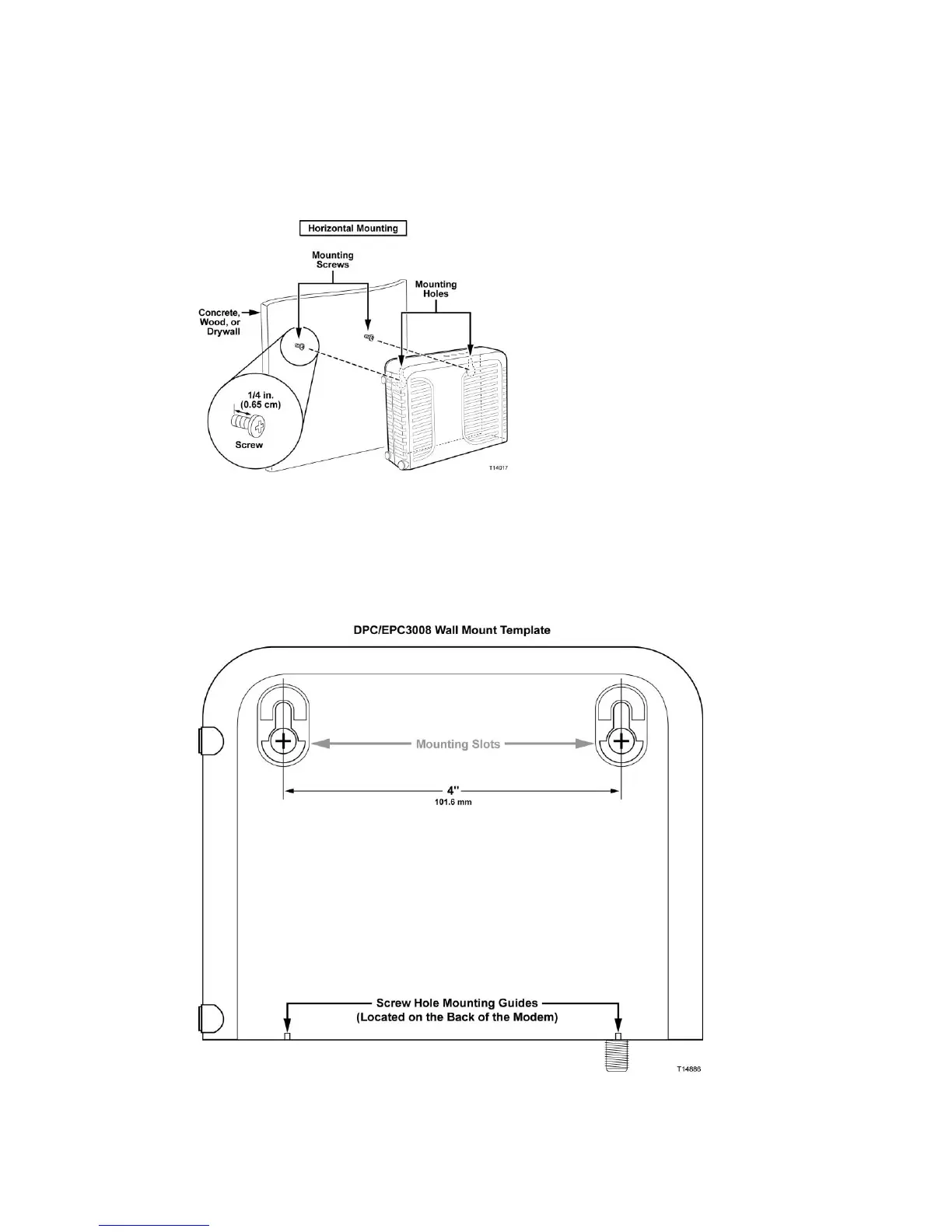

Position the Cable Modem
Use the following illustration to guide you in positioning the cable modem on the
wall.
Location and Dimensions of the Wall-Mounting Slots
The following illustration shows the location and dimensions of the wall-mounting
slots on the bottom of the cable modem. Use this illustration as a guide for mounting
the cable modem to the wall.
Note: Image not to scale.
