Cisco DX70 Installation Guide

3

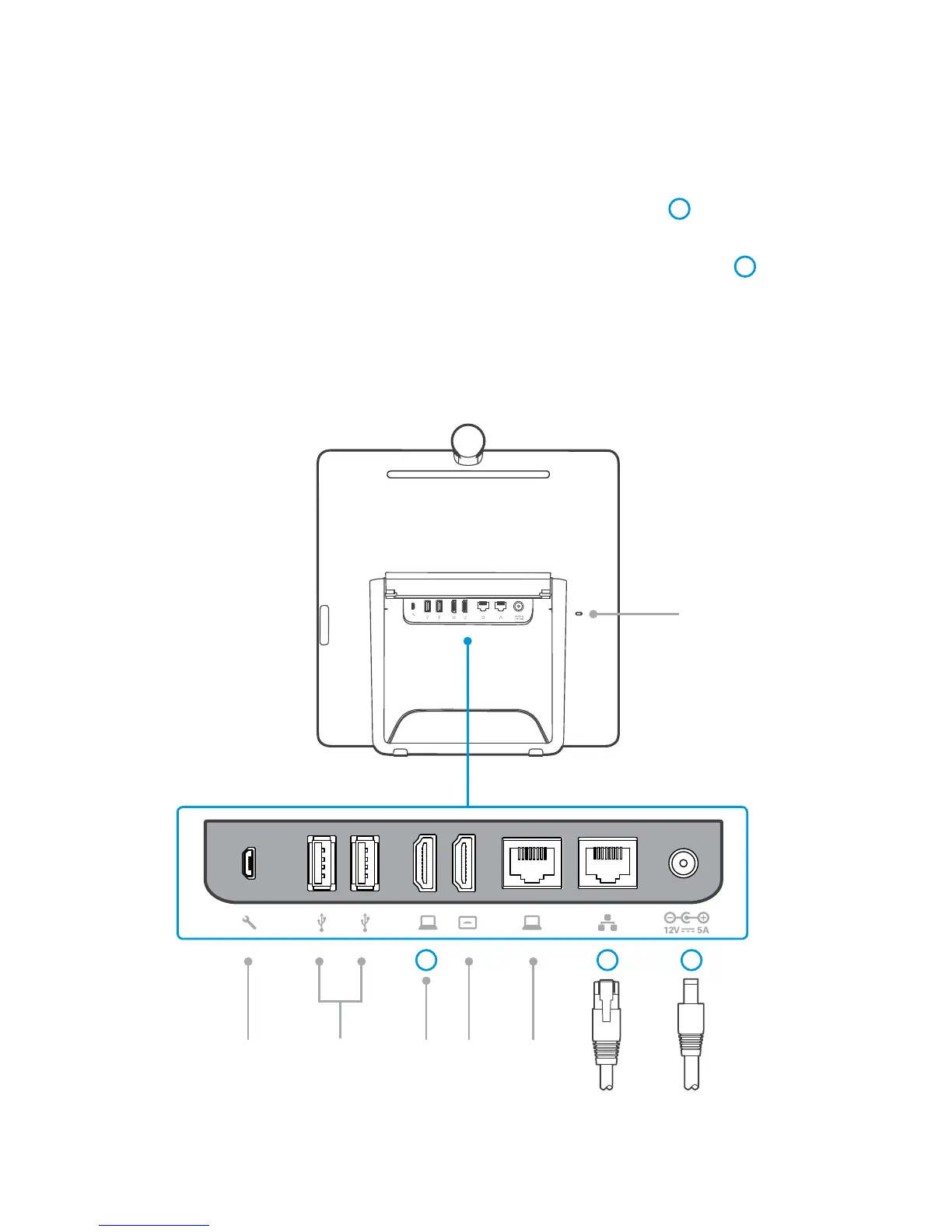

Connect Cables
1. Pull the foot stand, set the DX70 in an upright position and adjust the angle.
2. Flip the connector cover up to access the connector panel.
3. Connect the Ethernet cable (A) between the network connector
1
and a network
wall socket. Alternatively, you can use a Wi-Fi connection.
4. Connect the provided power adapter and cable (B) between the DX70
2
and a
power socket.
To use the same network wall socket for both your computer and DX70, connect your
computer to the computer network port on the DX70, and the DX70 to the network wall
socket (see step 3).
Computer
network
Network
Kensington
lock
USB
Power
HDMI
in
Service port
21
HDMI
out
3

Cisco DX70 Specifications

General

Connectivity	Ethernet, Wi-Fi
Video Standards	H.264
Operating System	Android-based
Power over Ethernet (PoE)	Yes
Microphone	Integrated microphone
Speaker	Integrated
Audio Standards	G.711, G.722
Mounting Options	Wall mount
