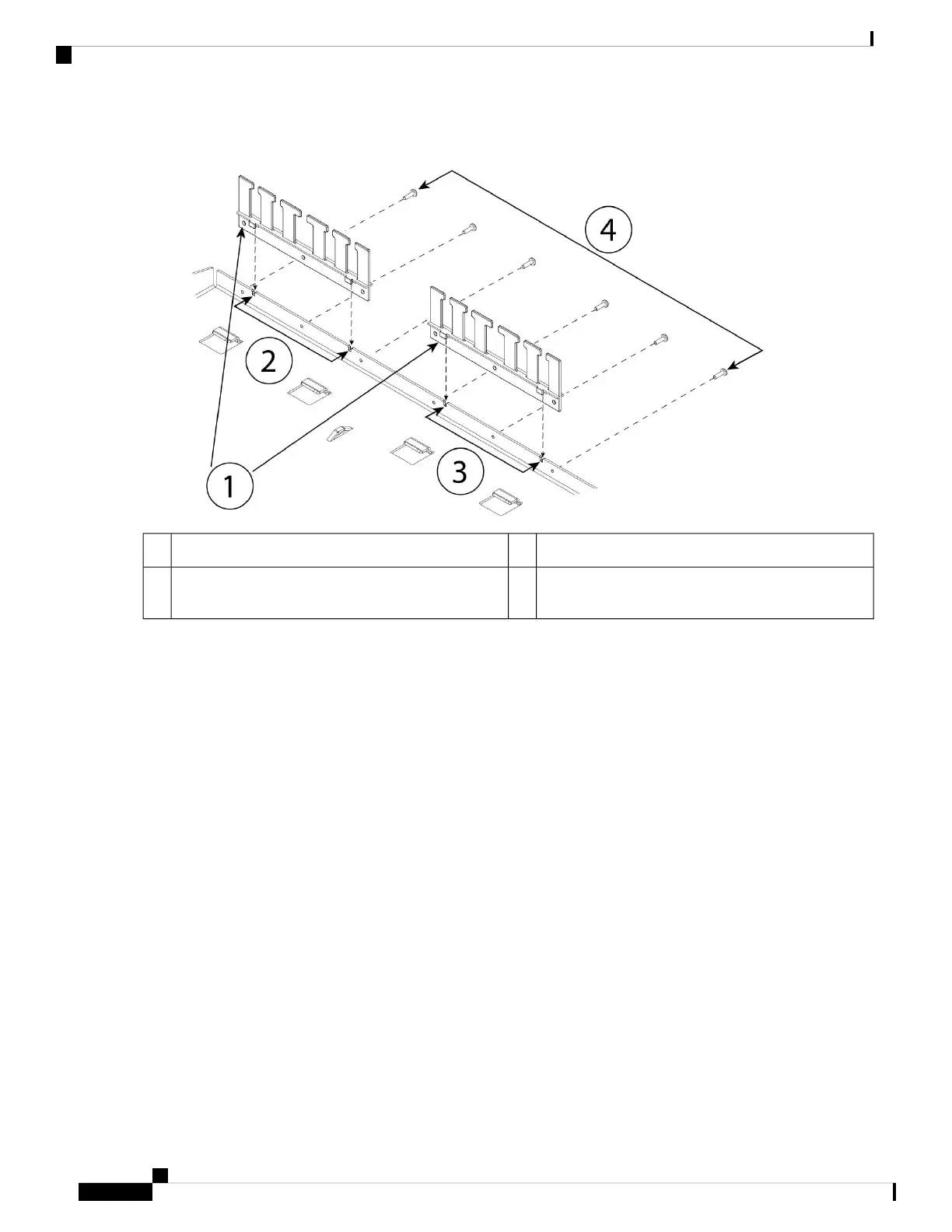

Figure 28: Attach the Cable Guides to the Sliding-Rack Tray Flange
Left cable guide rack tray cutouts2Two cable guides (part number 700-122664-01)1
Six Phillips M3 x 0.5 x 10 mm screws (part number
48-0796-01)
4Right cable guide rack tray cutouts3
a) Align the cable guides with the cutouts on the sliding-rack tray flange (see figure above).
b) At the rear of the sliding-rack tray, attach the left and right cable guides using the six Phillips M3 x 0.5 x 10 mm
screws (part number 48-0796-01).
Drive the screws in while facing the back of the sliding-rack tray.
Note
c) Set the sliding-rack tray aside. Continue with Step 2 to install the rack shelf on the chassis.
The figure in Step 8 shows the sliding rack tray with the cable guides attached.
Step 2 Place the chassis with the top facing down on a large, stable work area.
Step 3 Invert the rack shelf and position it on the chassis. You can mount the chassis with the front or rear panel facing front.
Cisco Firepower 1010 Hardware Installation Guide
32
Mount the Chassis
Rack-Mount the Chassis
