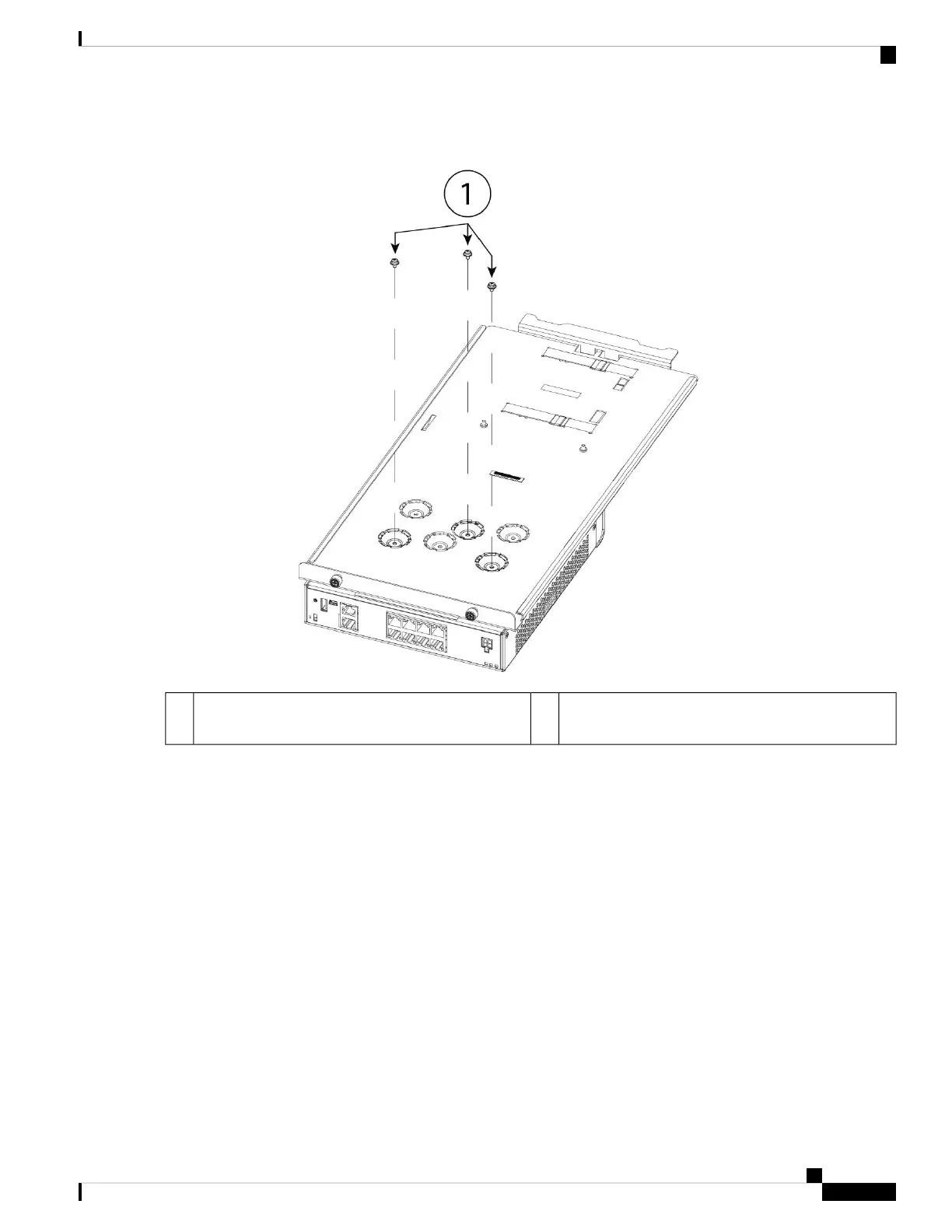

Figure 29: Install the Rack Shelf on the Chassis
—Three short black screws M3 x 6 mm (part number
48-0384-01)
1
Step 4 Adjust the position of the chassis and the rack shelf until the three mounting holes in the dimples in the bottom of the
shelf are aligned with the mounting holes in the bottom of the chassis.
Step 5 Tighten the screws to lock the chassis into place on the rack shelf.
Make sure you are using the short black screws (M3 x 6 mm), otherwise you will damage the chassis.
Caution
Step 6 Carefully turn the rack shelf right-side up.
Step 7 Install the power supply in the rack shelf behind the chassis.
Cisco Firepower 1010 Hardware Installation Guide
33
Mount the Chassis
Rack-Mount the Chassis
