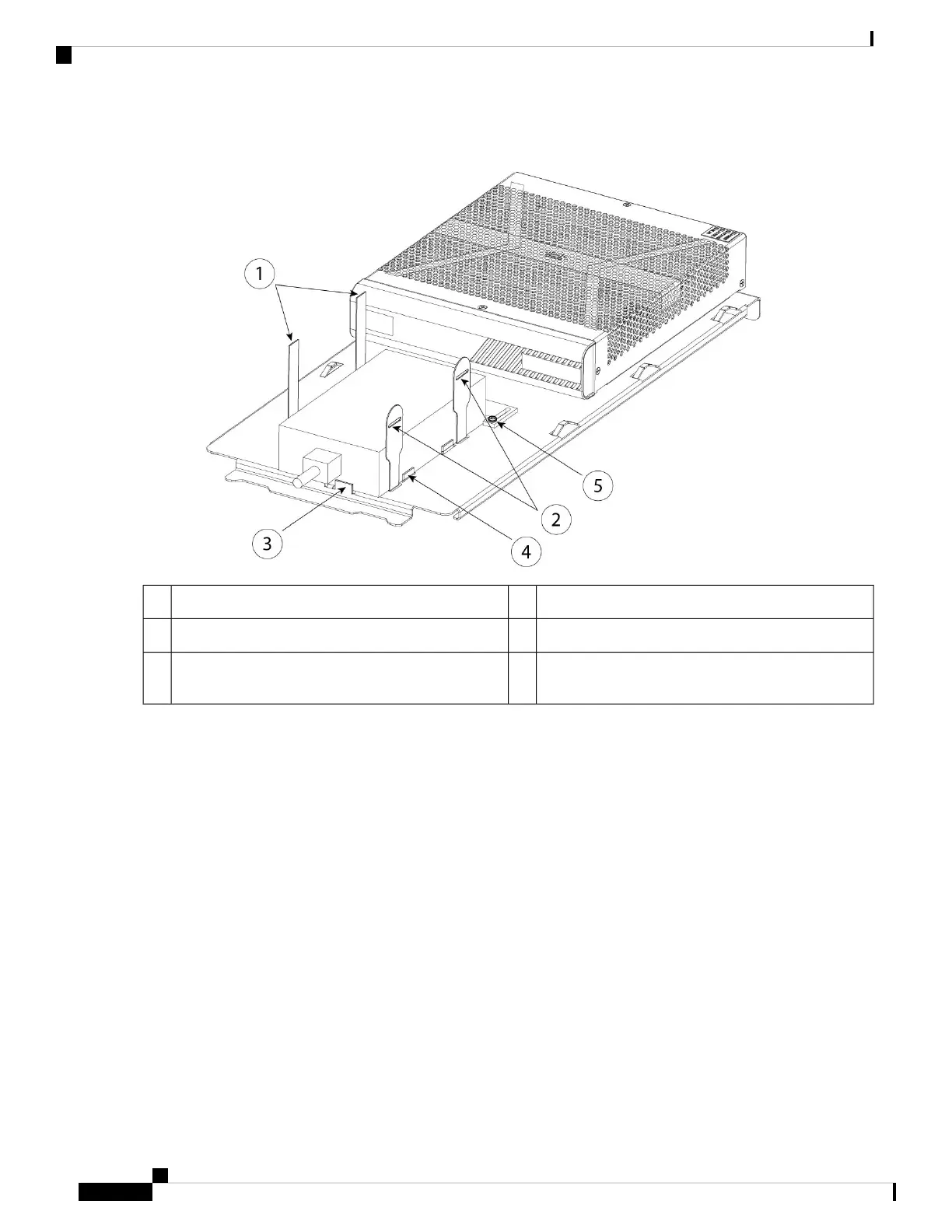

Figure 30: Install the Power Supply in the Rack Shelf
Velcro straps for power supply2Velcro straps for power supply1
Power supply stop4Power supply stop3
—Rear sliding stop and screw (one of two screws on the
sliding stop)
5
a) Loosen the Velcro straps and place the power supply on the rack shelf behind the chassis.
Make sure the AC inlet cord faces the rear.
b) Align the power supply to the side and rear stops.
If the rear sliding stop is not touching the power supply, loosen the two screws, slide the stop up to touch the power
supply, and then retighten screws.
c) Re-engage the Velcro straps and tighten them to secure the power supply.
