Step 5 Route the cables through the openings in the cable management brackets as shown in the figure below.
Step 6 Attach the FIPS opacity shield to the cable management brackets using four of the 8-32 x 0.375-inch Phillips screws
provided in the FIPS kit as shown in the figure below.

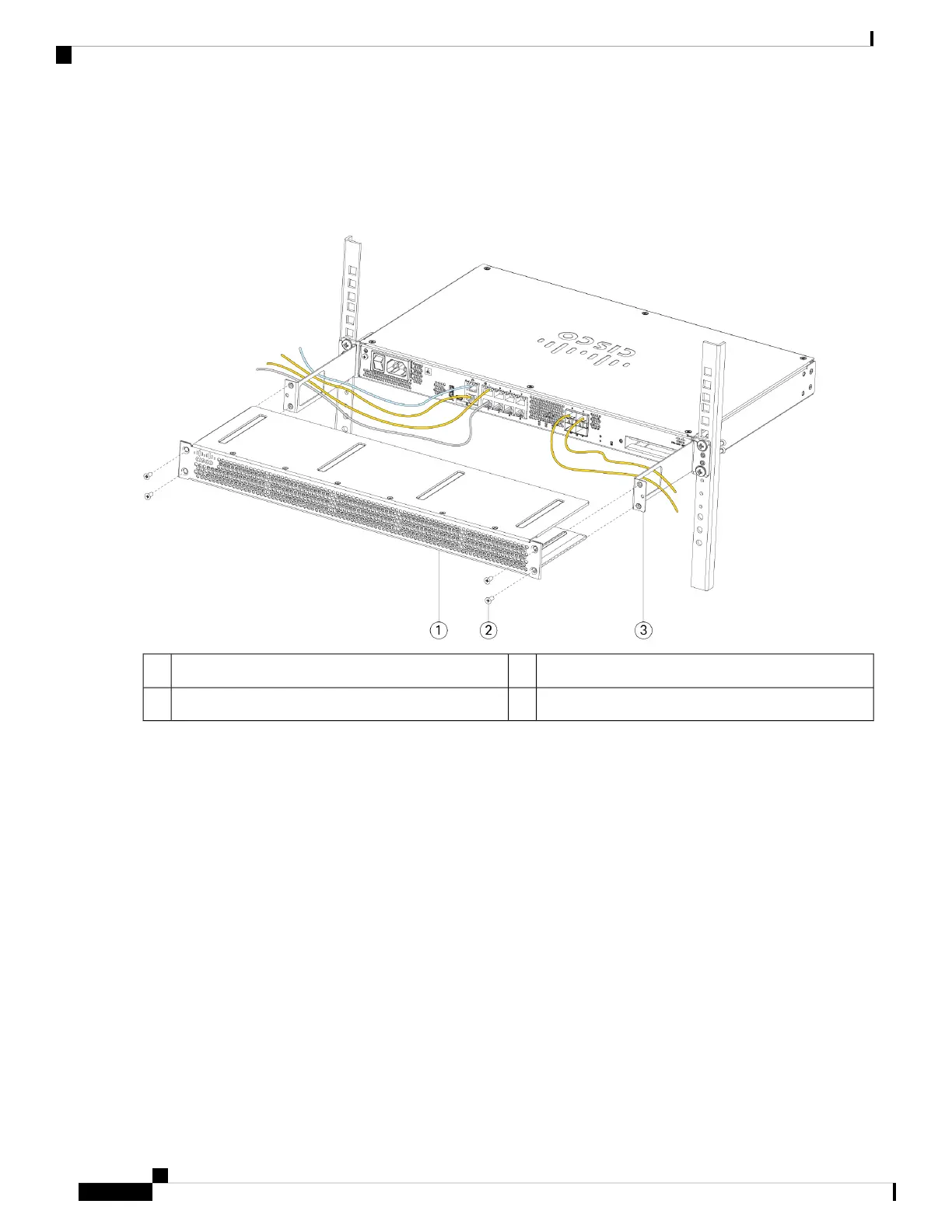

Figure 28: Install the FIPS Cover
8-32 x 0.375-inch Phillips screws (two per side)2FIPS opacity shield1
—Cable management bracket3
Step 7 Before you attach the TELs, clean the chassis and FIPS cover of any grease, dirt, or oil with alcohol-based cleaning
pads .
Step 8 Attach seven of the TELs. See the figure below for the correct placement. Allow the TELs to cure for a minimum of
12 hours.
Any deviation in the placement of the TELs means the chassis is not in FIPS mode.
Caution
Cisco Firepower 1100 Series Hardware Installation Guide
36
Installation, Maintenance, and Upgrade
Install the FIPS Opacity Shield in a Two-Post Rack

Cisco Firepower 1120 Specifications

General

Processor cores	12
Processor family	Intel
Built-in processor	Yes
Firewall throughput	1500 Mbit/s
Wi-Fi	No
IPSec VPN throughput	1 Gbit/s
Maximum firewall connections	200000
Maximum firewall connections per second	75000
Supported network protocols	SMTP
Console port	RJ-45
Connectivity technology	Wired
Number of console ports	1
SFP module slots quantity	4
Ethernet LAN (RJ-45) ports	8
SSD capacity	200 GB
Storage media type	SSD
Form factor	1U
Input current	2 A
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	100 W
Operating altitude	0 - 3000 m
Storage temperature (T-T)	-25 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Country of origin	Mexico
Quantity per pack	1 pc(s)
Harmonized System (HS) code	85176990
Package depth	1409.7 mm
Package width	990.6 mm
Package height	457.2 mm
Package weight	5782.31 g

Weight and Dimensions

Depth	436.9 mm
Width	268.7 mm
Height	43.7 mm
