Cisco Firepower 4100 Series User Manual

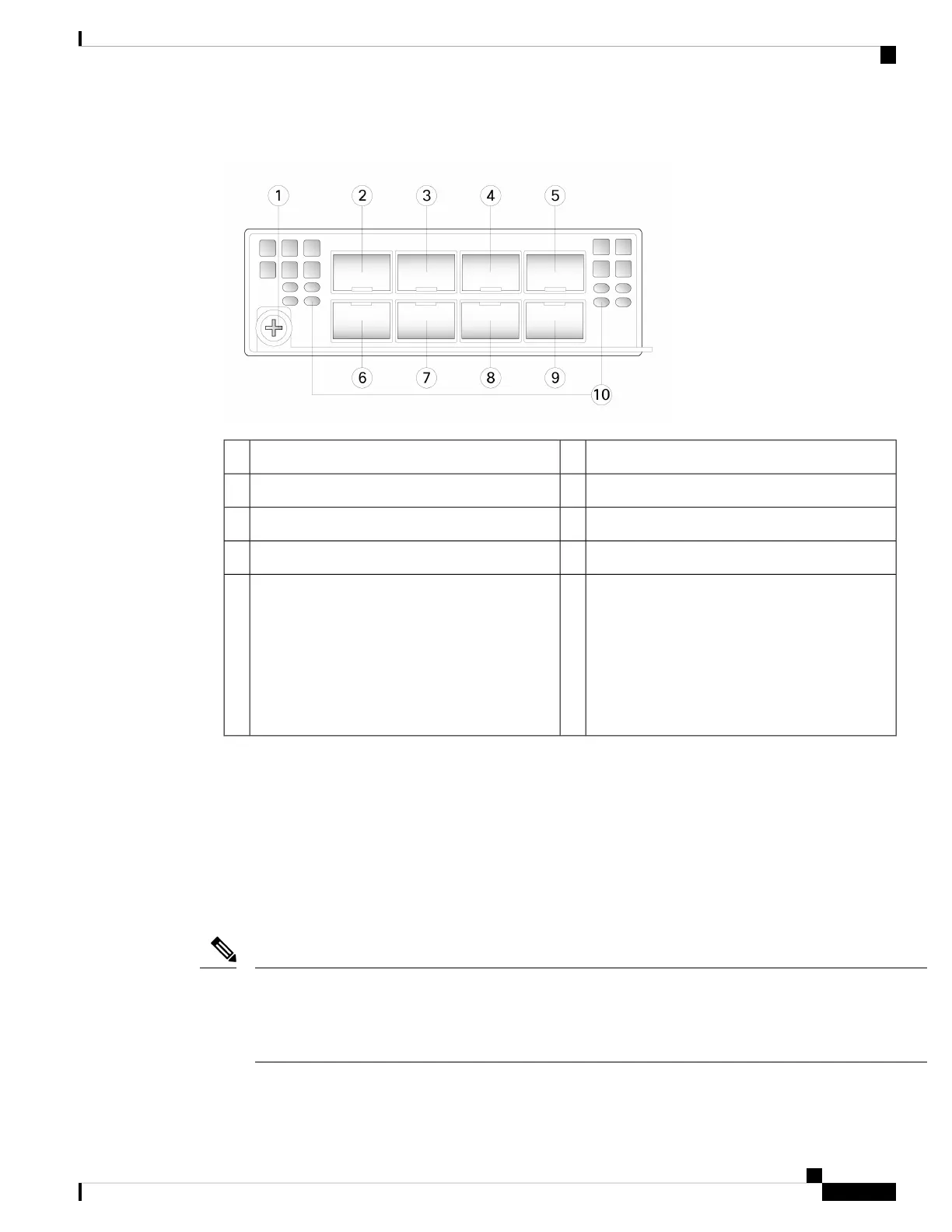

Figure 8: FPR4K-NM-8X10G
Ethernet X/12Captive screw/handle1
Ethernet X/54Ethernet X/33
Ethernet X/26Ethernet X/75
Ethernet X/68Ethernet X/47
Network activity LEDs
• Off—No connection or port is not in use.
• Amber—No link or network failure.
• Green—Link up.
• Green, flashing—Network activity.
10Ethernet X/89
For More Information
• For a list of copper SFPs, see Supported SFP/SFP+ and QSFP Transceivers, on page 26.
40-Gb Network Module
The following figure shows the front panel of the 40-Gb network module (FPR4K-NM-4X40G.) The
FPR4K-NM-4X40G is a single-wide module that supports hot swapping. The four ports are numbered left to
right.
Make sure you have the correct firmware package and software version installed to support this network
module. For instructions on how to verify your firmware package version and to upgrade the firmware if
necessary, see the Cisco Firepower 4100/9300 FXOS Firmware Upgrade Guide. See Cisco Firepower 4100/9300
FXOS Compatibility for the software compatibility matrix.
Note
Overview
13
Overview
40-Gb Network Module
