Cisco Firepower 4100 Series User Manual

The FPR4K-NM-4X40G is NEBS-compliant.
Note

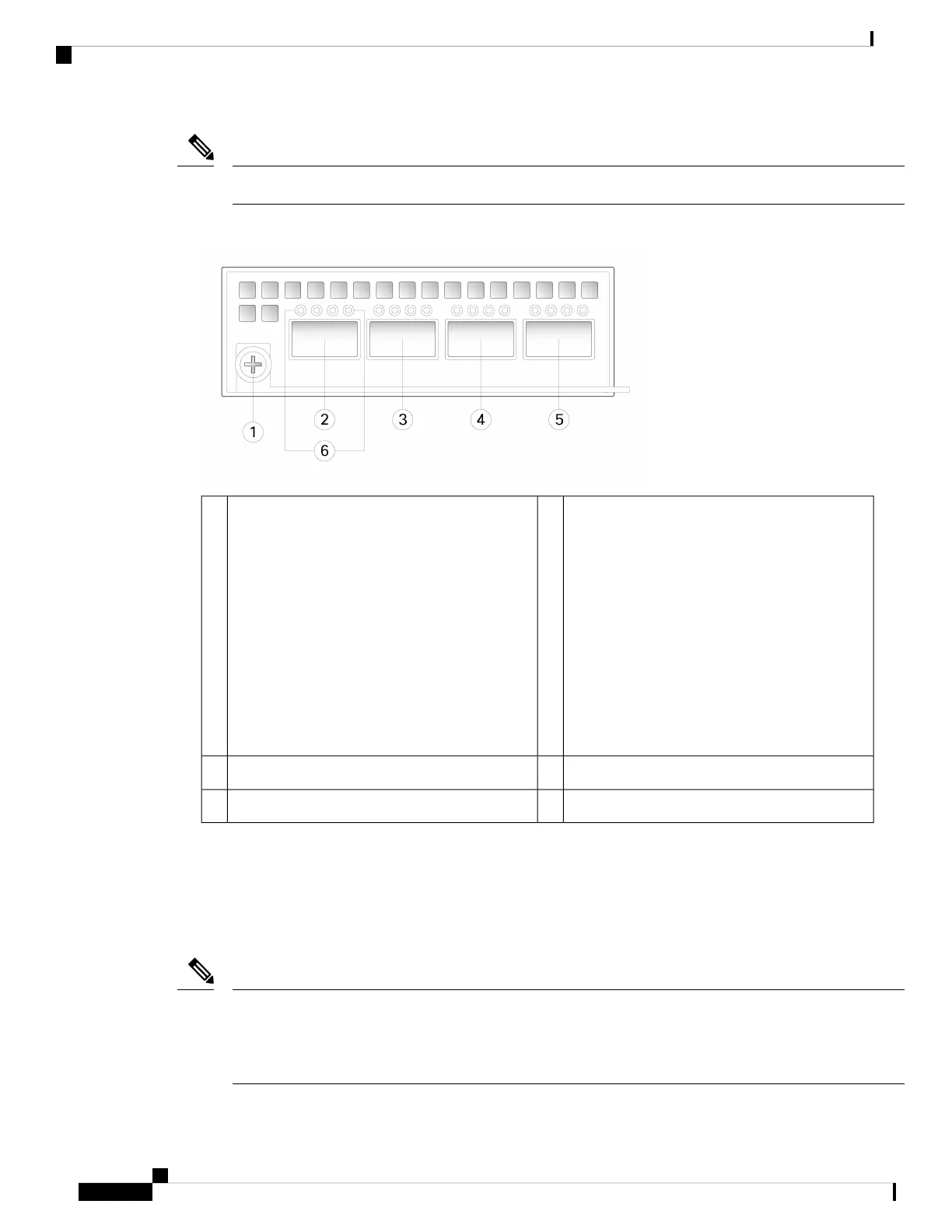

Figure 9: FPR4K-NM-4X40G
Network activity LEDs
• Off—No connection or port is not in use.
• Amber—No link or network failure.
• Green—Link up.
• Green, flashing—Network activity.
• 40Gb—Only the leftmost LED indicates the
port status.
• 4x10Gb—Each of the port LEDS indicates
the status of respective 10-Gb channel.
2Captive screw/handle1
Ethernet X/24Ethernet X/13
Ethernet X/46Ethernet X/35
100-Gb Network Module (Two Ports, Single Wide)
The following figure shows the front panel of the 100-Gb network module (FPR4K-NM-2X100G). The
FPR4K-NM-2X100G is a single-wide module that supports hot swapping. The two ports are numbered left
to right. The FPR4K-NM-2X100G is first supported in FTD 7.2 and ASA 9.18.
Make sure you have the correct firmware package and software version installed to support this network
module. For instructions on how to verify your firmware package version and to upgrade the firmware if
necessary, see the Cisco Firepower 4100/9300 FXOS Firmware Upgrade Guide. See Cisco Firepower 4100/9300
FXOS Compatibility for the software compatibility matrix.
Note
Overview
14
Overview
100-Gb Network Module (Two Ports, Single Wide)
