Cisco Firepower 4100 Series - 100-Gb Network Module (Four Ports, Single Wide)

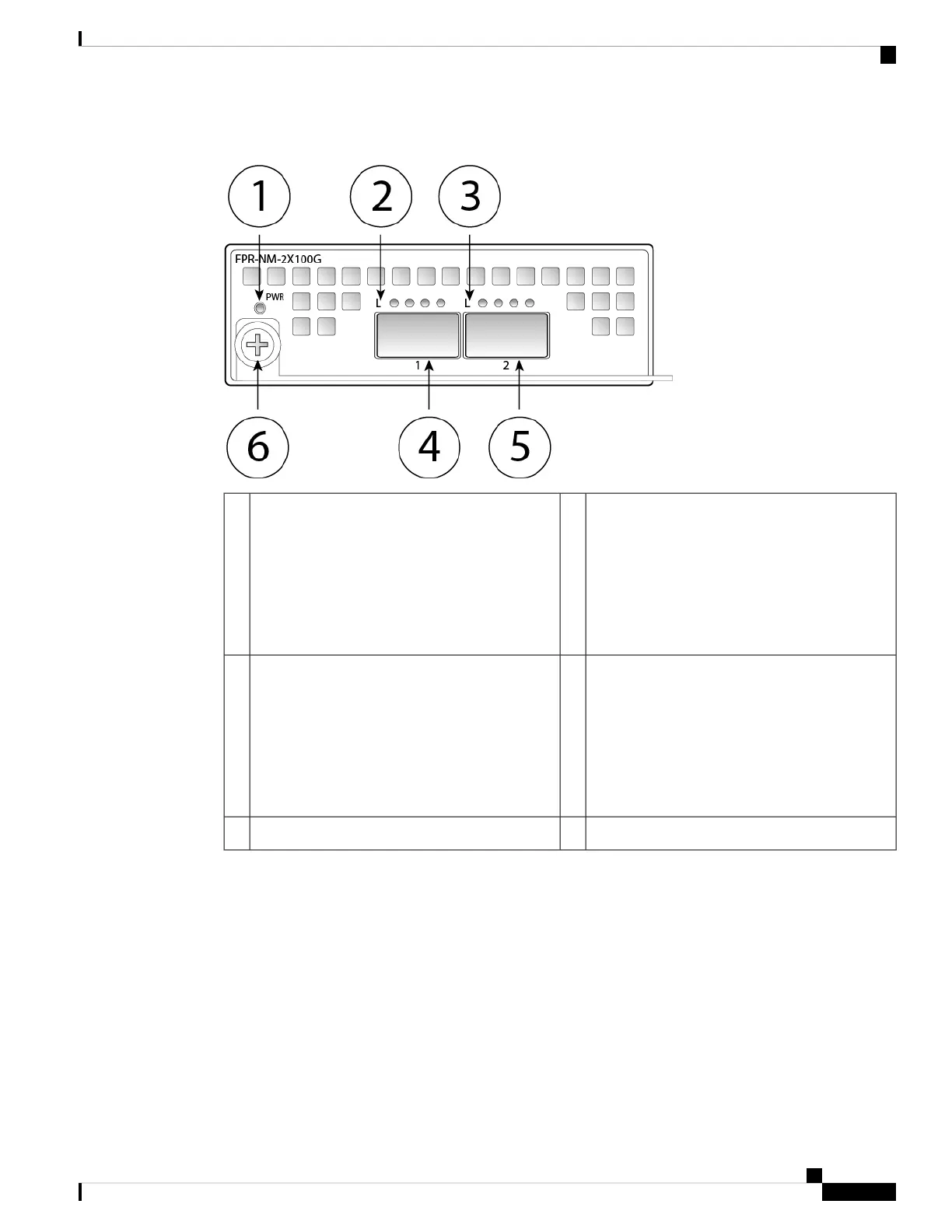

Figure 10: FPR4K-NM-2X100G
Network activity LEDs
• Off—No connection or port is not in use.
• Amber—No link or network failure.
• Green—Link up.
• Green, flashing—Network activity.
2Power LED1
Ethernet X/14Network activity LEDs
• Off—No connection or port is not in use.
• Amber—No link or network failure.
• Green—Link up.
• Green, flashing—Network activity.
3
Captive screw/handle6Ethernet X/25
100-Gb Network Module (Four Ports, Single Wide)
The following figure shows the front panel of the 100-Gb network module (FPR4K-NM-4X100G). The
FPR4K-NM-4X100G is a single-wide module that supports hot swapping. The four ports are numbered left
to right. The FPR4K-NM-4X100G is first supported in FTD 7.2 and ASA 9.18.
Overview
