Cisco GLC-T User Manual

22
Gigabit Interface Converter (GBIC) Module and Small Form-Factor Pluggable (SFP) GBIC Module Installation Information and Specifications
OL-5067-08
Fiber-Optic Cleaning Information

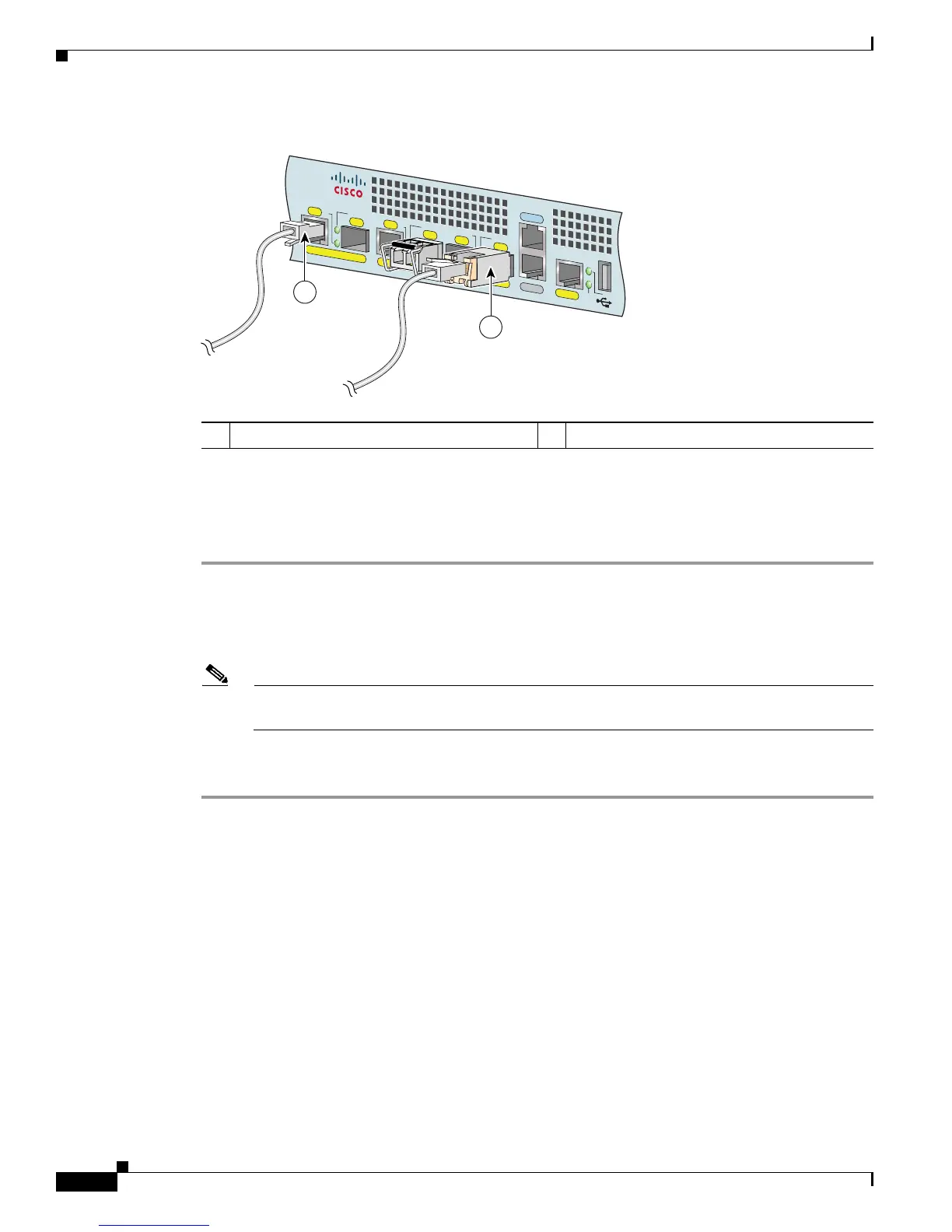

Figure 14 RJ-45 Port and Copper SFP RJ-45 Gigabit Ethernet Port Cabling
Attaching the Mode-Conditioning Patch Cord
Perform the following steps to attach the mode-conditioning patch cord:
Step 1 Attach the patch cord to the SC-type receptacle on the GBIC module (Figure 5) or the LC-type connector
on the SFP module (Figure 6).
Step 2 Attach the network ends of your patch cord to the appropriate 1000BASE-X equipment in your building
cable plant.
Note Ensure that you connect the TX and RX ports on one end of the patch cord to the RX and TX
ports (respectively) on the other end. Connect TX to RX and RX to TX.
If you are attaching cables from CWDM GBIC modules or SFP modules to the Cisco optical add-drop
(OADM) modules, see the documentation for the OADM modules.
This completes the procedure for attaching a mode-conditioning patch cord.
Fiber-Optic Cleaning Information
For information about cleaning fiber-optic cable connectors and receptacles, see the Inspection and
Cleaning Procedures for Fiber-Optic Connections document. It provides detailed illustrations and photos of
procedures and equipment required to properly clean fiber-optic connections. Also see the Compressed Air
Cleaning Issues for Fiber-Optic Connections document.
