Because the connections
for a high-de nition (HD)
or standard-de nition (SD)
TV are di erent, you must
determine if your TV is HD
or SD. Your TV must
receive HD signals for
you to enjoy the bene ts
of HDTV. See the guide that came with your TV for more information.
See page 25 for more information on picture formats.
Mak
e one of the following connections for your home network:
• If your home network uses coaxial cable, use the F-Con connector on the set-
top. See page 13
• If your home network uses Ethernet (CAT-5) cable, use the NETWORK
connector on the set
-top. See page 13
Connecting the Set-Top

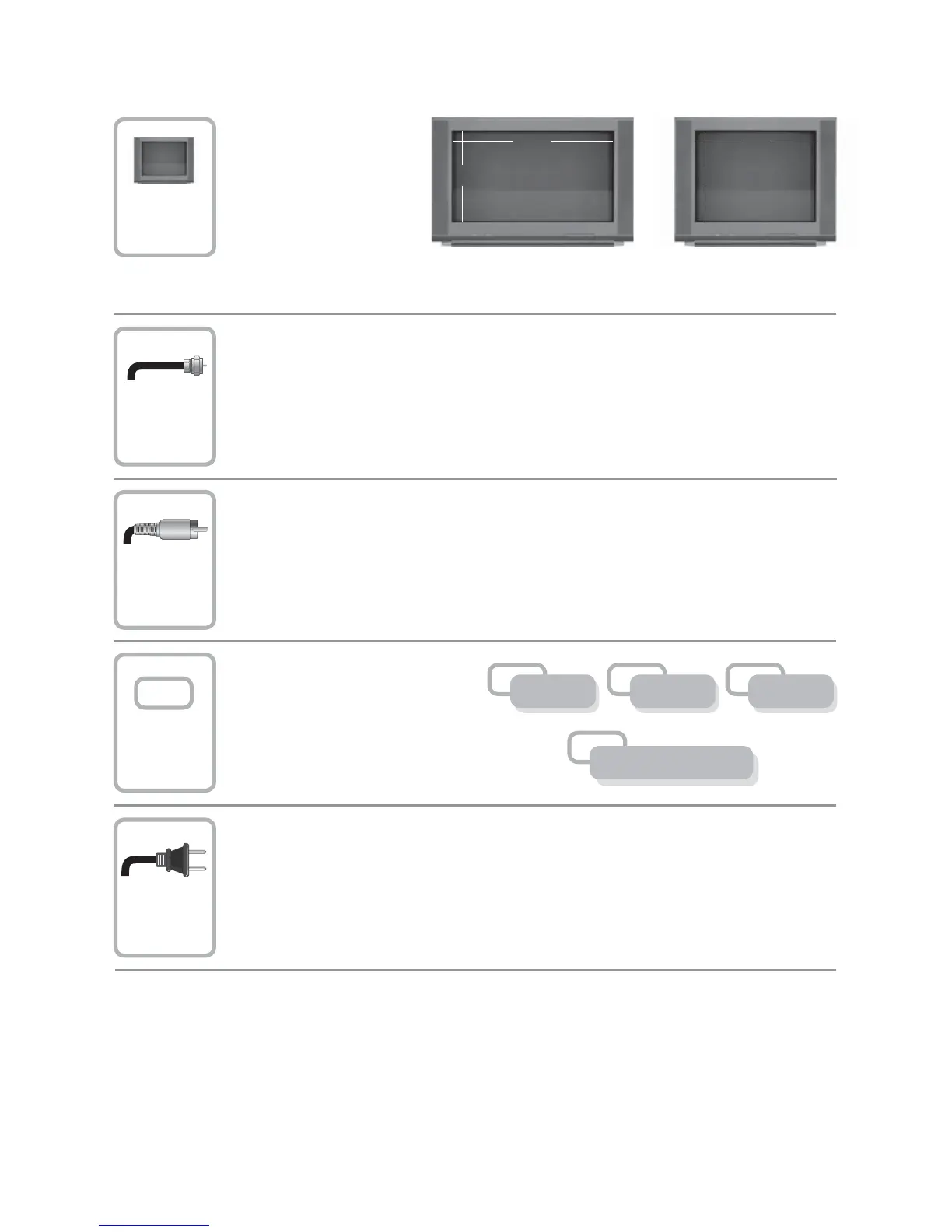

To connect your set-top to your network and home entertainment devices, complete these steps:
Identify the additional consumer
electronic devices that you will
connect to the set-top and TV.
See pages 17 through 22 and
see the o
wner’s manual for the
device.
Plug the set-top and the TV into an AC power source that is not controlled by a
switch.
Make the connections for your TV, VCR, and DVD recorder as follows:
• If you are using an HDTV, see page 14 and the connection diagrams in this
guide
•
If you are using an SDTV, see page 15 and the connection diagrams in this
guide
1
2
3
5
4
Home Theater
OtherDVDVCR
9
16
4
3
or
To Next Page
