Connections for a Standard-De nition TV (SDTV)
When using the set-top with an SDTV, you must make one of the following connections to view
content. Some SDTVs may not have all of these connections. See the owner’s manual for your TV
and the cabling diagrams in this guide for more detailed information.
Although all connections provide you with quality service, we list the connections in our
recommended order.
Notes:
• The labeling on your set-top or SDTV may vary slightly from the illustrations shown below
• Some cables shown in the connection diagrams may not be included with this set-top
The YPbPr (red, blue, and green) connectors
can provide standard-de nition component
video signals to an SDTV. A separate audio
connection is also needed.
Note: To connect YPbPr to an SDTV, you
must select the output video format. See page
25 for more information on picture formats.
See the connection diagram on page 20 for
an example.
SDTV
Connections

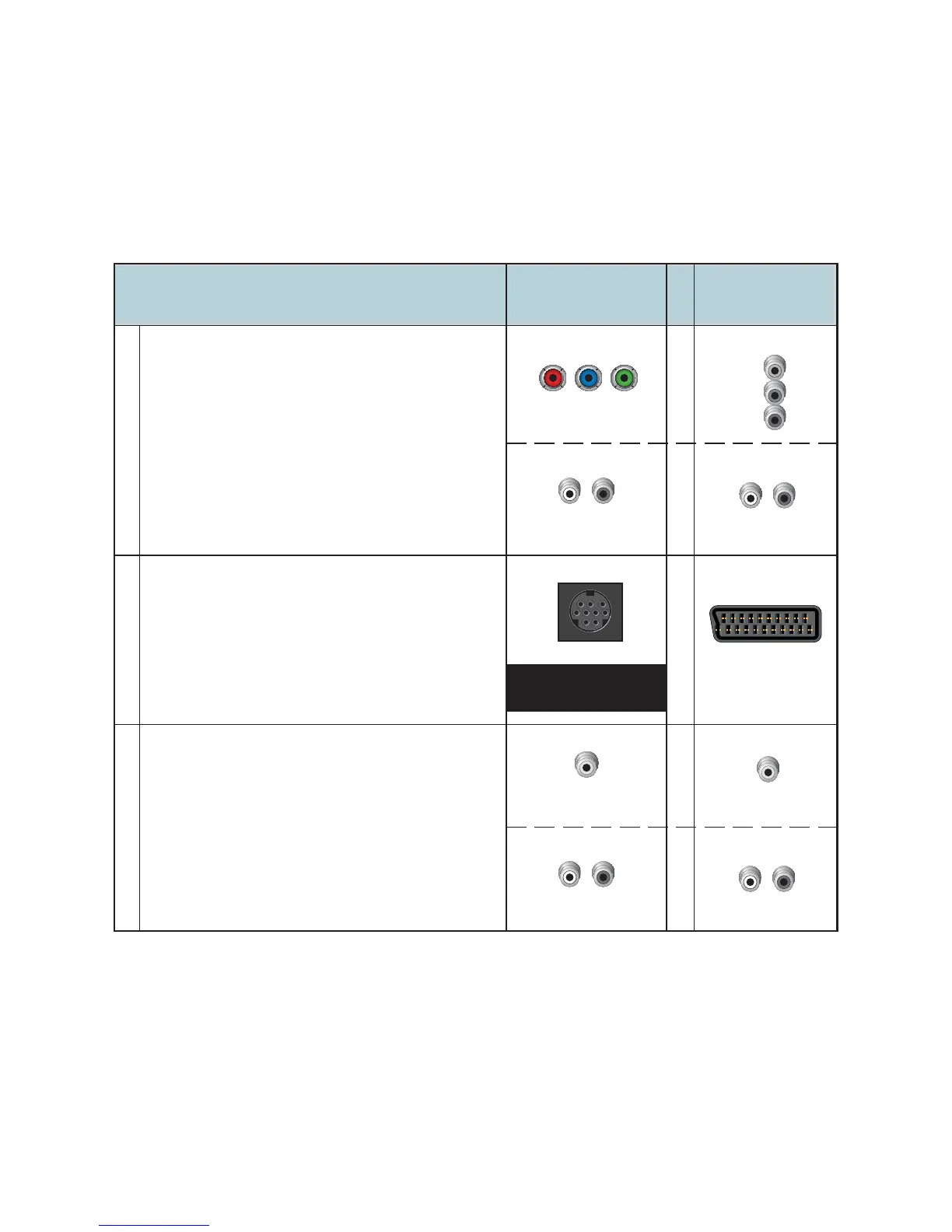

Use One of These Required
Connections to an SDTV
Set-Top
Connections
The MiniDin connector can provide standard-
de nition RGB or composite video signals and
audio to SDTV or HDTV.
See the connection diagram on page 22 for
an example.
The Video Out connector pr
ovides a video
connection to an SDTV. A separate audio
connection is also needed.
See the connection diagram on page 21 for
an example.
SCART
Video Out
