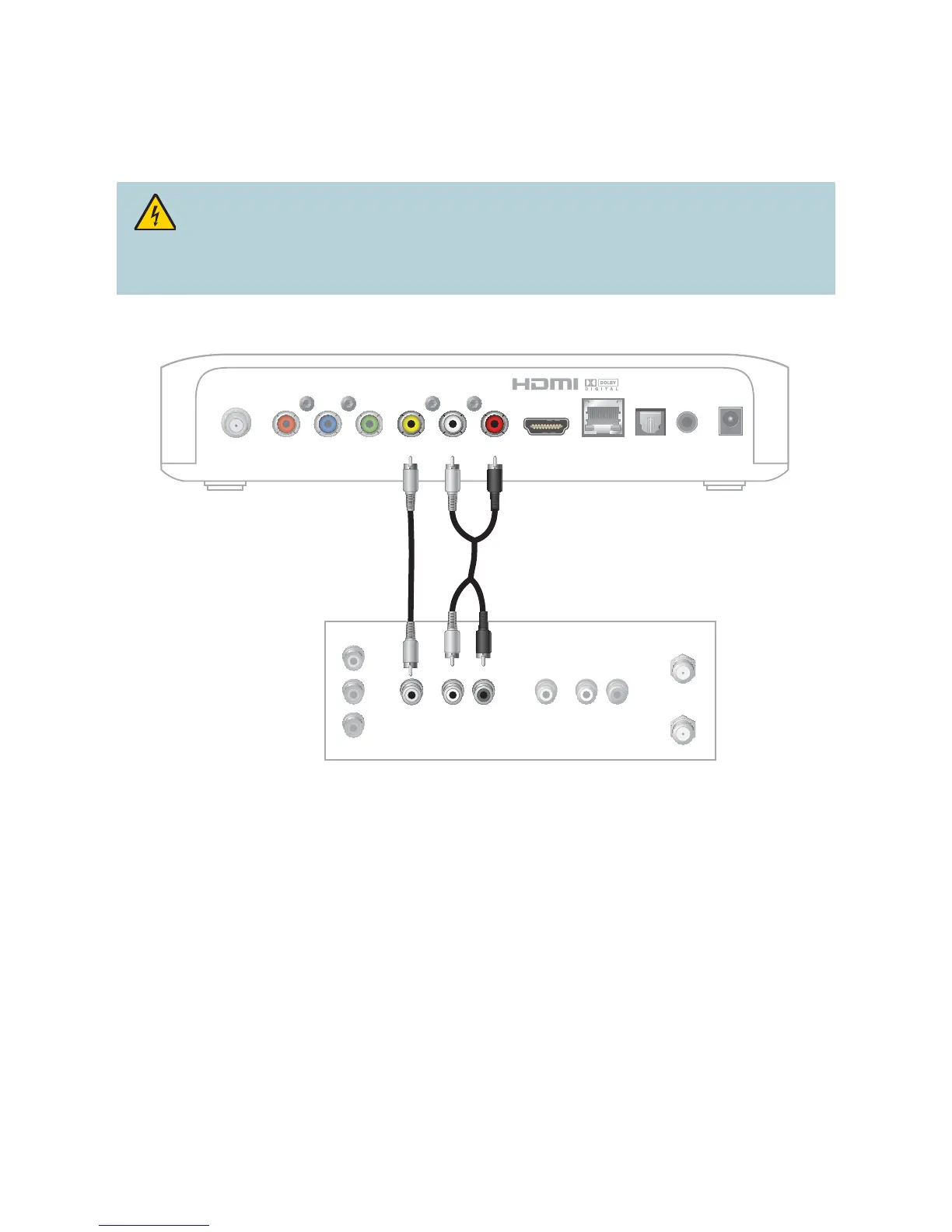

Connecting to an SDTV with an RCA-Type Connector
Cables Used in this Con guration
• 1 RCA-type Video Cable
• 1 Audio Left/Right Cable
WARNING:
Electric shock hazard! Unplug all electronic devices before connecting or
disconnecting any device cables to the set-top.
T16447
Back of Set-Top
LRPr Pb Y CVBS HDMI NETWORK OPTICAL
POWER
F-Con IR
CABLE OUT/
ANT OUT
RL
AUDIO
IN
VIDEO
IN
RL
AUDIO
OUT
VIDEO
OUT
Y
PB
PR
CABLE IN/
ANT IN
Back of SDTV
