Cisco IPV6015 User Manual

20

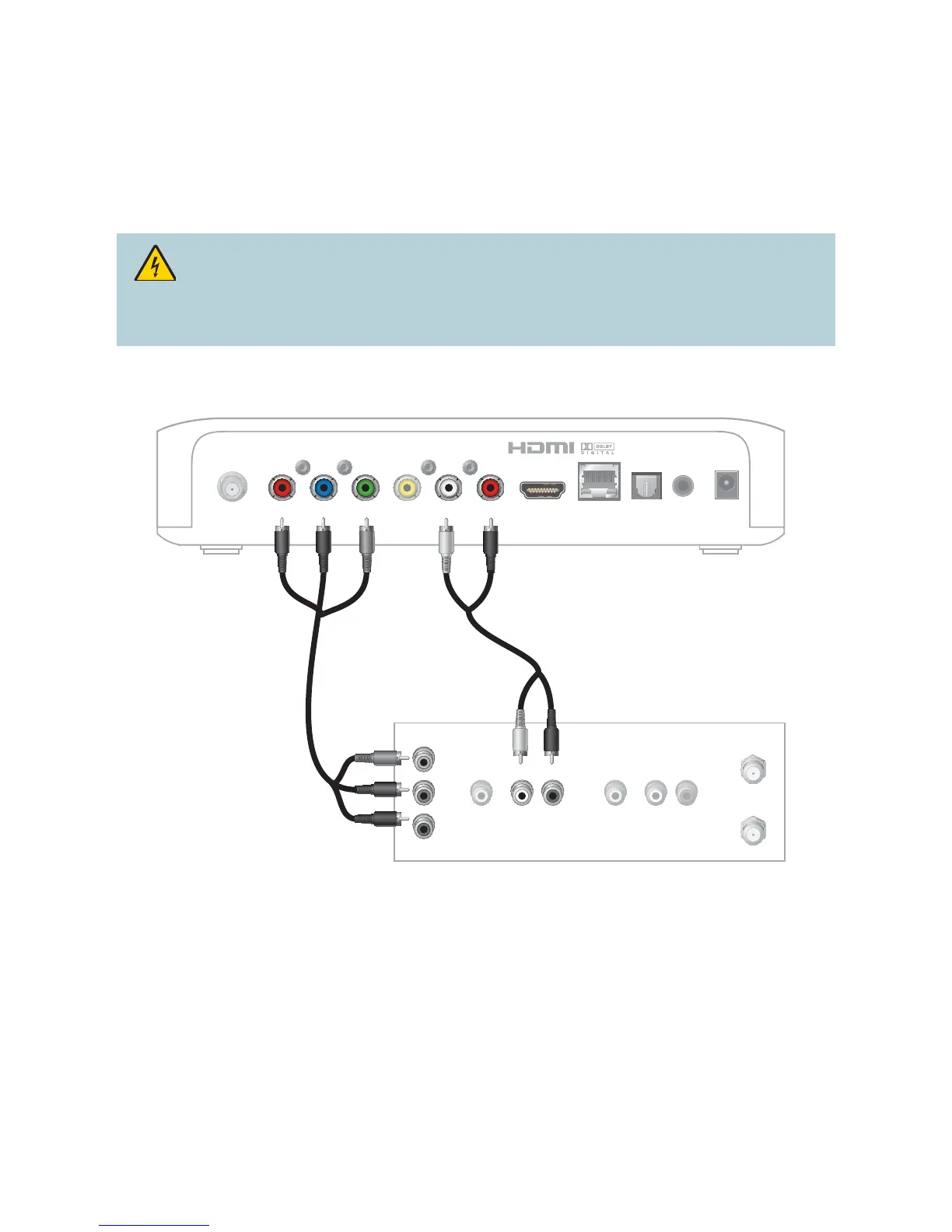

Connecting to an SDTV with Component (YPbPr)
Connectors
Cables Used in this Con guration
• 1 Component Video Cable (YPbPr)
• 1 Audio Left/Right Cable
Note: The set-top must be set to the proper standard-de nition mode.
WARNING:
Electric shock hazard! Unplug all electronic devices before connecting or
disconnecting any device cables to the set-top.
Back of Set-Top
LRPr Pb Y CVBS HDMI NETWORK OPTICAL
POWER
F-Con IR
Back of SDTV
CABLE OUT/
ANT OUT
CABLE IN/
ANT IN
RL
AUDIO
IN
VIDEO
IN
RL
AUDIO
OUT
VIDEO
OUT
Y
PB
PR
T16446
