Cisco ISB7105 User Manual

14

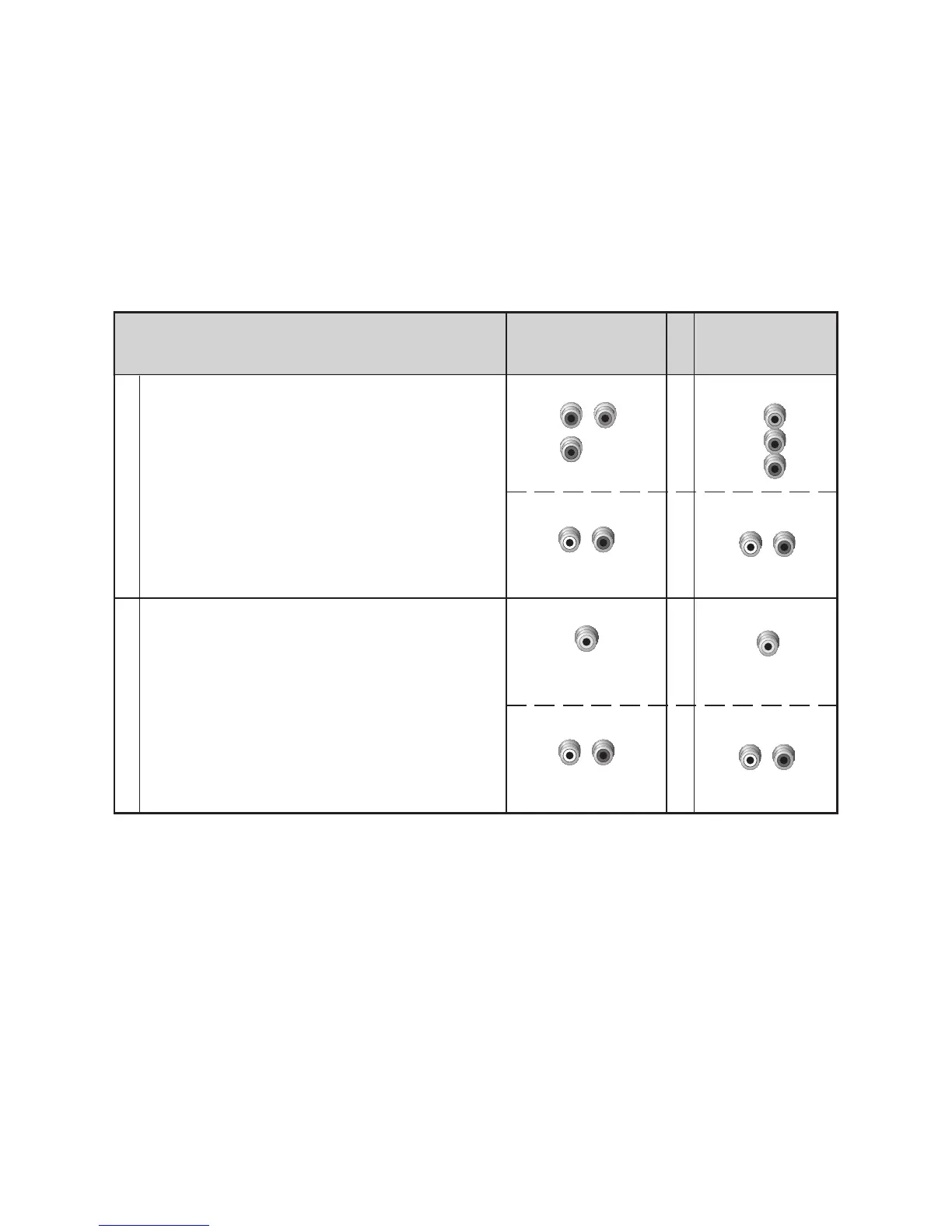

Connections for a Standard-De nition TV (SDTV)
When using the receiver with an SDTV, you must make one of the following connections
to view content. Some SDTVs may not have all these connections. Refer to the
owner’s manual for your TV and the cabling diagrams in this manual for more detailed
information.
Although all connections provide you with quality service, we list the connections in our
recommended order.
Notes:
• The labeling on your receiver or SDTV may vary slightly from the illustrations shown
below.
• Some cables shown in the connection diagrams may not be included with this receiver.
The YPbPr (red, blue, and green)
connectors can provide standard-de nition
component video signals to an SDTV. A
separate audio connection is also needed.
See the connection diagram on page 19
for an example.
SDTV
Connections
Use One of These Required
Connections to an SDTV
Receiver
Connections
The Video Out connector provides a video
connection to an SDTV. A separate audio
connection is also needed.
See the connection diagram on page 20
for an example.
Video Out
VIDEO
OUT
VIDEO
IN
L R
Pr
Pb
Y
L R
YPbPr
Audio VideoAudio Video
Pr
Pb Y
AUDIO
OUT
L R
AUDIO
OUT
L R
