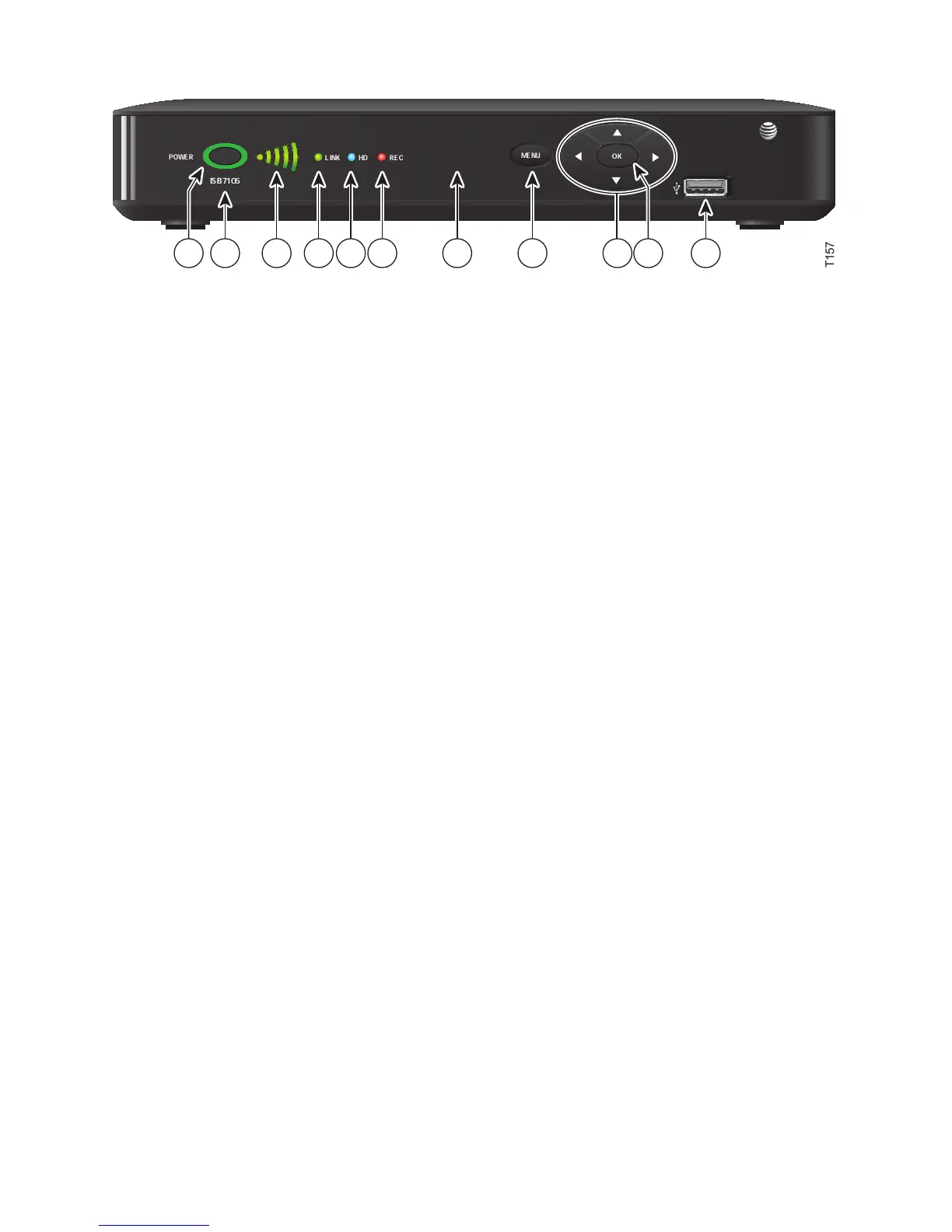

Front Panel
1 Power Turns the receiver on or places it in standby. To restart the
receiver, press and hold the POWER button for 10 seconds. The
LED is green
2 Model Number Identi es the model number of your receiver as ISB7105
3 Signal Strength Identi es the strength of the wireless connection
Indicator
4 Link Indicates network link status. The LED is green
5 HD Indicates the receiver is set to a resolution of 720p, 1080i, or
1080p. The LED is blue
6 Record Indicates that a recording is in progress. The LED is red
7 IR Sensor Receives the infrared signal from the remote control. The sensor
is behind the front panel
8 Menu Accesses the on-screen menu
9 Arrow Keys Accesses on-screen services (such as the on-screen guide,
video-on-demand, or pay-per-view) and navigates menus
10 OK Selects the current item
11 USB Port USB connector. (Reserved for future use)
Note: This illustration may vary from the actual product.
