9

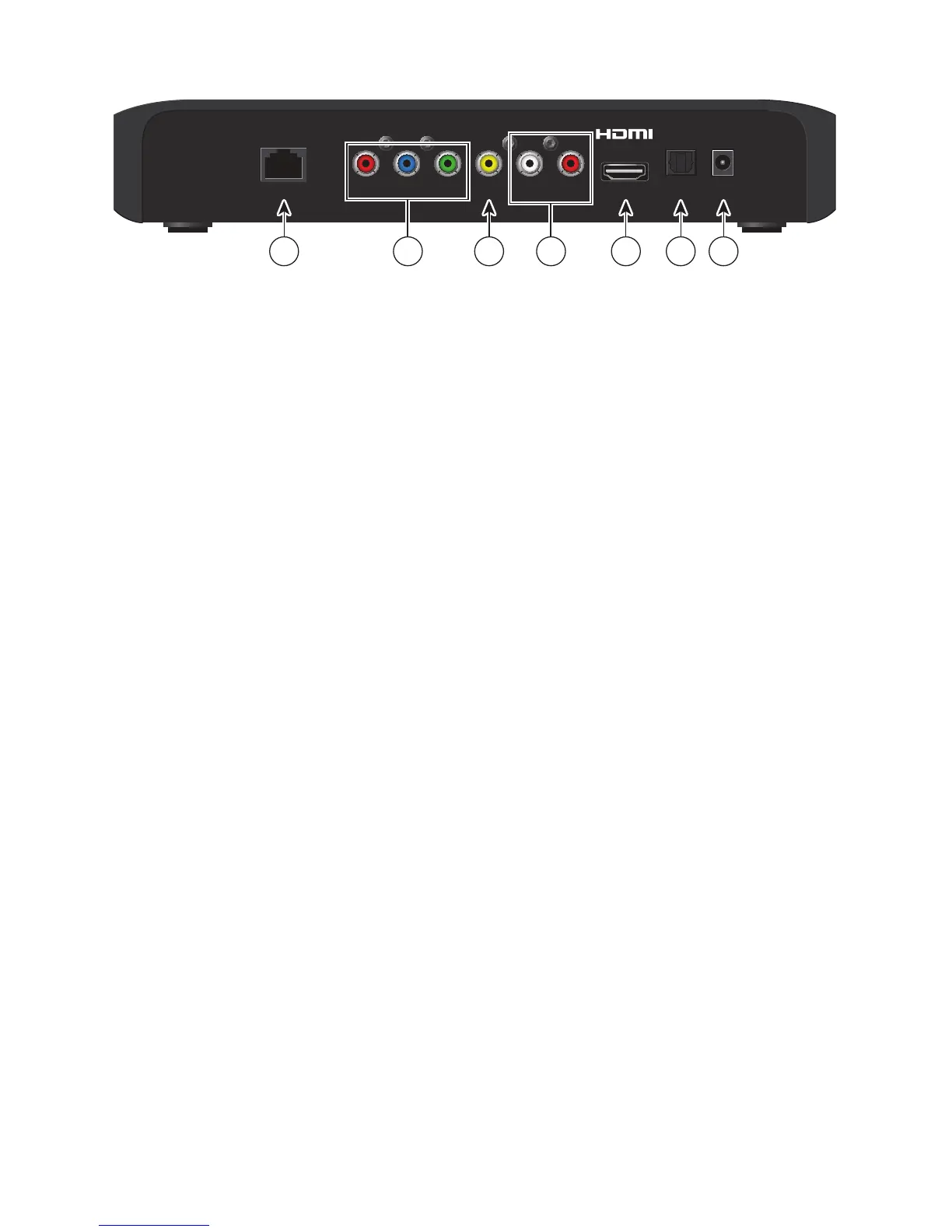

Back Panel
1 Network Connect to the Ethernet (CAT-5) network at your home, if
applicable
2 YPbPr Connect the receiver to the component video input (YPbPr) on
the HDTV. See pages 13 and 14 for more information
3 Video Out Connect to composite input on your HDTV or SDTV
4 Audio Out (L/R) Connect RCA-type cables to Audio Out to send analog audio
signals (left and right) to a TV with stereo inputs or to a stereo
ampli er
5 HDMI Connect an HDTV HDMI (High-De nition Multimedia Interface)
cable from the HDTV to the HDMI port. HDMI supports both
digital audio and video. See page 13 for more information
6 Optical Connect an optical cable to send a digital audio signal to a
surround-sound receiver or other digital audio device
7 Power Connect the DC output of the AC power adapter (provided) to
deliver power to the receiver
Note: This illustration may vary from the actual product.
