Cisco ISB7105 - Connecting to a Home Theater System with Component (YPbPr) Connectors; Home Theater Component Cable Configuration; Home Theater Audio Note

21

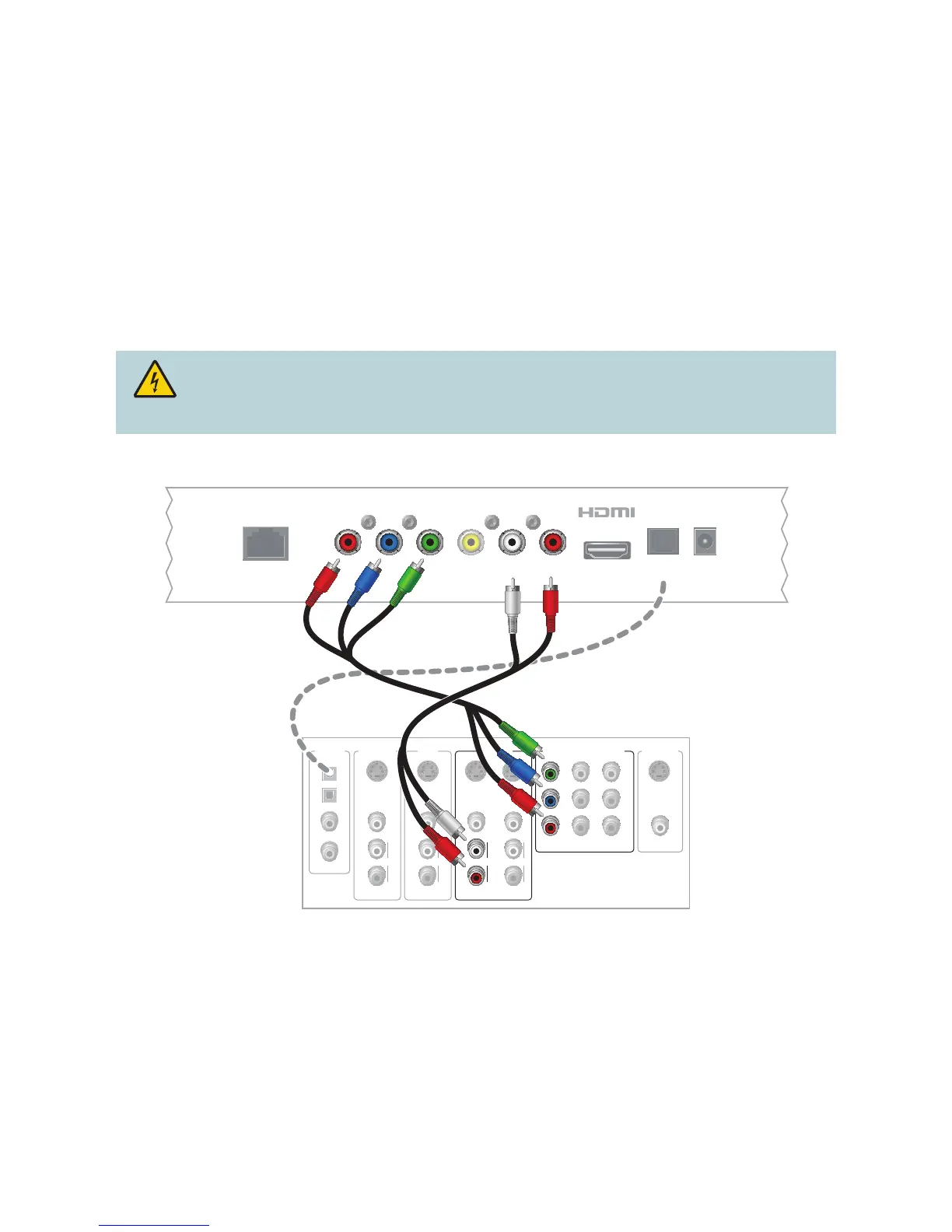

Connecting to a Home Theater System
with Component (YPbPr) Connectors
Cables Used in this Con guration
• 1 Component Video Cable (YPbPr)
• 1 Audio Left/Right Cable (You can also use an optical cable [indicated by the dotted
line] instead of the Audio Left/Right Cable as shown in the diagram.)
Notes:
• This connection requires that audio is provided by the home theater system.
• Consult the user guide that came with your home theater system for information on
connecting your other video and audio devices.
WARNING: Electric shock hazard! Unplug all electronic devices before
connecting or disconnecting any device cables to the receiver.
T15883
Receiver
NETWORK
L R
Pr Pb Y
VIDEO
OUT
AUDIO
OUT
OPTICAL POWER
HDMI
®
Back of Home
Theater Receiver
COMPONENT VIDEO
1
Y
PB
PR
2
Y
PB
PR
Y
PB
PR
S-VIDEO
DIGITAL
AUDIO
TV/CABLE
1
2
3
4
VIDEO
L
R
AUDIO
S-VIDEO
DVD
VIDEO
L
R
AUDIO
VIDEO
L
R
AUDIO
S-VIDEO
VIDEO 1
S-VIDEO
OUT
VIDEO OUT
MONITOR
VIDEO
L
R
AUDIO
S-VIDEO
OUTIN
OUTIN
OR
