Cisco MDS 9000 Series Installing

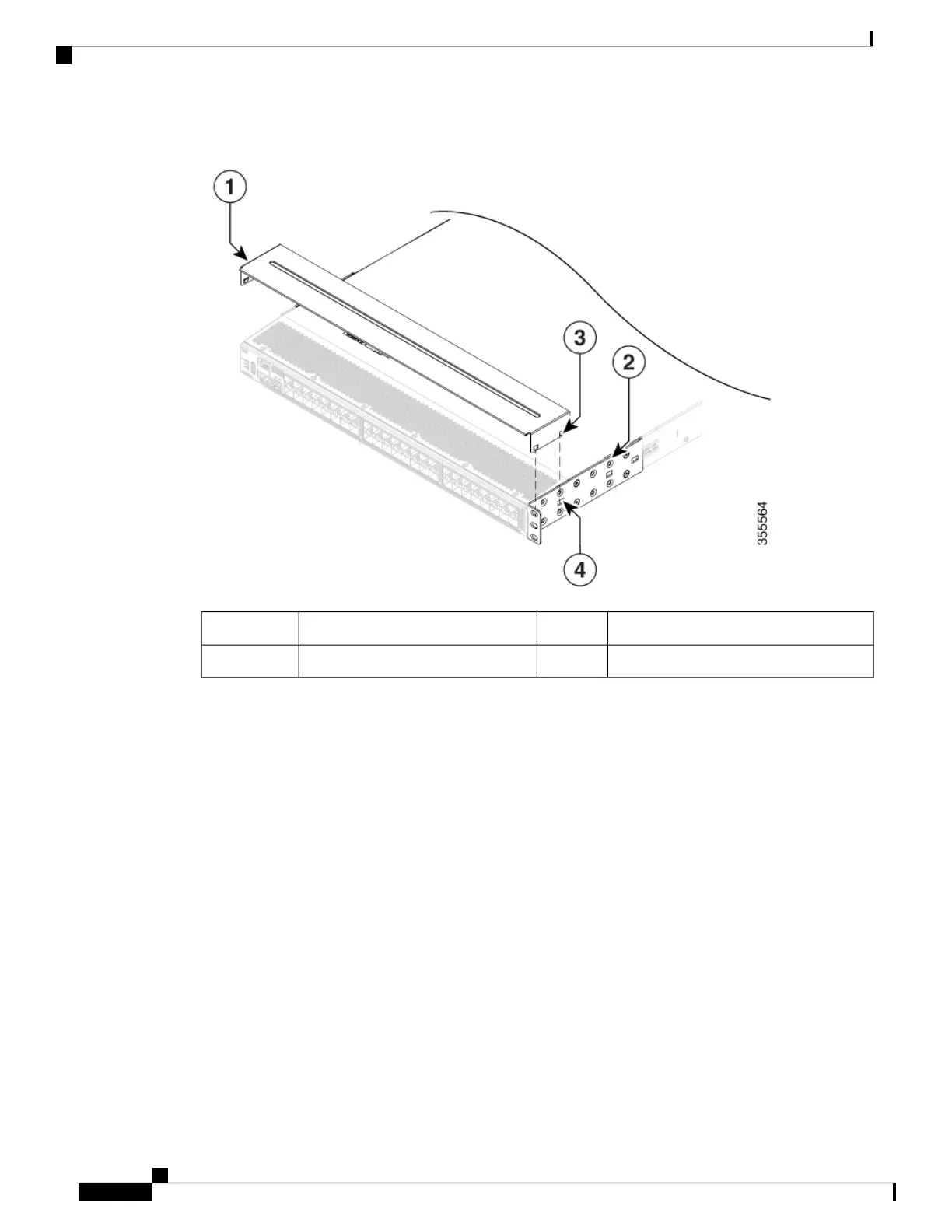

Figure 4: NEBS Kit for 4-Post Installation
notch3NEBS air baffle1
slot4NEBS rack-mount brackets2
For more information on how to install the switch, see the Installing the Switch in a 4-Post Rack and Installing
the Switch into a 2-Post Rack.
Installing the Switch
This section describes how to use the rack mount kit to install the Cisco MDS 9148T switch into a cabinet or
rack that meets the requirements described in the Cabinet and Rack Requirements section.
Installing the Switch in a 4-Post Rack
To install the switch, you must attach the front and rear mounting guides to the switch, install the slider rails
on the rear of the rack, slide the switch into the slider rails, and secure the switch to the front of the rack.
Typically, the front of the rack is the side that is easiest to access for maintenance.
Before you begin
• Inspect the switch shipment to ensure that you have everything you ordered.
• Make sure that the switch rack-mount kit includes the following parts:
Installing the Cisco MDS 9148T Switch
8
Installing the Cisco MDS 9148T Switch
Installing the Switch
