MX75 Back Panel Functions
Additional functions on the back panel are described below, from left to right.
USB port
USB 3.0 for external 3G/4G wireless modems. Traffic status is indicated by
the USB LED.
WAN / Internet port This port provides connectivity to the WAN.
LAN ports
These 10 ports provide connectivity to computers, printers, access points, or
Ethernet switches.
A steady green LED indicates bidirectional connectivity, and flashing green
indicates traffic.
Power input Designed for use only with the unit’s power supply.
Reset button
Insert a paper clip if a reset is required.
Press for 1 second to delete a downloaded configuration and reboot.
Press and hold for more than 10 seconds to force a full factory reset.
Side Panels
MX75
MX75 Side Panel Functions

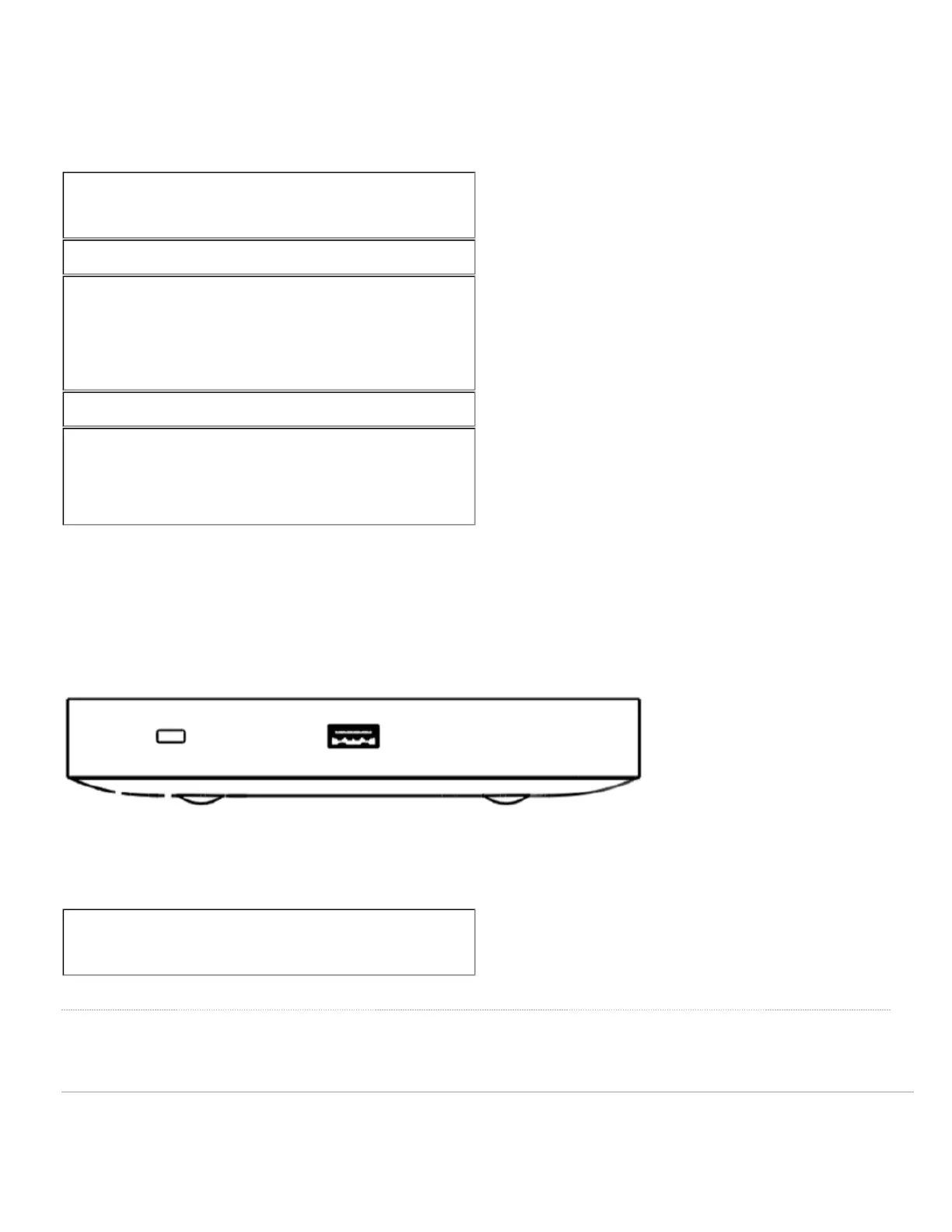

Additional functions on the side panel are described below, from left to right.
USB port
USB 2.0 for 3G/4G wireless cards. Traffic status is indicated by the USB
LED.
Bottom Panel
5
