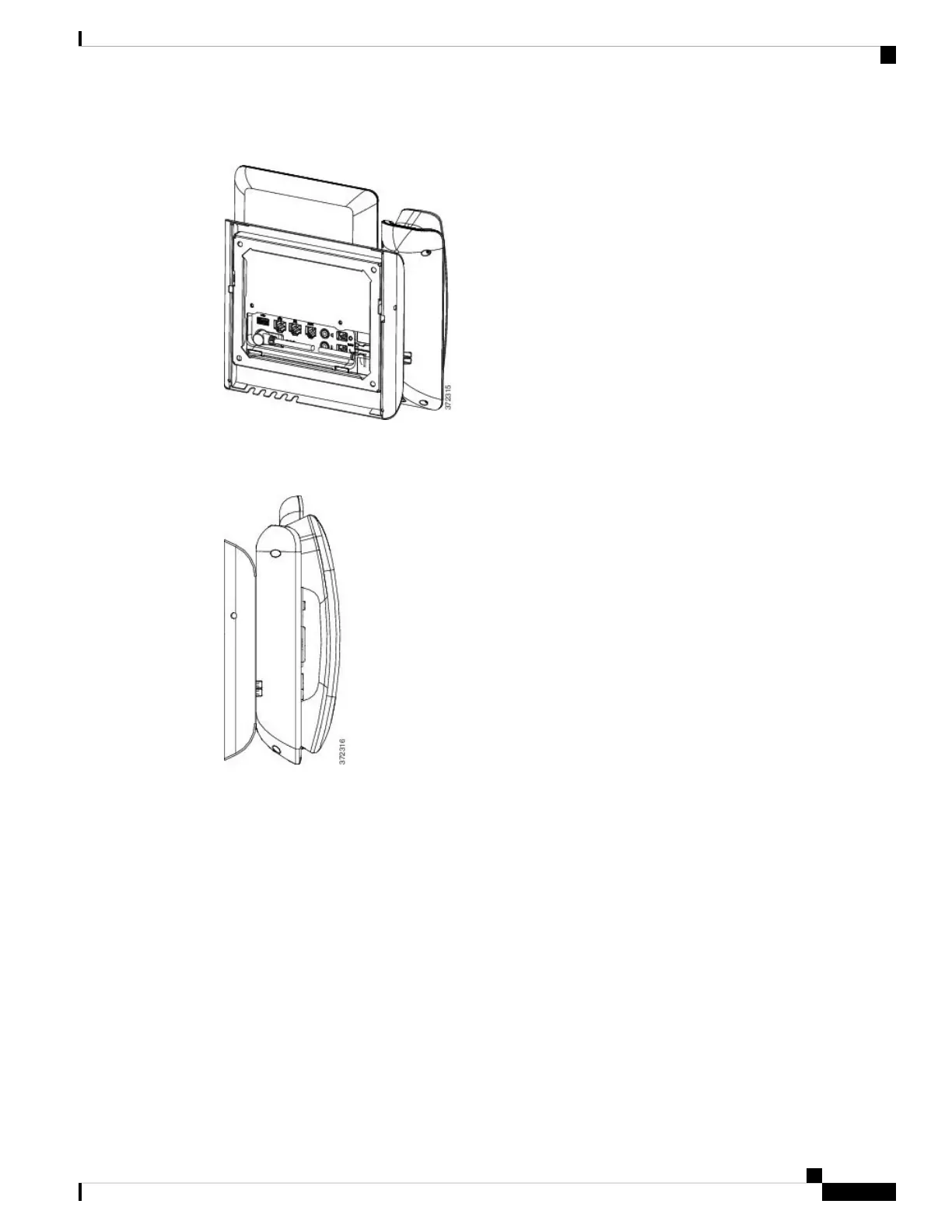

Figure 7: Back view of Wall Mount Kit Installed on Phone
The following figure shows the phone with the wall mount kit from the side.
Figure 8: Side View of Wall Mount Kit Installed on Phone
Install the Non-Lockable Wall Mount Kit for Phone
The wall mount kit can be mounted on most surfaces, including concrete, brick, and similar hard surfaces.
To mount the kit on concrete, brick, or similar hard surfaces, you must provide the appropriate screws and
anchors for your wall surface.
Before you begin
You need these tools to install the bracket:
• #1 and #2 Phillips-head screwdrivers
• Level
• Pencil
Cisco IP Phone Accessories
35
Cisco IP Phone Accessories
Install the Non-Lockable Wall Mount Kit for Phone
