Chapter 6 PIX 525
Removing and Replacing the PIX 525 Chassis Cover

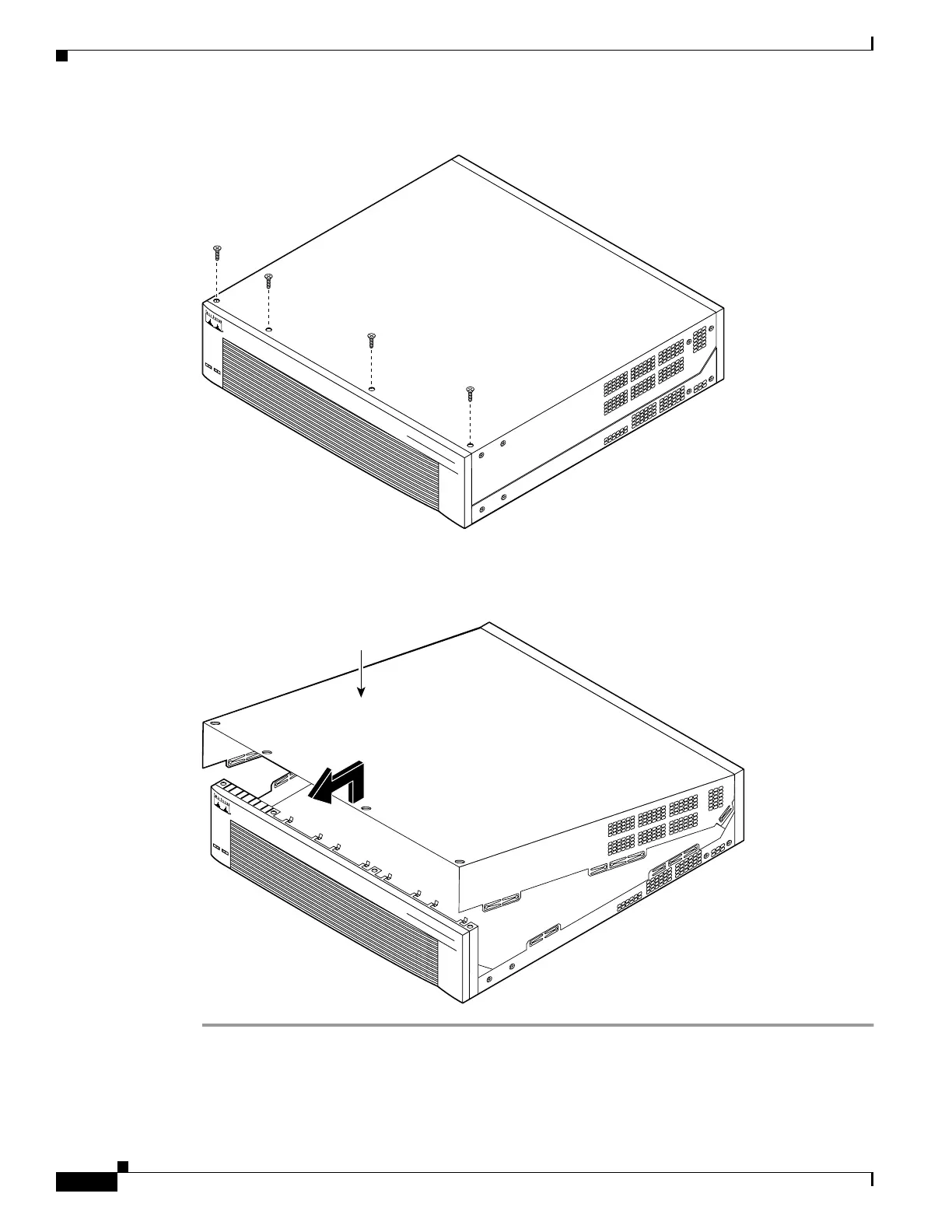

Figure 6-8 Removing the Chassis Cover Screws
Step 4 Lift the chassis cover upward and pull it away from the tabs on the rear of the chassis. (See Figure 6-9.)
Figure 6-9 Removing the Chassis Cover
