6-23
Cisco PIX Firewall Hardware Installation Guide
78-15170-01
Chapter 6 PIX 525
Installing a DC Power Supply
Step 8 Reinstall the remaining fan. Make sure you orient the fan so that the cables feed to the right (toward the
second fan). Route the cable over the fan before you reconnect it. When correctly assembled, the cables
appear as shown in Figure 6-23.
Step 9 Starting with the fan farthest away from the power supply, bend the cable clamps over wires and into
the gap between chassis and fan housing.

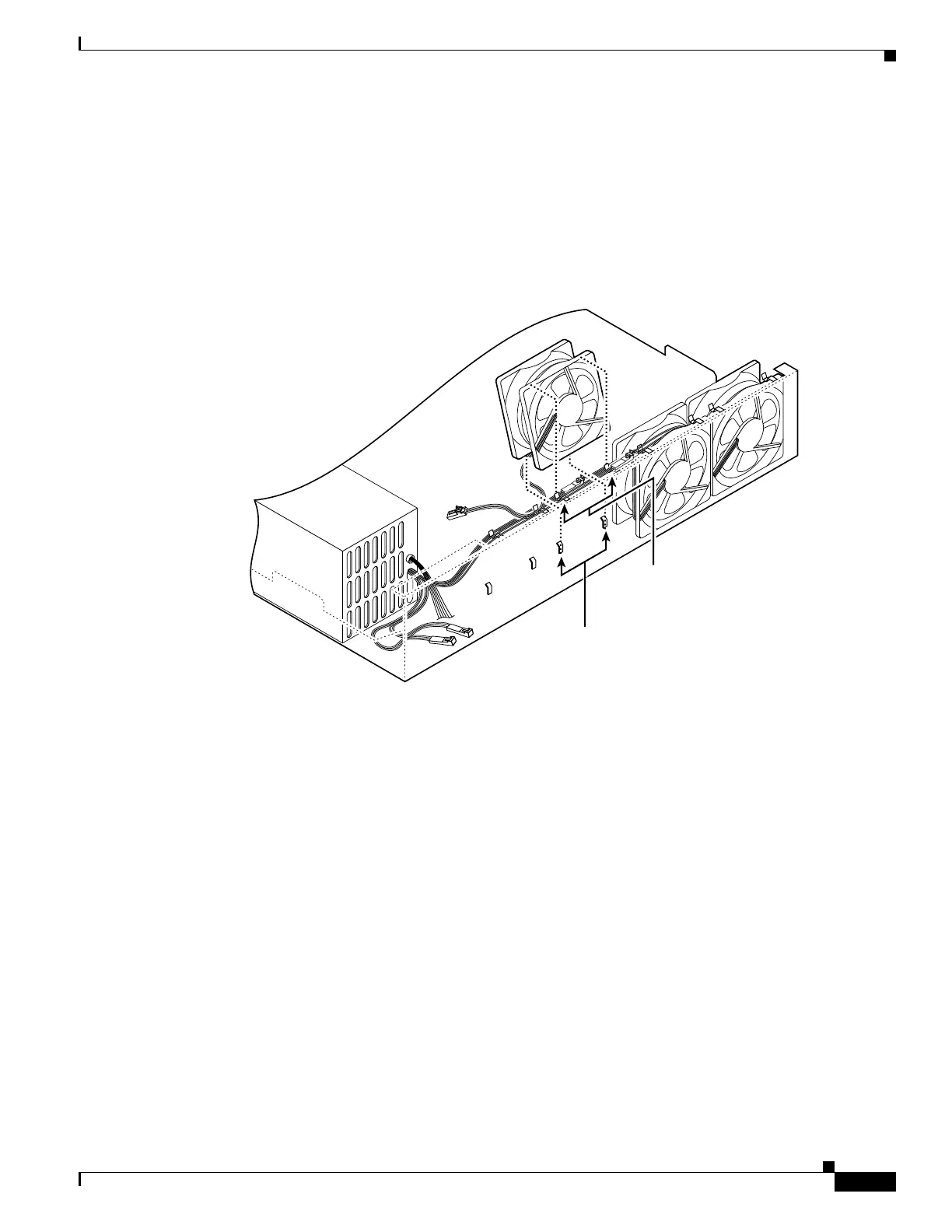

Figure 6-23 Correct Fan Cable Routing
31109
Front panel
Sheet metal tabs
Base tabs
