Step 2 Crimp the ground wire to the ground lug or ring terminal, using a crimp tool of the appropriate size.
Step 3 Attach the ground lug or ring terminal to the chassis as shown in Figure 13, Figure 14, Figure 15, Figure 16, or
Figure 17. For a ground lug, use the two screws with captive locking washers provided. For a ring terminal, use one of
the screws provided. Tighten the screws to a torque of 8 to 10 in-lb (0.9 to 1.1 N-m).
Note The Cisco 2801 router is not NEBS-compliant.
Step 4 Connect the other end of the ground wire to a suitable grounding point at your site.

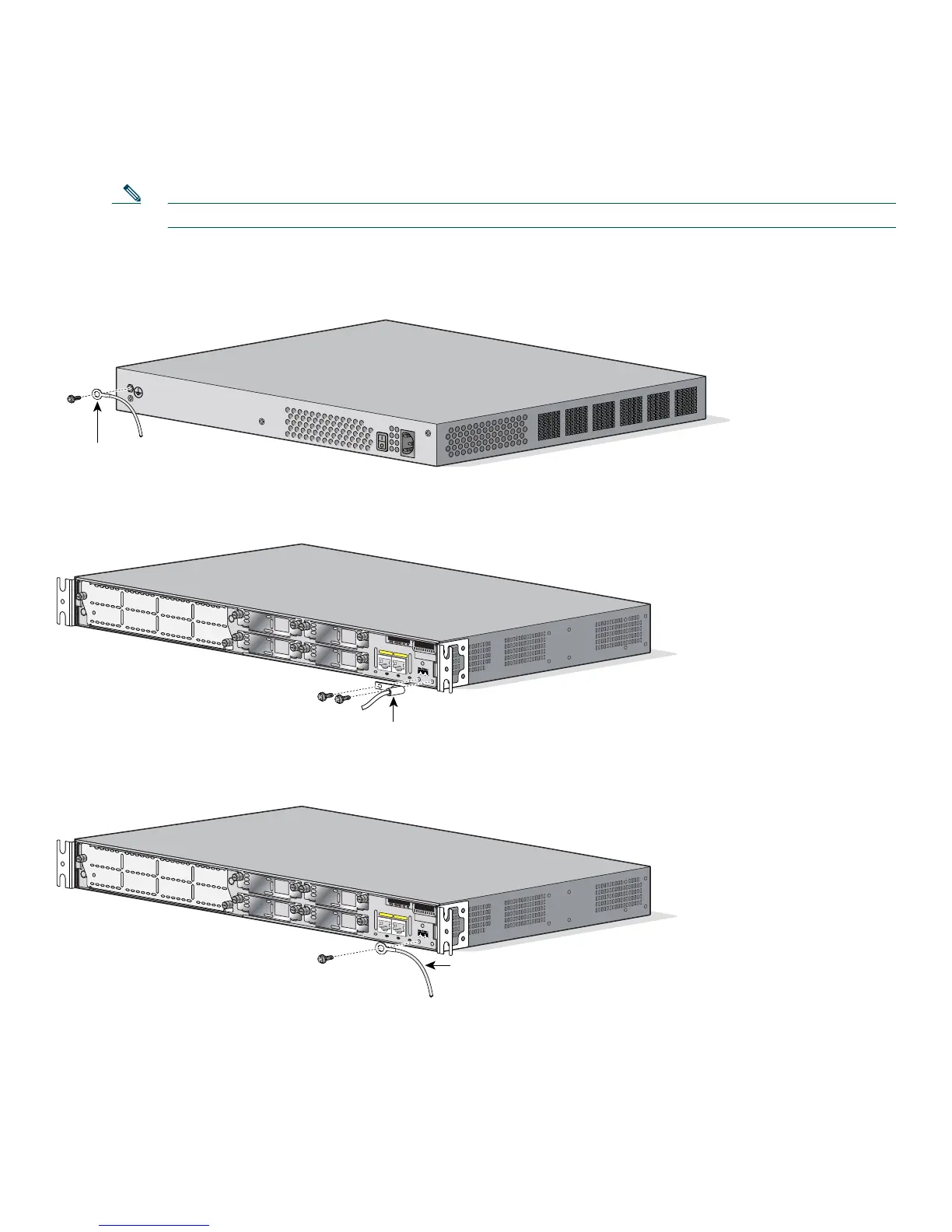

Figure 13 Chassis Ground Connection on Cisco 2801 Chassis
Figure 14 NEBS-Compliant Chassis Ground Connection on Cisco 2811 Chassis
Figure 15 Chassis Ground Connection Using Ring Terminal on Cisco 2811 Chassis
117082
Ring terminal
attachment
98808
Ground lug
