Cisco Secure Network Server 3600 Series - Rear Panel Leds

• Green—The server is operating at normal temperature.
• Amber, steady—One or more temperature sensors
breached the critical threshold.
• Amber, blinking—One or more temperature sensors
breached the non-recoverable threshold.
Temperature status9
Rear Panel LEDs
The following figure shows the rear panel LEDs of Cisco SNS 3600 series appliance.

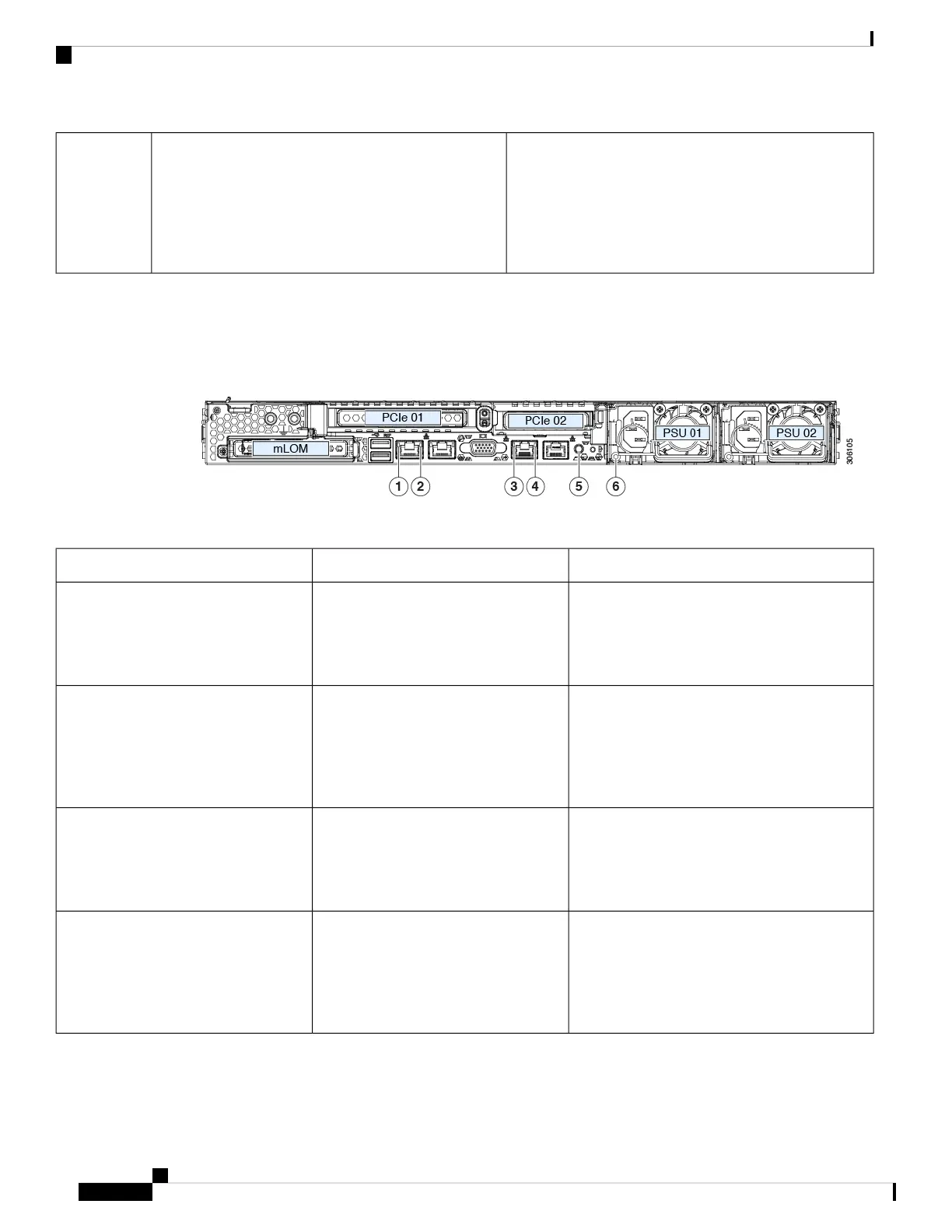

Figure 4: Rear Panel LEDs
Table 3: Rear Panel LEDs
StatesLED Name
• Off—Link speed is 100 Mbps.
• Amber—Link speed is 1 Gbps.
• Green—Link speed is 10 Gbps.
1-Gb or 10-Gb Ethernet link speed (on
both LAN1 and LAN2)
1
• Off—No link is present.
• Green—Link is active.
• Green, blinking—Traffic is present on the
active link.
1-Gb or 10-Gb Ethernet link status (on
both LAN1 and LAN2)
2
• Off—Link speed is 10 Mbps.
• Amber—Link speed is 100 Mbps.
• Green—Link speed is 1 Gbps.
1-Gb Ethernet dedicated management
link speed
3
• Off—No link is present.
• Green—Link is active.
• Green, blinking—Traffic is present on the
active link.
1-Gb Ethernet dedicated management
link status
4
Cisco Secure Network Server 3600 Series Appliance Hardware Installation Guide
8
Cisco Secure Network Server 3600 Series Appliance Overview
Rear Panel LEDs
