Cisco Content Delivery Engine 100/200/300/400 Hardware Installation Guide
OL-13478-03
Chapter 1 Overview of the Content Delivery Engines
Hardware Features
Figure 1-13 CDE100 Front Panel LEDs

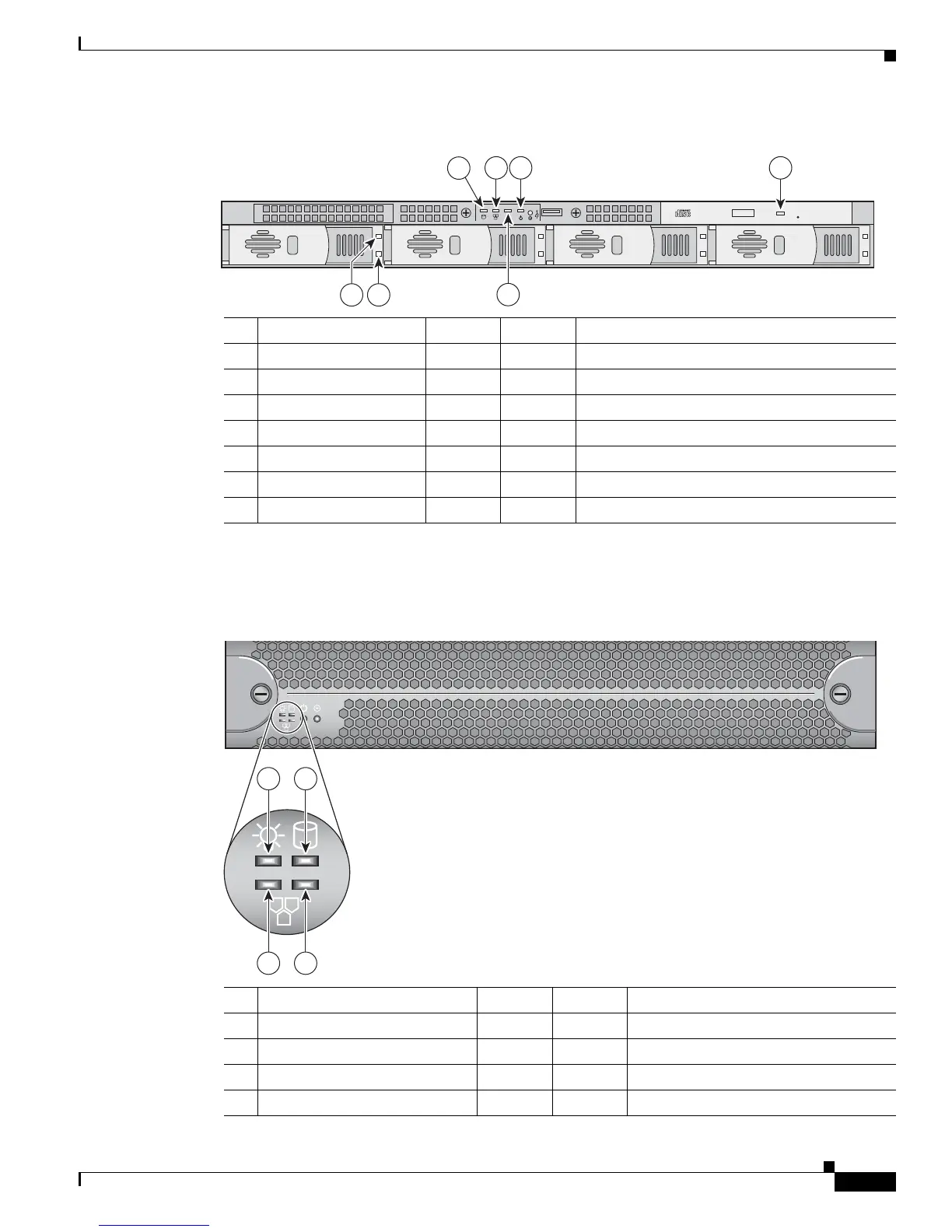

Figure 1-14 shows the location of the CDE200 front panel LEDs with the front cover on, and describes
their functions.
Figure 1-14 CDE200 Front Panel LEDs
No. LED Color State Description
1 Hard disk drive power Blue On Power is flowing to the drive.
2 Hard disk drive activity Blue On Associated hard disk drive is in use.
3 Hard disk drive activity Blue On A hard disk drive is in use.
4 Ethernet port 1 Blue On Port is connected.
5 Ethernet port 2 Blue On Port is connected.
6 Power Blue On Device is powering on.
7 CD-ROM drive activity Blue On CD-ROM drive is in use.
211768
74 6
5
3
2
1
No. LED Color State Description
1 Power Blue On Device is powering on.
2 Hard disk drive activity Blue On A hard disk drive is in use.
3 Ethernet port 1 Blue On Port is connected.
4 Ethernet port 2 Blue On Port is connected.
211769
12
12
3 4
1 2
