Chapter 1 Overview of the Content Delivery Engines
Hardware Features

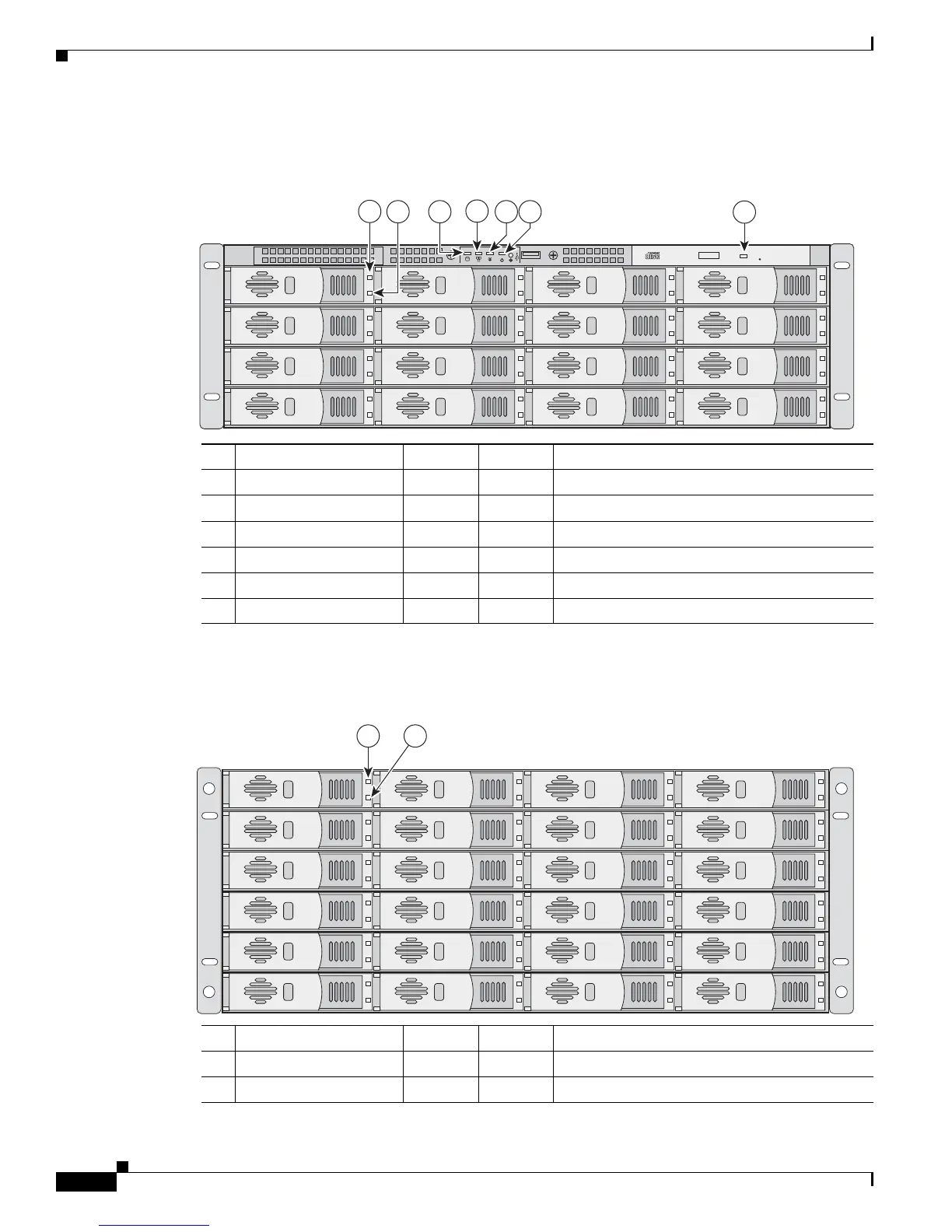

Figure 1-15 shows the location of the CDE300 front panel LEDs, and describes their functions.
Figure 1-15 CDE300 Front Panel LEDs
Figure 1-16 shows the location of the CDE400 front panel LEDs, and describes their functions.
Figure 1-16 CDE400 Front Panel LEDs
No. LED Color State Description
1 Hard disk drive power Blue On Power is flowing to the drive.
2 Hard disk drive activity Blue On Associated hard disk drive is in use.
3 Hard disk drive activity Blue On A hard disk drive is in use.
4 Ethernet port 1 Blue On Port is connected.
5 Ethernet port 2 Blue On Port is connected.
6 Power Blue On Device is powering on.
270626
7
4
1
32 5 6
No. LED Color State Description
1 Hard disk drive power Blue On Power is flowing to the device.
2 Hard disk drive activity Blue On Associated hard disk drive is in use.
270627
2
1
