Cisco SF352-08P Administration Guide

Dashboard
PoE Utilization
36 Cisco 350, 350X and 550X Series Managed Switches, Firmware Release 2.4, ver 0.4
3
• Refresh Time—Select one of the displayed options.
• Interface Statistics—Link to the Status and Statistics -> Interface page.
PoE Utilization

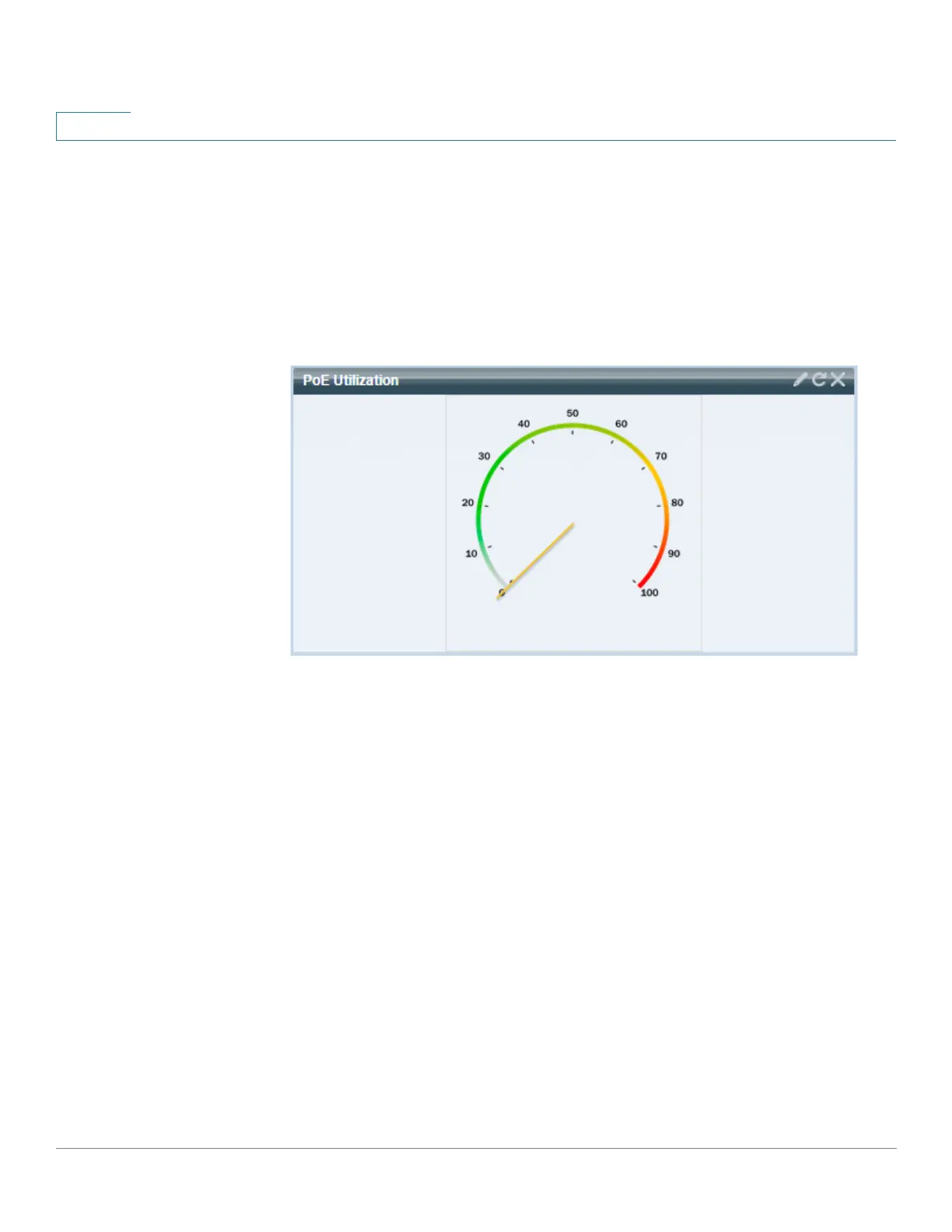

This module displays a graphic representation of the PoE utilization status., as shown below:
For a standalone unit, this module displays a gauge with a dial of values from 0-100. The
section of the dial from the traps threshold to 100 is red. In the middle of the gauge, the actual
PoE utilization value is shown in watts.
Each bar represents the PoE utilization percentage value of the device on a scale of 0 to 100. If
the PoE utilization is higher than the traps threshold, the bar is red. Otherwise the bar is green.
When hovering on a bar, a tooltip appears showing the actual PoE utilization of the unit in
watts.
Additional views can be selected in the configuration options (pencil icon in upper-right
corner).
• Refresh Time—Select one of the displayed options.
• PoE Global Properties—Link to the Port Management -> PoE -> Properties page.
• PoE Port Settings—Link to the Port Management -> PoE -> Settings page.
