Smart Network Application (SNA)
Topology View
Cisco Sx350, SG350X, SG350XG, Sx550X & SG550XG Series Managed Switches, Firmware Release 2.2.5.x 647
29
Figure 1 is a sample graphical representation of a network that includes information on
individual devices and the connections between them

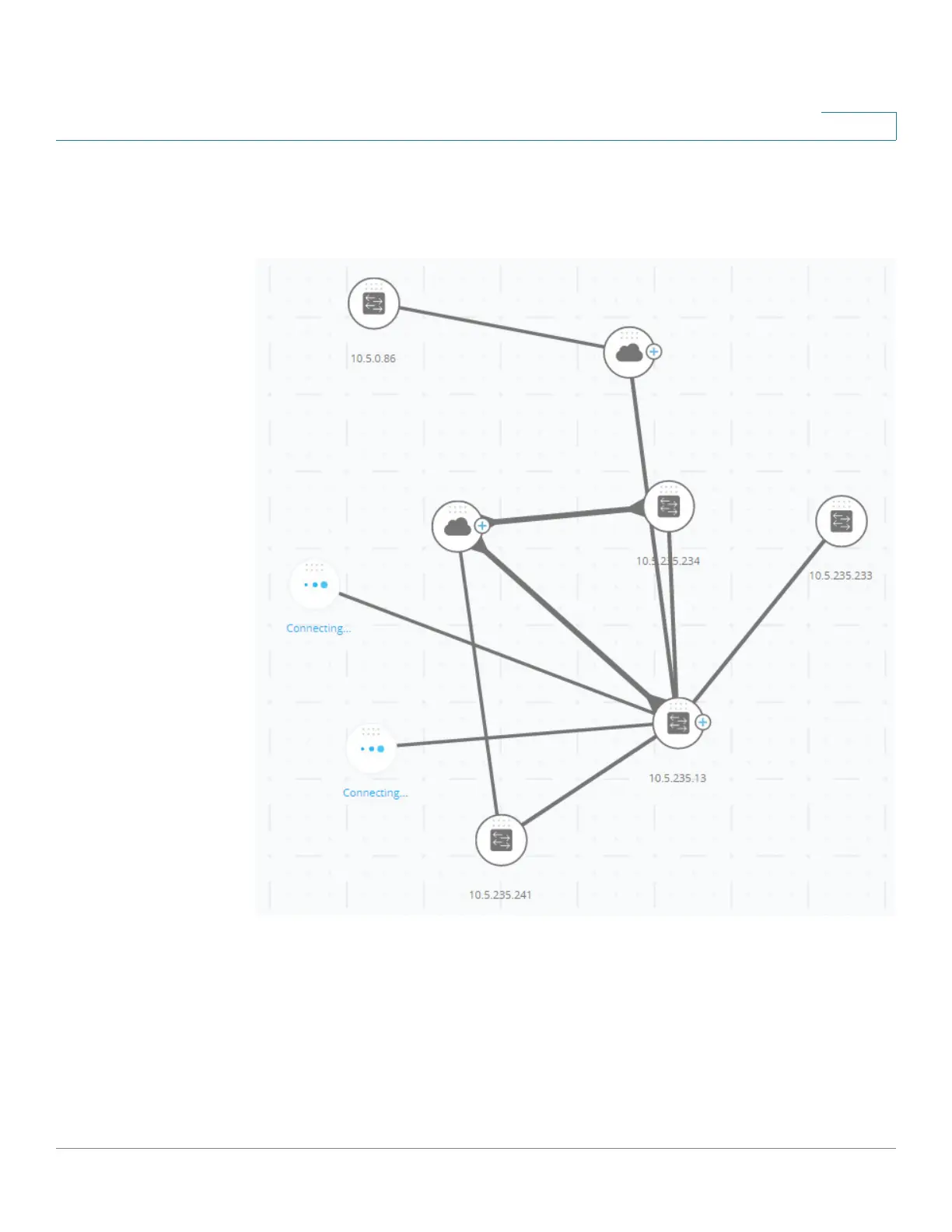

Figure 1 Topology View:
See Icon Descriptions for a description of the network nodes shown in Figure 1.
Various overlays can be selected for the topology views that affect the graphic representation
of elements. See Topology Overlays.
The topology discovery mechanism uses information gathered from LLDP and CDP TLVs to
identify devices in the network.
