Cisco SPA122 ATA Quick Install Guide

QUICK INSTALL GUIDE
Fax Extension for the Cisco SPA122 ATA
NASDAQ: EGHT
www.8x8.com
© 2012. The 8x8, Inc. logo is a registered trademark of 8x8, Inc. 8x8, Inc. is a publicly traded company. PM484/312
The Champion
For Business
Communications
Installing your Cisco SPA122 ATA

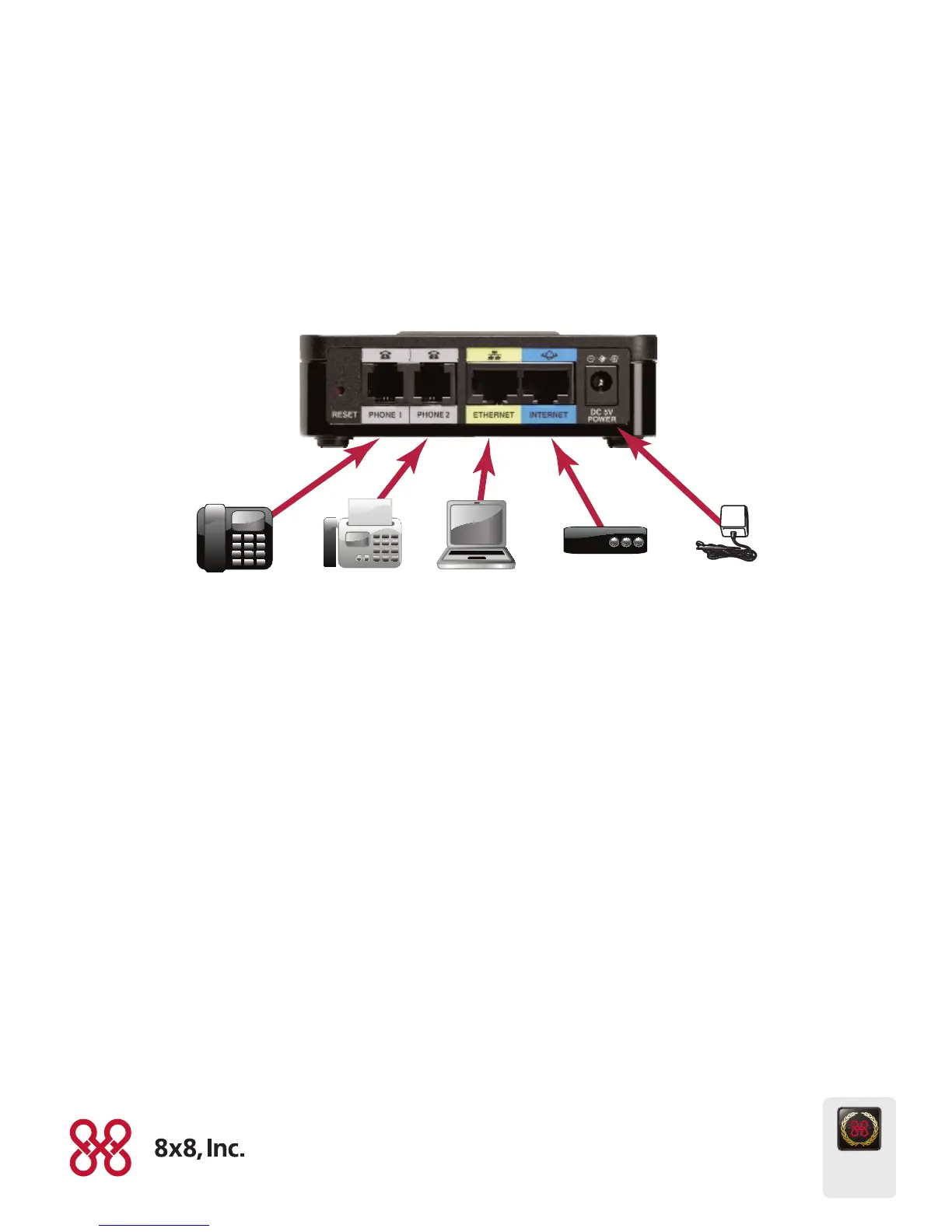

• Connect your fax machine to the PHONE 1 port on the back of your Cisco SPA122 ATA.
– If you purchased a 2nd-Port Fax Plan, connect that fax to the PHONE 2 port.
• Disconnect the power adapter on your Cisco ATA and reconnect it after a few seconds.
• You are now ready to place fax calls.
Fax Machine
(2nd-Port Fax Plan Only)
Computer or
Laptop
Internet Connection
(Router or Broadband Modem)
Power AdapterAnalog Phone, Fax
or Paging System
NOTE: If you do not have a router, you can connect your Cisco SPA122 ATA directly into a broadband modem. Please refer to the
Cisco SPA122 ATA Quick Start Guide at http://www.8x8.com/Support/BusinessSupport/Documentation.aspx on how to congure this.

Cisco SPA122 ATA Specifications

General

Voice Ports	2 FXS ports
WAN Port	1 10/100 Mbps Ethernet port
LAN Port	1 10/100 Mbps Ethernet port
Humidity	10% to 90% non-condensing
Protocols	SIP
Network Ports	1 10/100 Mbps Ethernet port
Fax Support	T.38 fax relay
Security	HTTPS
QoS	802.1p
Power Supply	5V DC, 2.0A
Dimensions	101 mm x 101 mm x 28 mm
Weight	0.16 kg
Operating Temperature	0°C to 45°C
Storage Temperature	140°F (-20°C to 60°C)
