Cisco TelePresence MX200 G2 Installation Guide

4
Secure floor stand
Option A (free standing with feet) is described on the previous page.
78-100574-02A0 | 2016 JUNE | © 2016 Cisco Systems, Inc. All rights reserved.
Installation guide for Cisco TelePresence MX800 Dual - Floor stand
Page 9

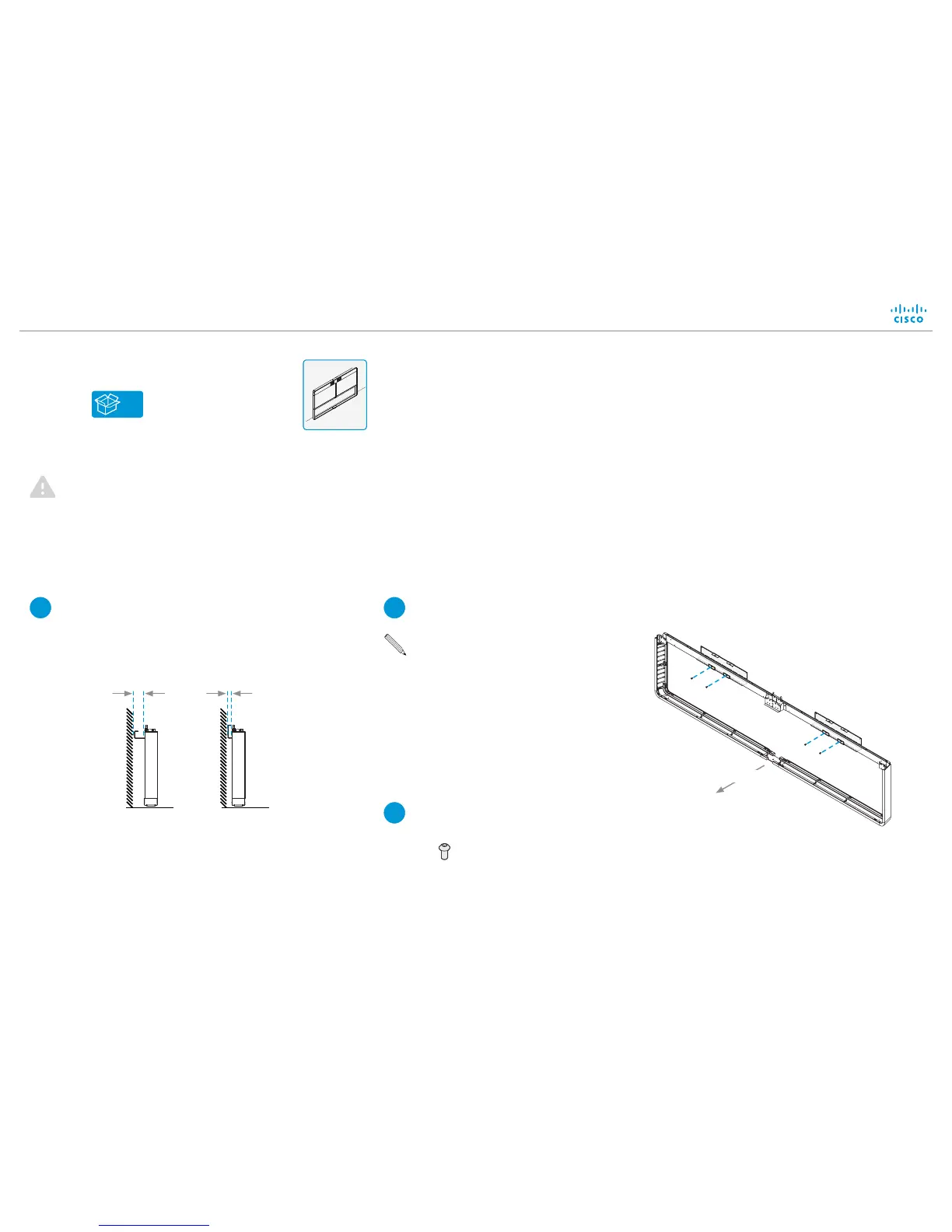

Mounting positions, side view
94 mm / 3.70 in. 37 mm / 1.46 in.
C
The system must be installed by qualified
personnel, in accordance with state and
local building regulations.
The wall and mounting hardware must be
able to safely support the product.
The wall brackets have two mounting positions.
Position the brackets the way that suits your
room the best.
1
4 × M6x12, pan
Front
2
Mark the screw holes on the wall. The screws pass through
the horizontal slots on the wall bracket.
Hold the wall bracket towards the wall
and place the floor stand on the wall
bracket. Move them in place and mark
the screw holes on the wall. Repeat for
the other wall bracket.
Fasten each wall bracket in a secure
manner ensuring that the wall’s structure
is sufficient to support the system
(screws/mounting hardware not provided;
not shown in illustration).
Fasten the floor stand to the wall brackets with
the four screws (provided).
3
Option B:
Use the wall brackets provided to secure the floor stand to the wall.

Cisco TelePresence MX200 G2 Specifications

General

Resolution	1920 x 1080
Network	10/100/1000 Ethernet
Product Type	Video conferencing system
Display Size	42 in
Camera	PrecisionHD 1080p Camera
Codec	Cisco TelePresence Codec
Video Inputs	HDMI, DVI-I
Video Outputs	HDMI
Control	Cisco Touch 10
Video Standards	H.264
Connectivity	HDMI
Codec Support	H.264
Resolution (fps)	1080p30
