UCSM Non-Standalone I/O Throttle Count Configuration
The I/O Throttle Count for non-standalone servers is configured through the UCSM GUI or equivalent UCSM XML commands.
The I/O Throttle Count parameter is configurable in the Linux and VMWare FC Adapter Policies.

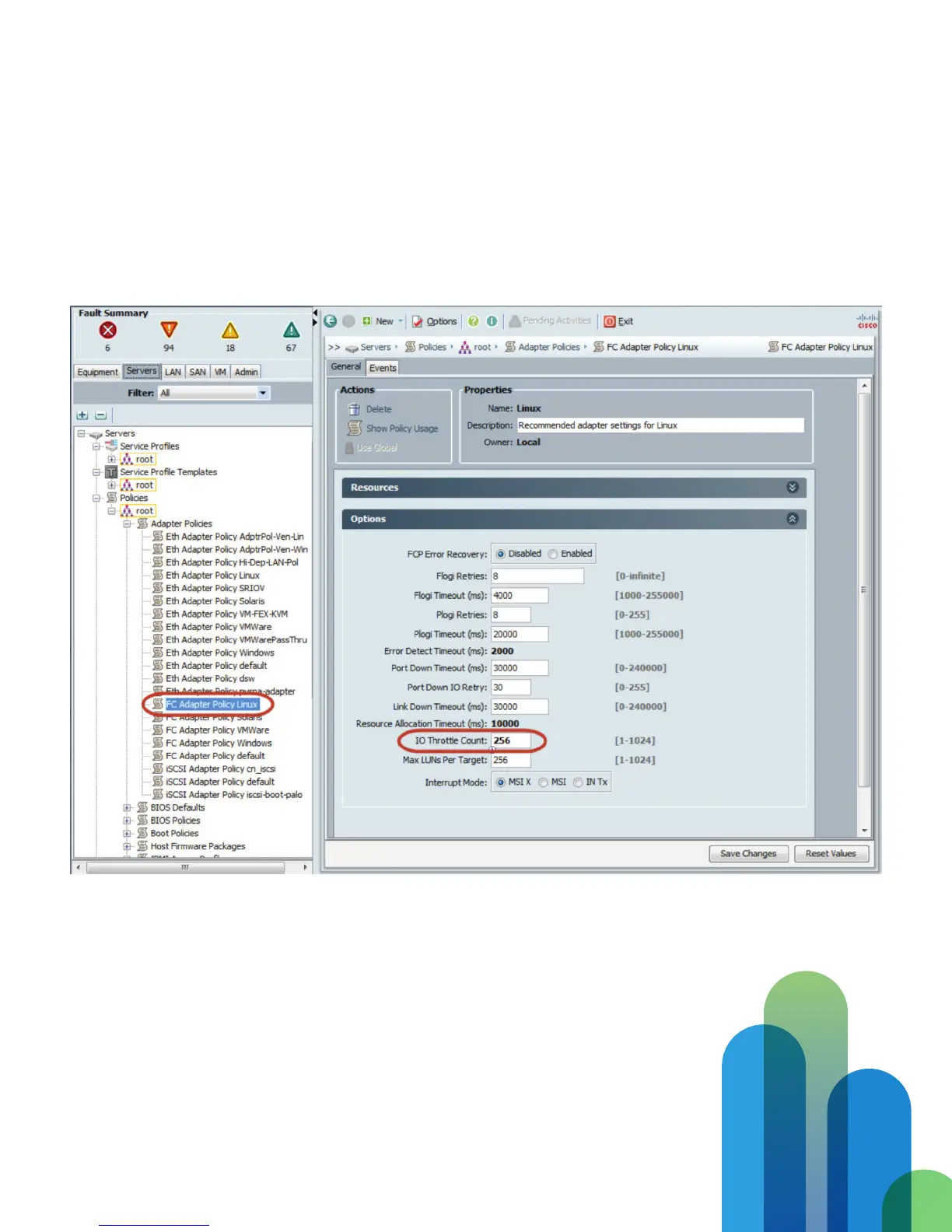

To change the I/O Throttle Count parameter, in the UCSM navigation tree, click the Servers tab, then expand the Policies and
Adapter Policies in the navigation tree. Click the FC Adapter Policy Linux or FC Adapter Policy VMWare, and then, in the main
window, expand the Options drop-down. Configure the I/O Throttle Count field per the list of parameter values above, and then
click the Save Changes button.

Cisco UCS 5108 Specifications

General

Number of Blade Slots	8
I/O Module Bays	2
Supported Blade Servers	Cisco UCS B-Series Blade Servers
Power Supply Options	Up to four hot-swappable power supplies (AC or DC)
Cooling	Redundant hot-swappable fans
Management	Cisco UCS Manager
Blade Slots	8
Fabric Interconnects	Cisco UCS 6100 or 6200 Series
Power Supplies	Up to 4 hot-pluggable power supplies
Form Factor	6RU rack-mountable
