Cisco UCS B22 M3 Installation And Service Note

Air Baffles

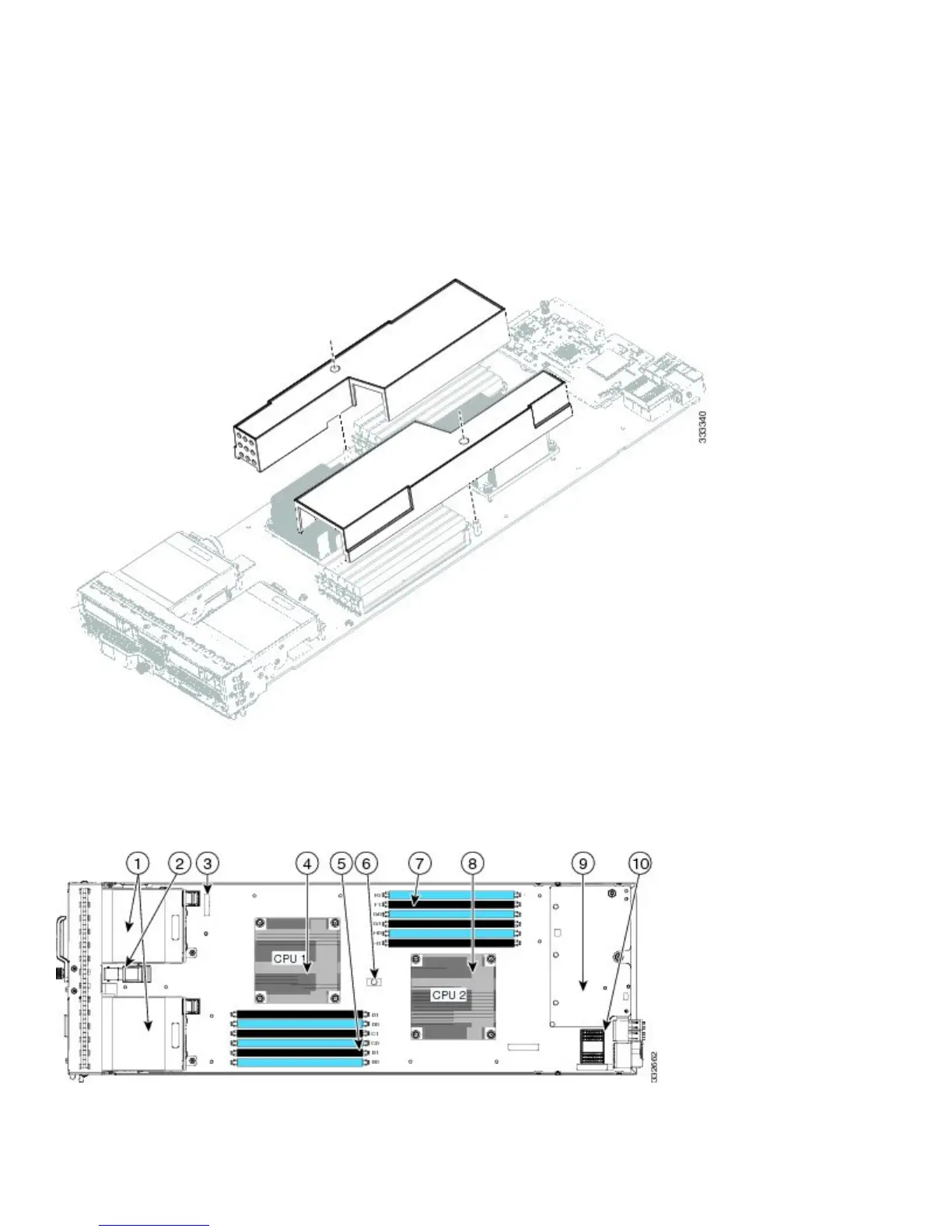

The air baffles (UCSB-BAFF-B22-M3=) shown ship with this server, as they direct and improve air flow for the server components.
No tools are necessary to install them, just place them over the DIMMs as shown, aligned to the standoffs.
Figure 8: Cisco UCS B22 Air Baffles
Internal Components
Figure 9: Inside View of the B22 Blade Server
12
