Cisco UCS C220 M3 Quick Start Guide

7
Cisco Security Manager 4.3 UCS Server Bundles Quick Start Guide
78-21007-01
Windows Activation, Product Key, and EULA
• To change the Security Manager admin username/password: In Security Manager, select Tools >
Security Manager Administration > Server Security, then click Local User Setup.
Security Manager casuser:
• Default casuser username/password: casuser/[Note: password is generated by Security Manager
during installation]
• To reset the casuser password, follow the procedure for resetCasuser.exe in the Installation Guide
for Cisco Security Manager 4.3 at
http://www.cisco.com/en/US/products/ps6498/prod_installation_guides_list.html.
Windows Activation, Product Key, and EULA
Activation of the OS [Microsoft Windows Server 2008 R2 SP1 Enterprise (64-bit)] must be done by you
before the activation period expires. To activate the OS, use the Microsoft Certificate of Authenticity
(COA) label; the COA label is placed on the recovery media provided with your new Bundle. For more
information on activating the OS, refer to “Product Activation,” published by Microsoft at the following
URL: http://www.microsoft.com/windowsserver2008/en/us/product-activation.aspx.
You can view your product key by using normal Microsoft procedures: On the Control Panel, select
System and refer to the information under “Windows Activation.”

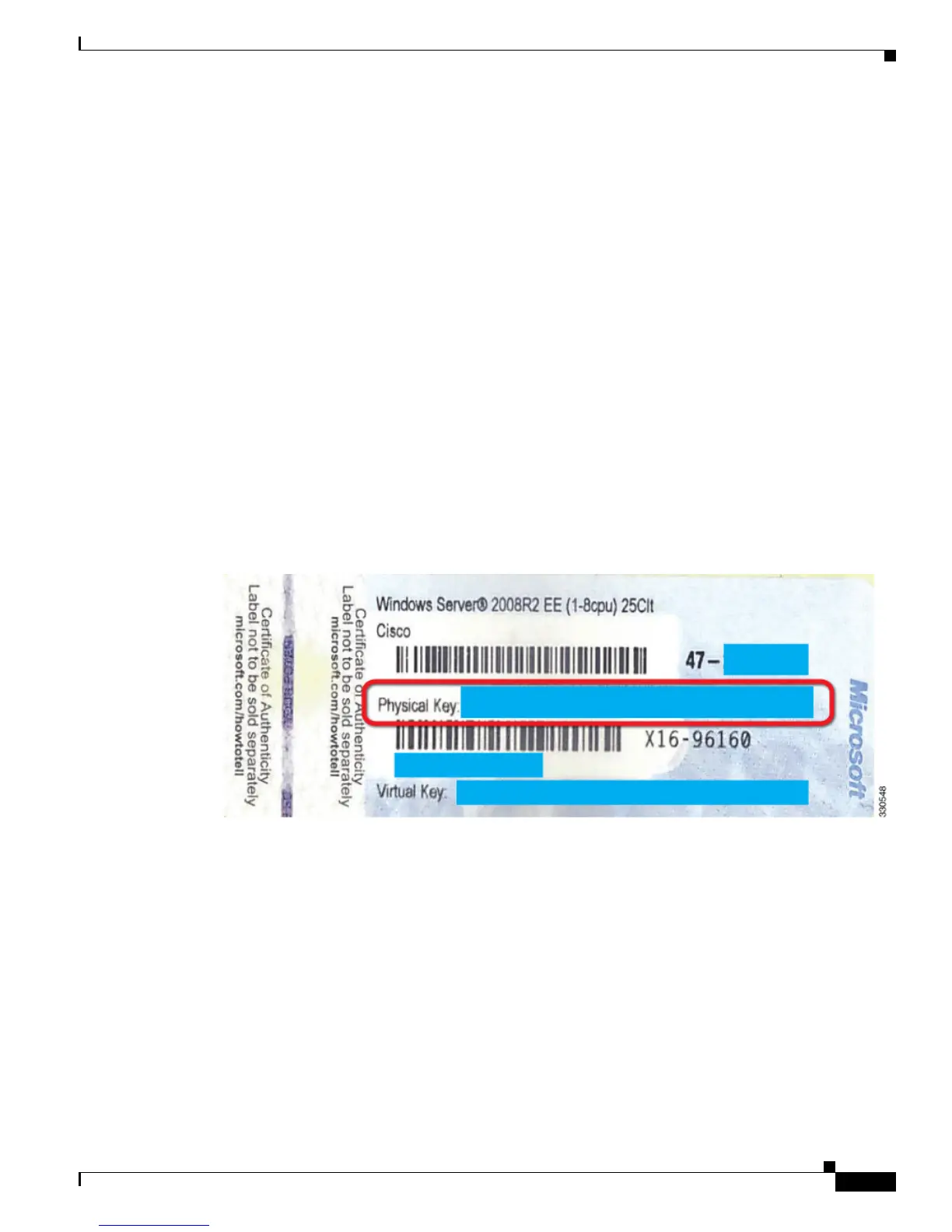

To activate the OS, use the Physical Key. Do not use the Virtual Key. Refer to the following illustration.
The Windows EULA (end user license agreement) is described in a printed document that you will find
packed in your shipping carton.
Windows Drivers for the UCS Server
The required Windows UCS drivers are pre-installed in your new Bundle.
If necessary, you can download these drivers at the following URL:
http://www.cisco.com/cisco/software/type.html?mdfid=284296253&i=rs

Cisco UCS C220 M3 Specifications

General

Tcase	70 °C
Bus type	QPI
Stepping	M1
FSB Parity	No
Scalability	2S
Processor cache	10 MB
Processor cores	4
System bus rate	6.4 GT/s
Processor series	Intel Xeon E5-2600
Processor socket	LGA 2011 (Socket R)
Processor codename	Sandy Bridge EP
Processor frequency	2.4 GHz
Processor cache type	Smart Cache
Processor manufacturer	Intel
Processor package size	52.5 x 45.0 mm
Processor front side bus	- MHz
Processor boost frequency	2.50 GHz
Processor operating modes	64-bit
ECC supported by processor	Yes
Graphics & IMC lithography	32 nm
PCI Express configurations	x4, x8, x16
Supported instruction sets	AVX
Thermal Design Power (TDP)	80 W
Number of processors installed	2
CPU multiplier (bus/core ratio)	24
Physical Address Extension (PAE)	46 bit
Maximum number of PCI Express lanes	40
Memory types supported by processor	DDR3-SDRAM
Memory channels supported by processor	Quad
Memory clock speeds supported by processor	800, 1066 MHz
Memory bandwidth supported by processor (max)	34.1 GB/s
Maximum internal memory supported by processor	750 GB
HDD size	2.5 \
HDD interface	-
Total storage capacity	500 GB
Compatible memory cards	SD
Maximum storage capacity	- TB
Memory slots	16
Internal memory	32 GB
Memory clock speed	1866 MHz
Maximum internal memory	- GB
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports	3
Chassis type	Rack (1U)
Power supply	450 W
Safety	UL 60950-1 No. 21CFR1040, CAN/CSA-C22.2 No. 60950-1, IEC 60950-1, EN 60950-1, IEC 60950-1, AS/NZS 60950-1, GB4943 2001
Certification	47CFR Part 15 (CFR 47), AS/NZS CISPR22, CISPR2 2, EN55022, ICES003, VCCI, EN61000-3-2, EN61000-3-3, KN22, CNS13438, EN55024, CISPR24, EN300386, KN24
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 12000 m
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 93 %
Operating relative humidity (H-H)	10 - 90 %
PCI Express slots version	3.0
Processor ARK ID	64588
Intel Secure Key Technology version	1.00
Intel Identity Protection Technology version	0.00
Harmonized System (HS) code	84714100

Weight and Dimensions

Depth	724 mm
Width	430 mm
Height	43.2 mm
