4

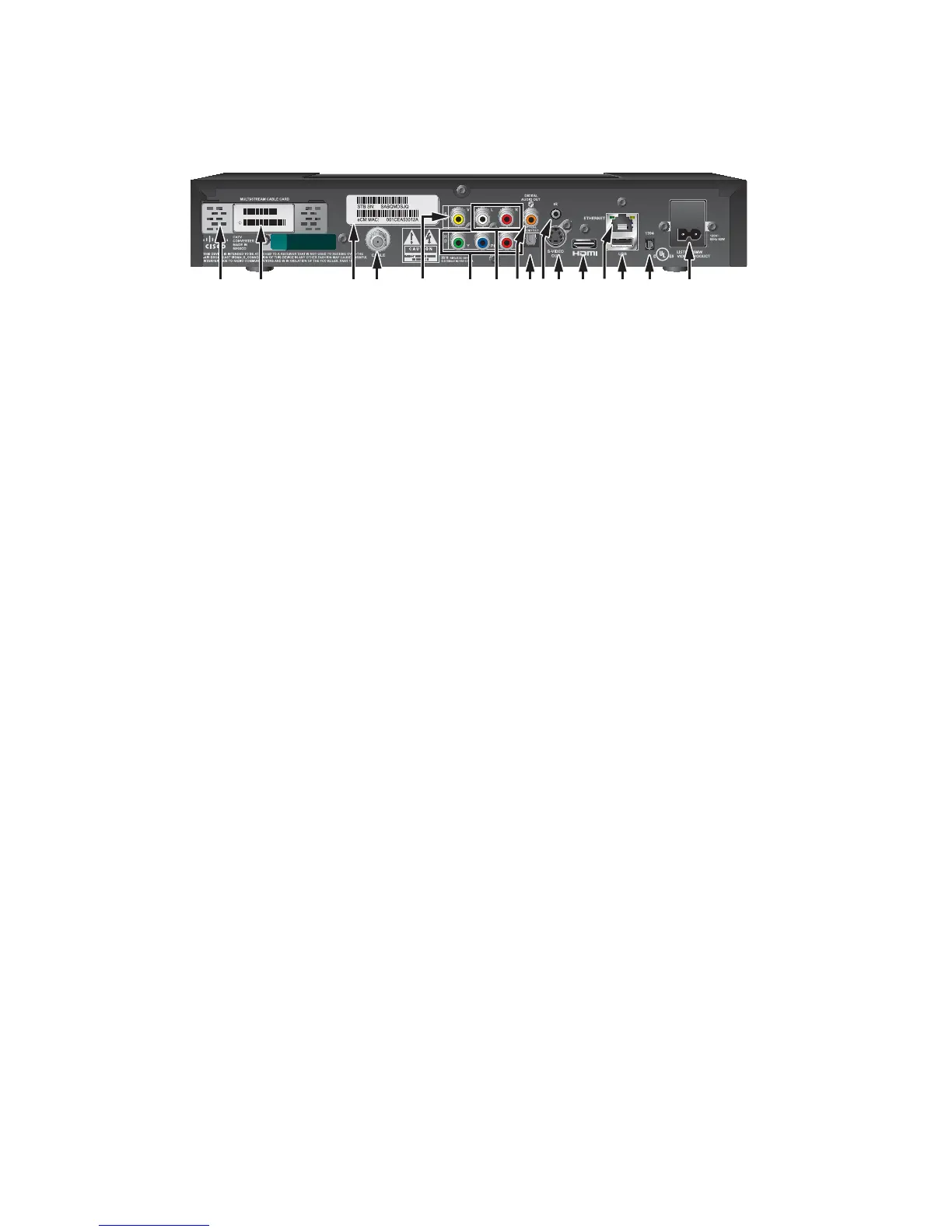

Back Panel Connectors
1 Multi-Stream Installed by your service provider
CableCARD
2 M-Card Label Contains M-Card serial number and MAC address
3 Bar Code Label Contains set-top serial number and MAC address
4 Cable In Connects to a coaxial cable that delivers the signal from your service provider
5 Video Out Connects to the composite input on your TV
6 HDTV Component Connects to the YPbPr inputs on an HDTV. Do not use these connectors if you are using
Output (YPbPr) the HDMI connection
7 Primary Stereo Connects to the RCA left\right audio input on an SDTV
RCA Output
8 Digital Audio Out Connects to the digital audio input of a surround sound receiver or other digital audio device
9 Optical Audio Out Connects to an optical cable that sends a digital audio signal to a surround-sound receiver
or other digital audio device
10 IR Available to be connected to an approved remote IR receiver (or to IR Blaster purchased
separately). Please contact your service provider for details
11 S-Video Out Connects to S-Video input of a standard TV or VCR
12 HDMI Connects an HDMI™ cable to the HDMI input of an HDTV. HDMI supports both digital audio
and video. May be used to connect to a DVI interface using an HDMI-to-DVI adapter for video
and separate audio connections. Any of the following audio connections may be used:
Primary Stereo RCA Output (7); Digital Audio Out (8); or Optical Audio Out (9)
13 Ethernet Connects to an Ethernet network
14 USB Connects to external USB devices such as a keyboard or mouse
15 1394 Connects to display devices equipped with a 1394 input
16 AC Power Input Connects to the power cord to deliver power to the set-top (50W max)
Note: This illustration may vary from the actual product.
M-CARD MAC: 001BD746C7CB
M-CARD SN: PKCPTMFDV
T13673
12 4 5 63891110 12 14 1513 167
