Cisco Xfinity RNG150N User Manual

13

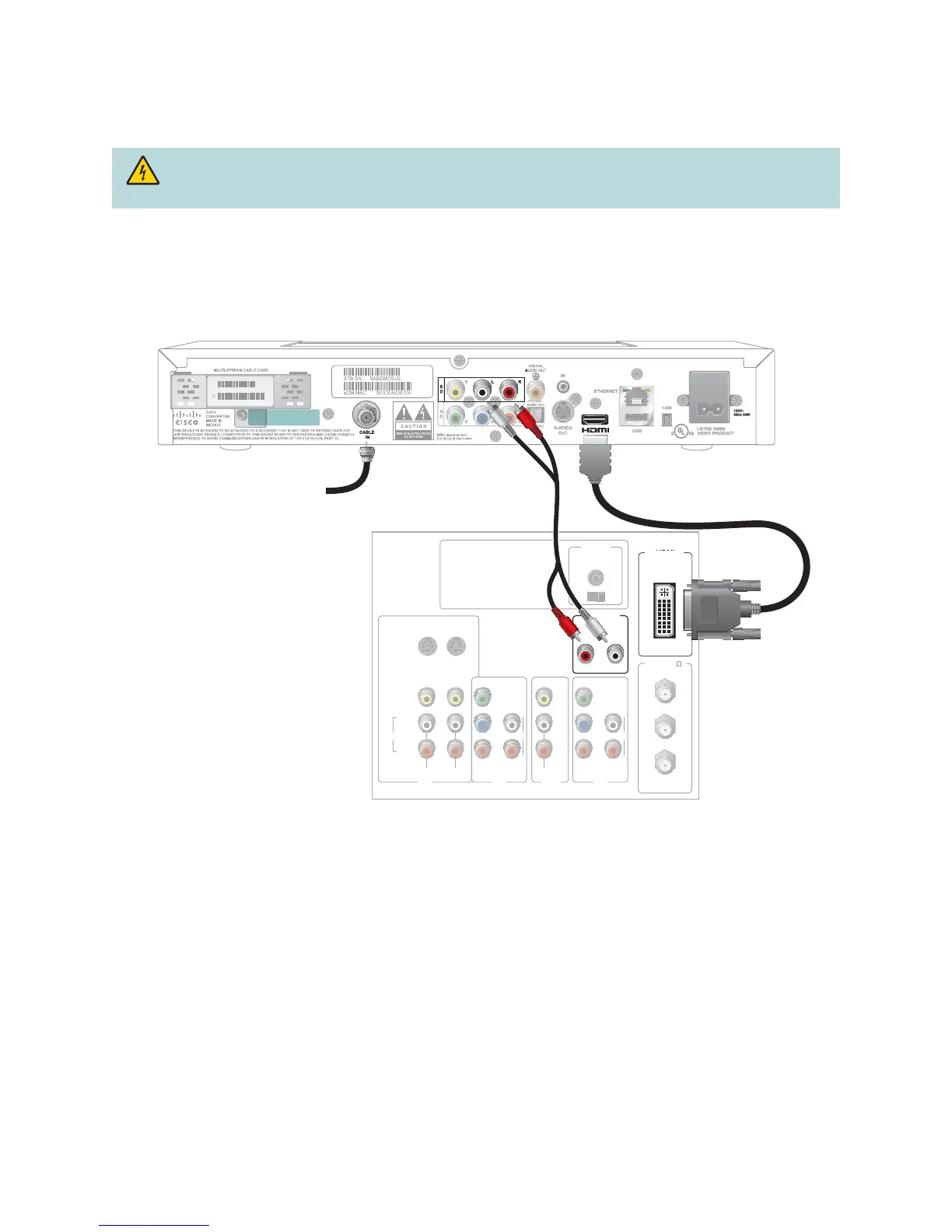

Connecting to an HDTV with a DVI Connector
Notes:
• When you connect the HDMI connector to the DVI connector on your HDTV, you need an HDMI-to-DVI adaptor and
a separate audio connection.
• Digital content is encrypted with High-Bandwidth Content Protection (HDCP) on the DVI/HDMI port. This set-top is
not compatible with devices that do not support HDCP. You must use either the YPbPr or 1394 connection (which
uses Digital Transmission Content Protection, or DTCP) to connect the set-top to these devices.
• Also refer to the Important Notes Regarding the HDMI Interface on the Set-top on page 12.
RNG150
M
-
C
ARD MA
C
:
00
1BD74
6C
7
C
B
M
-
C
ARD
S
N: PK
C
PTMFD
V
HDMI
AUDIO
CENTER
CHANNEL IN
AUDIO IN
DVI/HDCP
ANT (75 )
INOUT
LR
ANT-1
HD 2
Y
OUT
ANT-2
PB
PR
L
R
VIDEO
L/
MONO
R
L/
MONO
R
AUDIO
IN
ON OFF
IN
HD 1
S-VIDEO
VIDEO
Y
PB
PR
L
R
AUDIOAUDIO
DVI/HDCP
IN
AUDIO IN
DVI/HDCP
LR
Cable Input
T13776
Back of HDTV
WARNING: Electric shock hazard! Unplug all electronic devices before connecting or disconnecting
any device cables to the set-top.
Required cables:
• 1 HDMI-to-DVI or 1 HDMI cable and 1 DVI adapter
• 1 audio Left/Right cable
