Line Card Cable-Management Bracket
The cable-management system consists of two separate components:
1. A cable-management tray that is mounted on the chassis. Refer to the appropriate Cisco XR 12000
Series Router installation and configuration guide for more information on the cable-management
tray.
2. A cable-management bracket that attaches to a line card.

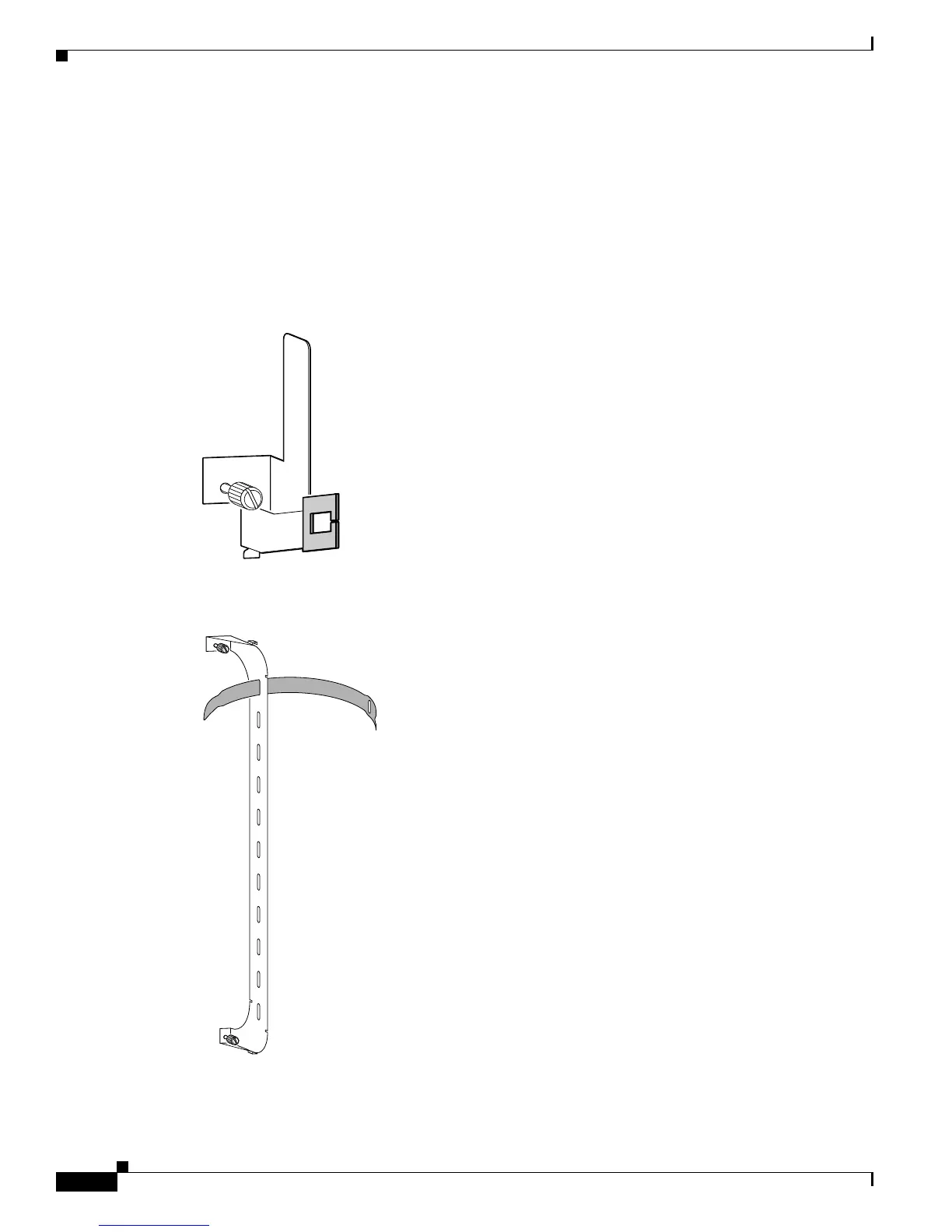

This section describes the line card cable-management bracket. Figure 30 shows the single-port line card
cable-management bracket; Figure 31 shows the multiport line card cable-management bracket.
Figure 30 Single-Port Line Card Cable-Management Bracket
Figure 31 Multiport Line Card Cable-Management Bracket
93237
93238
